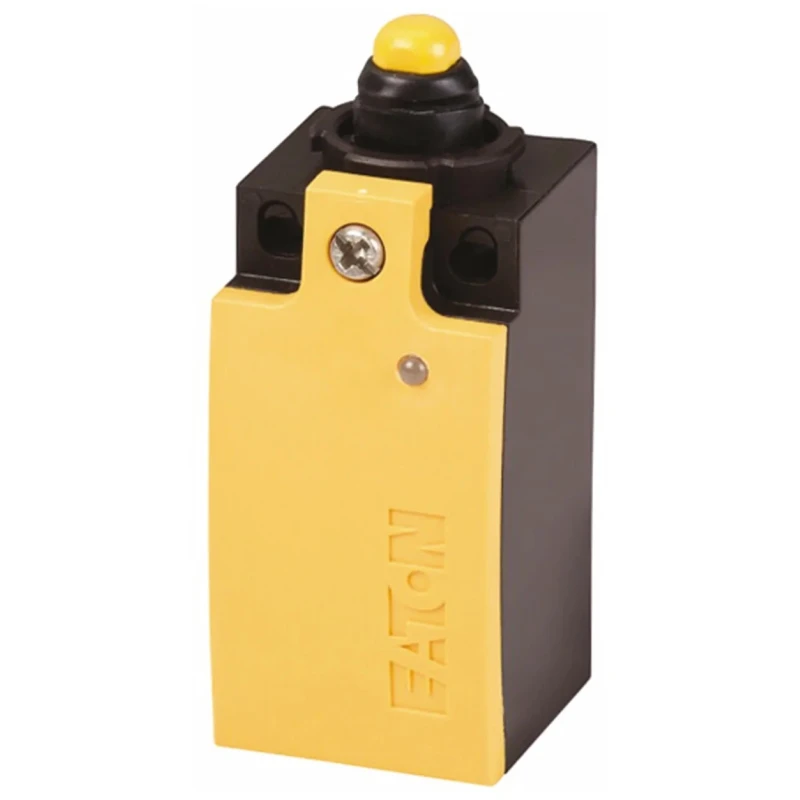

Eaton LS-Titan Series Plunger Limit Switch, Plastic Housing, IP66/IP67, 1 NO/1 NC, 19mA, 266121 LSE-11

The Eaton LS-Titan Series Plunger Limit Switch, model 266121 LSE-11, is a compact industrial device designed for position sensing and machine safety in a variety of applications. Featuring a robust plastic enclosure, this switch delivers high protection ratings of IP66 and IP67, making it suitable for harsh environments that require resistance to dust, water, and mechanical impacts.

With a plunger actuator and slow action contact mechanism, this limit switch provides reliable switching performance for control systems. The contact configuration offers one normally open (NO) and one normally closed (NC) contact, ideal for redundancy and fail-safe operation in industrial automation, safety interlocks, and material handling equipment.

Designed for easy installation, the LS-Titan series includes maintenance-free cage clamp terminals that are vibration-proof, ensuring stable electrical connections during operation. The compact housing measures 76 mm in length, 33.5 mm in width, and 31 mm in depth, allowing for flexible mounting options in space-constrained control panels.

This model operates within a wide temperature range from -25°C to 70°C, making it suitable for both indoor and outdoor use in demanding commercial and manufacturing settings. The switching DC voltage capacity is rated at 30V, with a switching current of 19mA, supporting integration with low voltage and signal-based control circuits.

Engineered to comply with EN/IEC standards, the Eaton LS-Titan plunger limit switch guarantees electrical safety and performance. The mechanical life expectancy is up to three million operations, reflecting its suitability for continuous-duty and heavy-duty applications.

In addition to standard industrial uses, the switch finds applications in escalators, food and beverage processing lines, electrical assembly machinery, and material handling systems. LSE versions in the series feature electronically adjustable operating points and visible status displays, further enhancing operational versatility.

This limit switch offers operators reliability, fast response, and adaptability. The high protection rating prevents ingress of particles and fluids, ensuring longevity and operational continuity under challenging environmental conditions. Operating force requirement is 8N, providing tactile feedback while minimizing accidental actuations.

Whether deployed in manufacturing, automation, or HVAC systems, the Eaton LS-Titan 266121 LSE-11 limit switch stands out for industrial-grade safety, ergonomic design, and maintenance simplicity.
