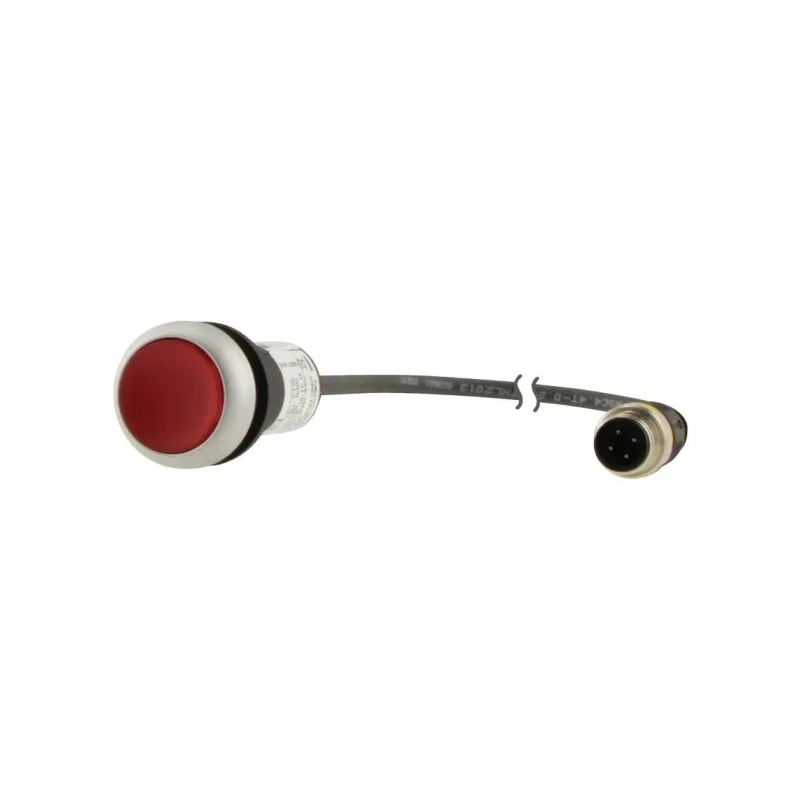

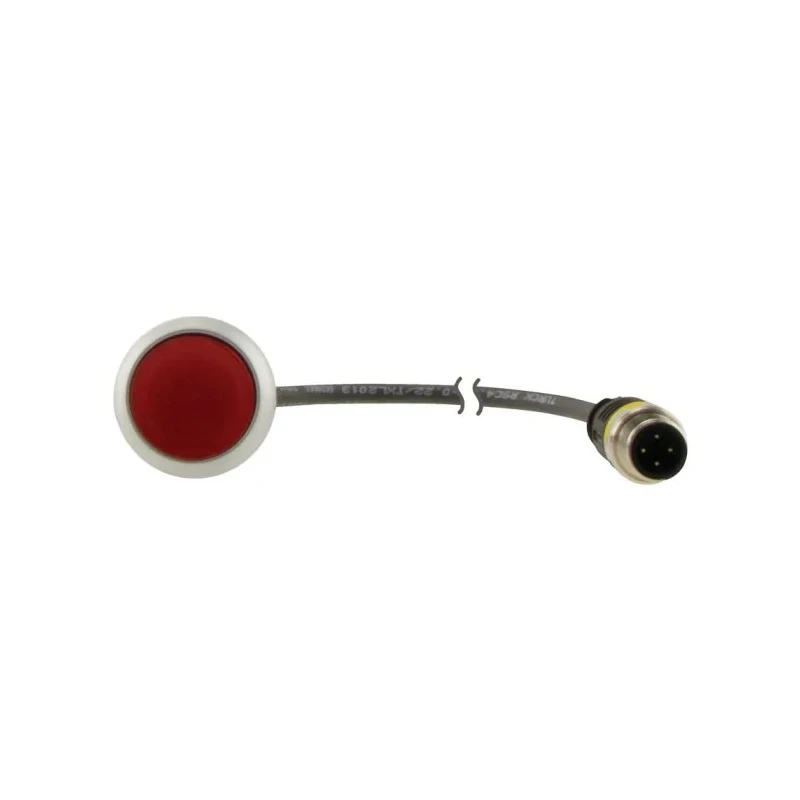

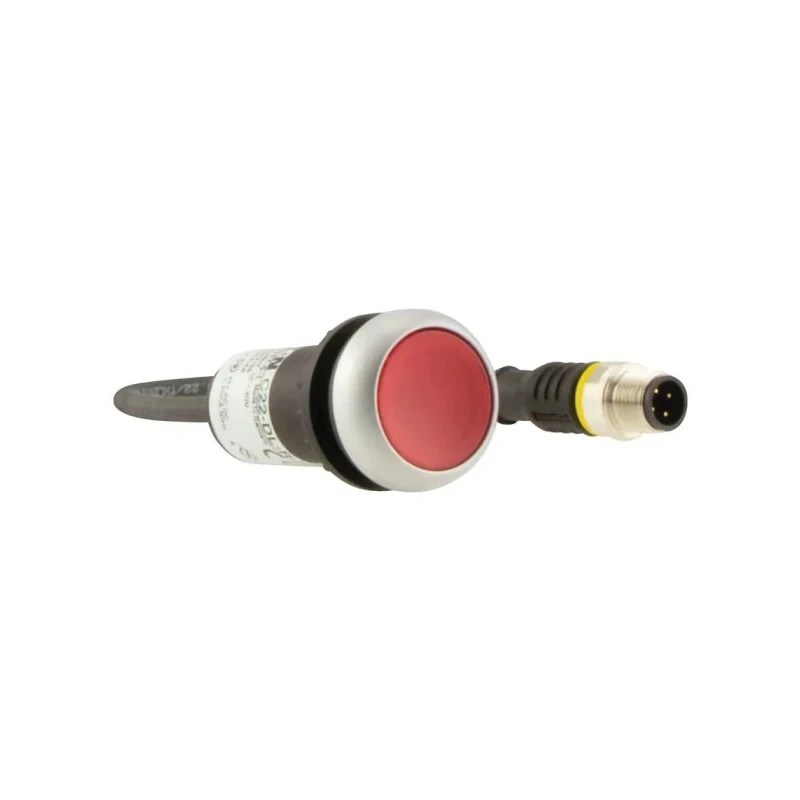

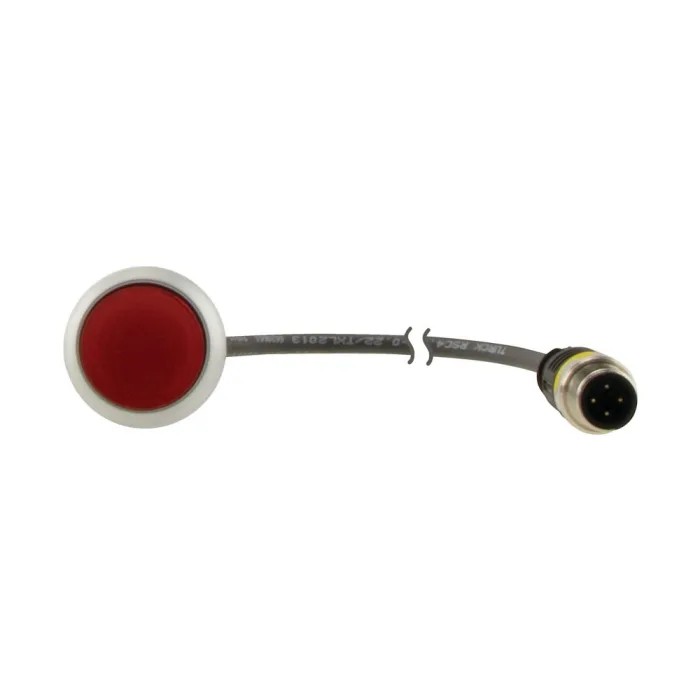

Eaton C22 Series Illuminated Push Button Actuator Panel Mount 22 mm Cutout Red SPST IP67 IP69K 181630 C22-DRL-R-K01-24-P3

The Eaton 181630 C22-DRL-R-K01-24-P3 is an illuminated push button actuator from the C22 series designed for panel mounting with a 22 mm cutout. It features a red, round push button and is configured with a Single Pole Single Throw (SPST) contact configuration, tailored for reliable industrial control applications.

Constructed with robust plastic materials for both the body and the push button, this actuator is engineered to resist corrosion and endure heavy-duty usage. It includes an integrated LED illumination system operating at 24V ac/dc, providing bright, clear indication and an extended LED life span up to 100000 hours.

Designed for maintained actuation, the push button supports applications requiring the button to remain engaged until manually released. The screw terminal type connection ensures secure and dependable electrical contacts.

Operating reliably in harsh environments, it supports a temperature range from -25°C to 70°C and is protected to IP67 and IP69K ratings, making it suitable for applications exposed to dust, water jets, and high-pressure washdowns.

Certified to meet multiple international safety and performance standards including VDE 0660, CSA, CE, CE marking, NKCR, IEC/EN0947-5-1, and UL, this actuator guarantees compliance and safety in critical industrial settings. The product is manufactured in Germany, ensuring stringent quality standards.

The push button features LED illumination with a voltage of 24V ac/dc for clear visibility. Constructed with plastic body and button materials for corrosion resistance. Designed to operate within a temperature range of -25°C to 70°C for versatile industrial applications.

Rated with IP67 and IP69K ingress protection for robust environmental sealing. Terminal connections are screw type ensuring secure and reliable electrical contact. This actuator supports maintained push button actuation with a round button style and shape.

Complies with multiple international standards including VDE 0660, CSA, CE, NKCR, IEC/EN0947-5-1, and UL approvals. Manufactured in Germany ensuring high quality and durability.

This Eaton C22 series illuminated push button actuator is ideal for use in industrial controls, automation systems, machinery operation stations, and panel mounting applications requiring reliable visual indications and rugged construction. Explore EnvMart for more advanced Push Button Actuators and components from Eaton and other leading manufacturers.
