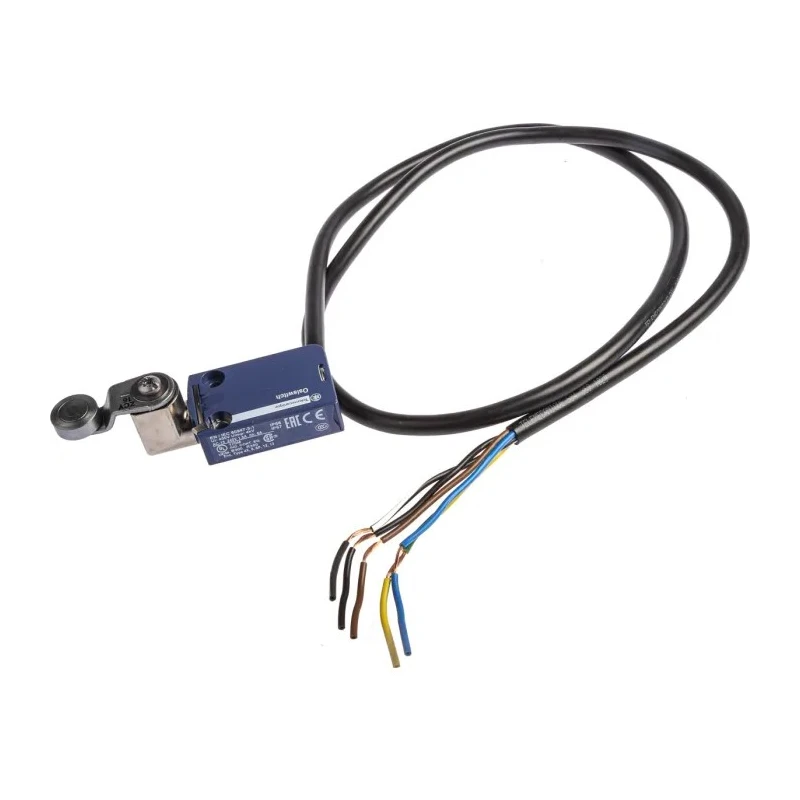

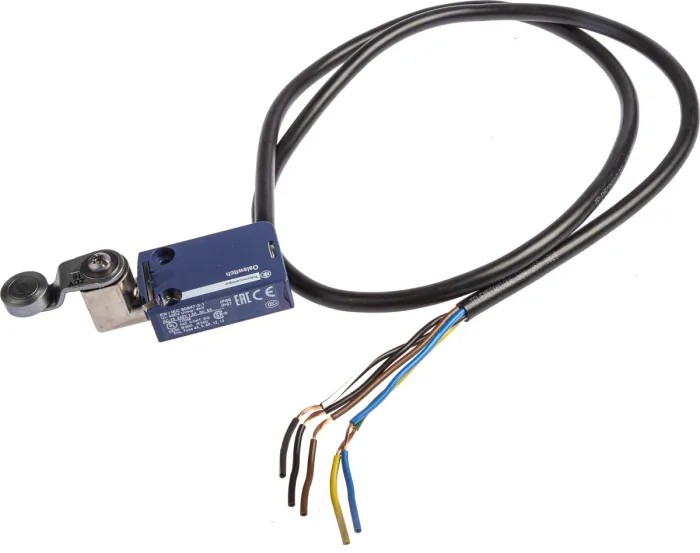

Telemecanique Sensors OsiSense XC Series Roller Lever Limit Switch, 1 NO/1 NC, IP68, IP67, IP66, Zinc Alloy XCMD2116L1

Telemecanique Sensors XCMD2116L1 roller lever limit switch from the OsiSense XC series is designed for high reliability and versatility in industrial, automation, and manufacturing environments. Its compact zinc alloy housing ensures robust performance, resisting corrosion and mechanical wear even in harsh and demanding locations.

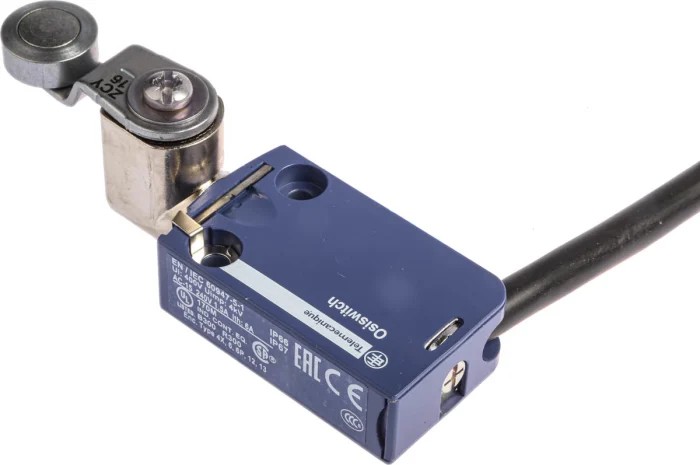

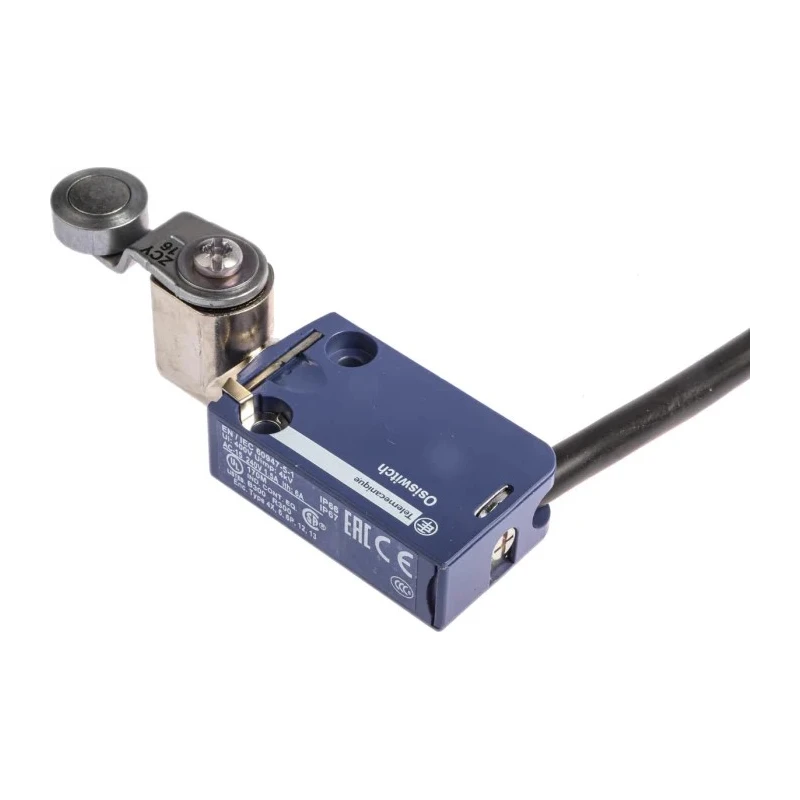

This limit switch features a roller lever actuator, providing accurate position detection for moving mechanical parts, conveyor systems, robotics, and safety interlocks. The snap action mechanism ensures quick and consistent switching, utilizing 1 normally open (NO) and 1 normally closed (NC) contact configuration to support flexible control wiring and circuit protection requirements.

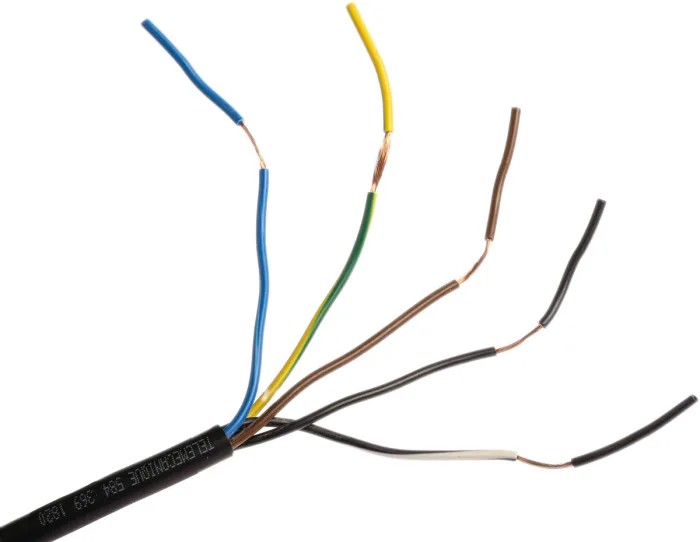

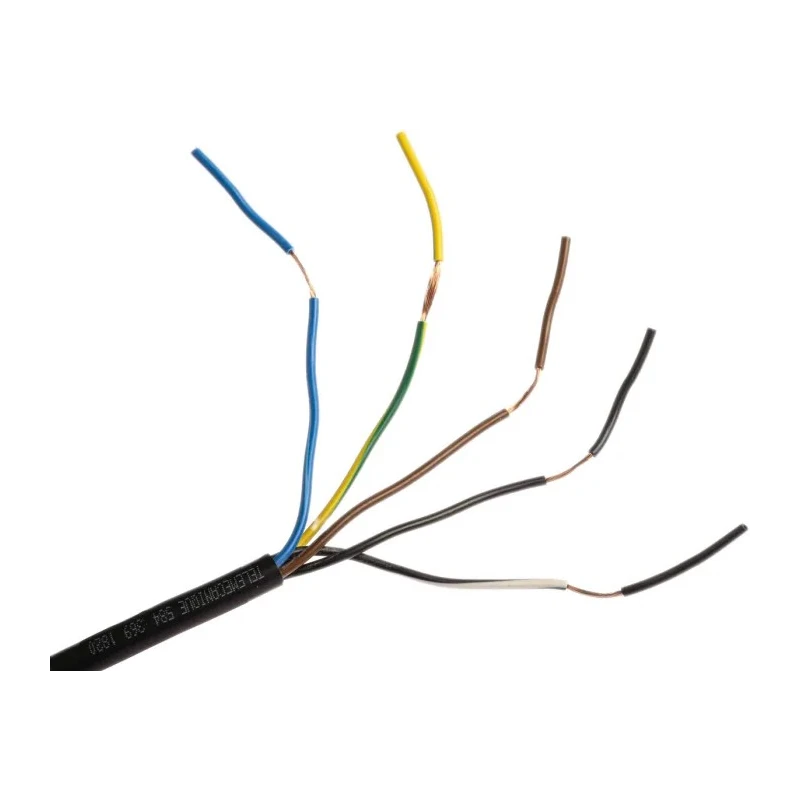

With IP68, IP67, and IP66 ingress protection ratings, the XCMD2116L1 is suitable for environments exposed to dust, water jets, immersion, or general moisture, making it ideal for process machinery, outdoor installations, and food industry equipment. Its cable terminal supports easy integration into electrical panels, while the pre-wired design and interchangeable heads significantly reduce installation and maintenance time.

The switch is compatible with a wide electrical range - rated 3A switching current and supports up to 250V DC and 240V AC voltages - facilitating operation across both DC and AC industrial systems. The unit delivers reliable operation from -25°C to 70°C, enabling continuous use in refrigerated or heat-intensive production environments.

Mechanical durability is a standout, rated for up to 10 million switching cycles, ensuring long service life and minimizing downtime. The compact dimensions (50mm length, 30mm width, 16mm depth) allow installation where space is limited, and the 0.5Nm operating force ensures dependable actuation without excessive load requirements.

Typical use cases include position sensing in conveyor lines, CNC machinery, material handling systems, packaging equipment, and automated safety interlocks. The switch conforms to major approvals such as UL, REACH, IEC, CSA, CCC, and RoHS, ensuring compliance with international quality and safety standards.
