Telemecanique Sensors 9007 Series Roller Plunger Limit Switch SPDT IP67 Die Cast Zinc Housing 240V AC 6A 9007MS02S0100

Free Delivery in India | Lowest Global Shipping Charges

Telemecanique Sensors 9007 Series Roller Plunger Limit Switch SPDT IP67 Die Cast Zinc Housing 240V AC 6A 9007MS02S0100

Name: Telemecanique Sensors 9007 Series Roller Plunger Limit Switch SPDT IP67 Die Cast Zinc Housing 240V AC 6A 9007MS02S0100
Brand: Telemecanique Sensors
SKU: 169816
Price: 124.17 USD
Availability: InStock



Category Limit Switch Brand Telemecanique Sensors Condition New

Specifications

Country of Origin	India
Brand	Telemecanique Sensors
Length	15.7mm
Model	9007MS02S0100
Depth	25.4mm
IP Rating	IP67
Width	25.4mm
Housing Material	Die Cast Zinc
Series	9007
Maximum Operating Temperature	105°C
Mounting Orientation	Several
Contact Configuration	SPDT
Actuator Type	Roller Plunger
Contact Type	Snap Action
Minimum Operating Temperature	-40°C
Switching Current	6A
Terminal type	Cable
Standards/Approvals	UL, RoHS, REACH, CSA, CE
Mechanical Life	10000000Operations
Switching DC Voltage	28V dc
Switching AC Voltage	240V ac

Key Features

The actuator type is a roller plunger for precise control.
Contact configuration is SPDT with snap action contacts.
Rated switching current of 6 amperes supports moderate power loads.
Suitable for operation within temperature range -40°C to 105°C.
Housing provides IP67 ingress protection for harsh environments.
Mechanical life expectancy is 10 million operations for durability.
Terminals are cable-type for flexible connection options.
Standards compliance includes UL, RoHS, REACH, CSA, and CE certifications.

Product Description

Telemecanique Sensors 9007MS02S0100 series roller plunger limit switch is engineered for reliable industrial control applications. Featuring a robust die cast zinc housing and an IP67 ingress protection rating, it withstands harsh conditions including dust and water exposure. The roller plunger actuator ensures accurate and repeatable switching with a SPDT snap action contact configuration supporting a switching current of 6A at 240V AC.

Designed for flexible installation, this limit switch supports several mounting orientations and includes cable-type terminals for straightforward wiring. Its compact dimensions of 25.4mm width, 25.4mm depth, and 15.7mm length enable easy integration into machinery and process lines. The device offers a wide operating temperature range from -40°C up to 105°C, ensuring performance across demanding environments.

The mechanical lifespan of 10 million operations highlights exceptional durability suited for heavy-duty industrial, construction, manufacturing, and machine tooling applications. The product meets international standards including UL, RoHS, REACH, CSA, and CE, confirming compliance and safety.

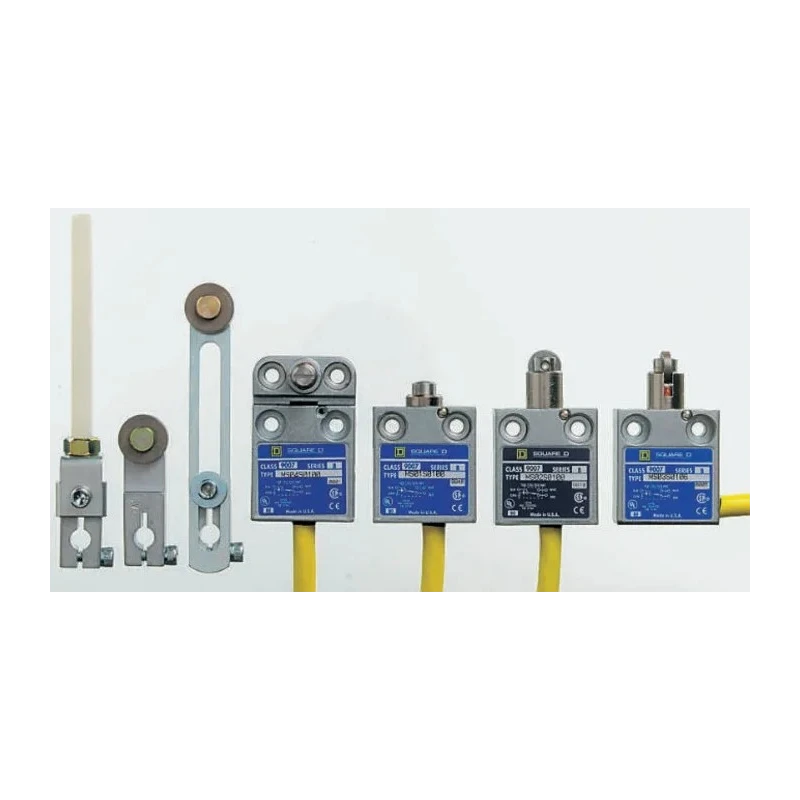

This limit switch is ideal for precise position sensing and control in assembly lines, earth-moving equipment, refuse vehicles, and automated manufacturing processes. Bottom and side entry cable options accommodate varying system designs. For extended actuator configurations, compatible lever arm actuators are available.

The actuator type is a roller plunger for precise control. Contact configuration is SPDT with snap action contacts. Supports switching currents up to 6 amperes at 240 volts AC. IP67-rated die cast zinc housing for robust protection.

Mechanical life rated for 10 million operations. Compliance with UL, RoHS, REACH, CSA, and CE standards. Flexible mounting orientations suited for diverse industrial equipment. Cable terminal type for reliable electrical connections.

Compact dimensions: 25.4mm width, 25.4mm depth, 15.7mm length. Wide operating temperature range of -40°C to 105°C. Explore our comprehensive range of Limit Switches and sensors on EnvMart for all industrial automation needs.
