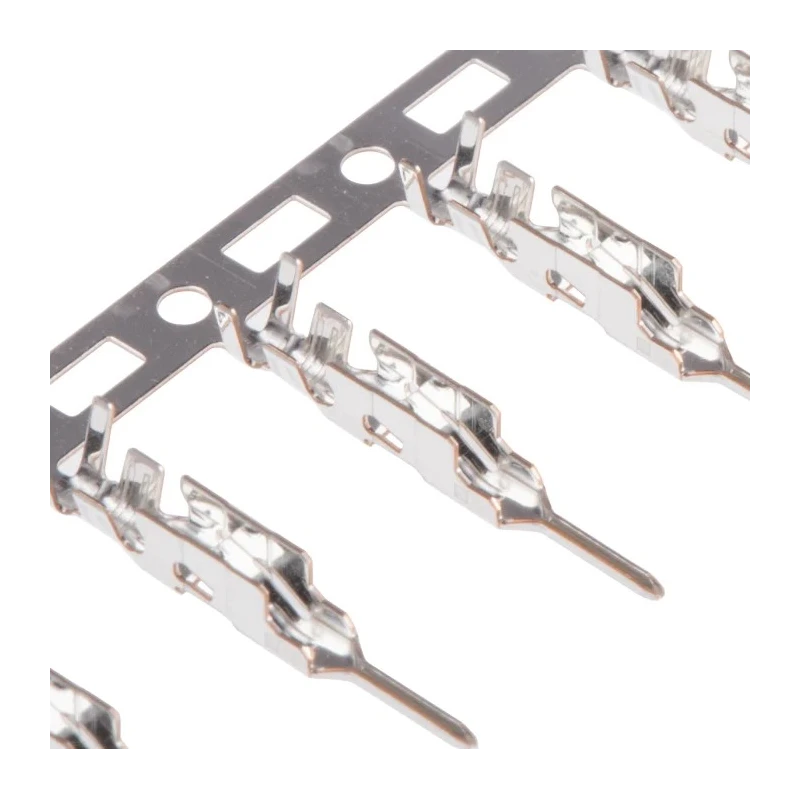

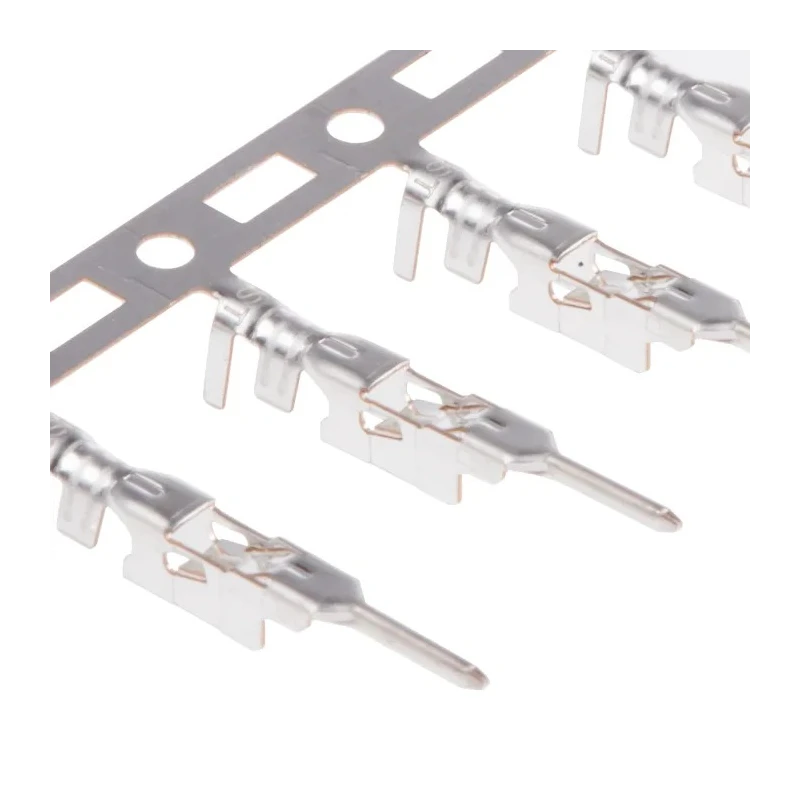

JST XA Series Male Crimp Terminal 3A, Phosphor Bronze, Tin Plated, 24–20 AWG SXAM-01T-P0.6

Free Delivery in India | Lowest Global Shipping Charges

JST XA Series Male Crimp Terminal 3A, Phosphor Bronze, Tin Plated, 24 - 20 AWG SXAM-01T-P0.6



Category Crimp Terminal Brand JST Condition New

Specifications

Country of Origin	Malaysia
Brand	JST
Current	3A
Model	SXAM-01T-P0.6
Gender	Male
Contact Material	Phosphor Bronze
Series	XA
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-25°C
For Use With	XA, XAD and XAG Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Male crimp terminal designed for electrical connection applications.
Supports minimum wire size of 24 AWG and maximum wire size of 20 AWG.
Rated for a current up to 3A for reliable performance.
Manufactured from durable phosphor bronze with tin plating for corrosion resistance.
Suitable for use with XA, XAD, and XAG connector housings in PCB connections.
Contact resistance up to 20mΩ ensures stable electrical characteristics.
Operating temperature range from -25°C to 105°C for industrial applications.
Termination type is crimp, ideal for automated or manual insertion processes.

Product Description

JST SXAM-01T-P0.6 XA Series Male Crimp Terminal is engineered for secure and reliable electrical connections in industrial and electronic assemblies. This terminal is part of the JST XA series and is compatible with XA, XAD, and XAG connector housings.

With a minimum wire size compatibility of 24 AWG and a maximum of 20 AWG, the contact offers versatility for a range of wire gauges, making it ideal for various PCB and wire-to-wire applications. Rated for a current of up to 3A, the terminal is suitable for handling moderate power requirements.

The SXAM-01T-P0.6 crimp terminal is manufactured using phosphor bronze, offering excellent mechanical strength and electrical conductivity. Tin plating enhances resistance to corrosion and ensures long-term reliability.

Male crimp terminal optimized for XA Series connections. Supports wire sizes from 24 AWG (0.2mm²) up to 20 AWG (0.5mm²). Rated for 3A current to suit electronic assembly needs. Phosphor bronze construction with tin plating ensures durability and performance.

Crimp termination provides quick and efficient installation either manually or by machinery. Contact resistance limited to 20mΩ for consistent and stable operation. Operates within a wide temperature range, -25°C to 105°C, making it suitable for demanding environments.

Designed for use with XA, XAD, and XAG connector housings in PCBs and wire-to-wire connections.

This terminal provides flexibility and reliability for electronics manufacturing, HVAC systems, industrial controls, and laboratory instrumentation. Bulk packaging on a reel facilitates production efficiency.

The JST XA Series is trusted for its quality and performance in electronic connectors, making it a preferred choice for OEMs and maintenance teams worldwide. Ensures consistent crimps and stable connections for professional assemblies.
