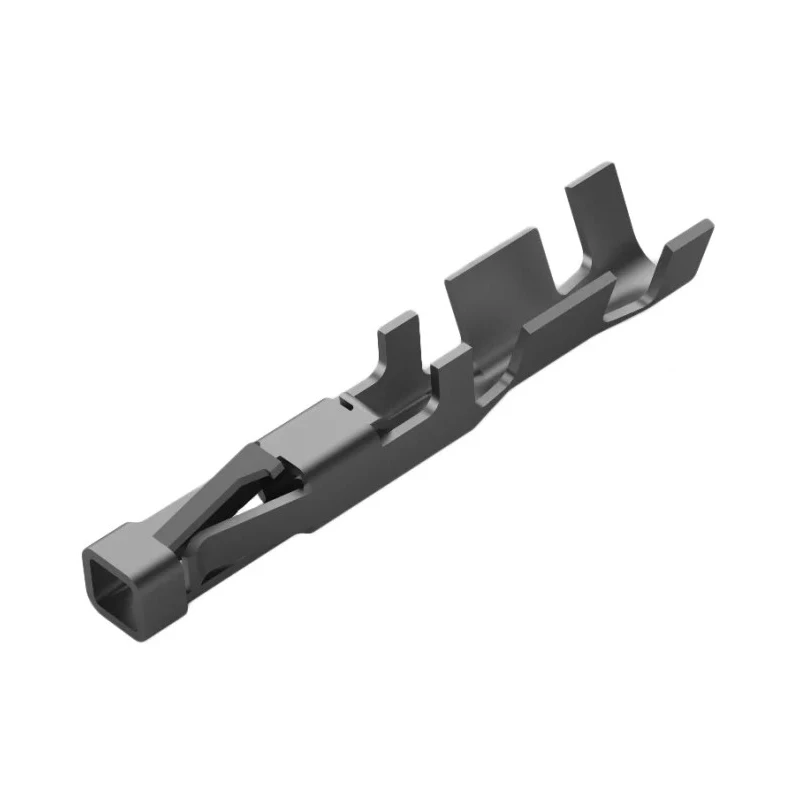

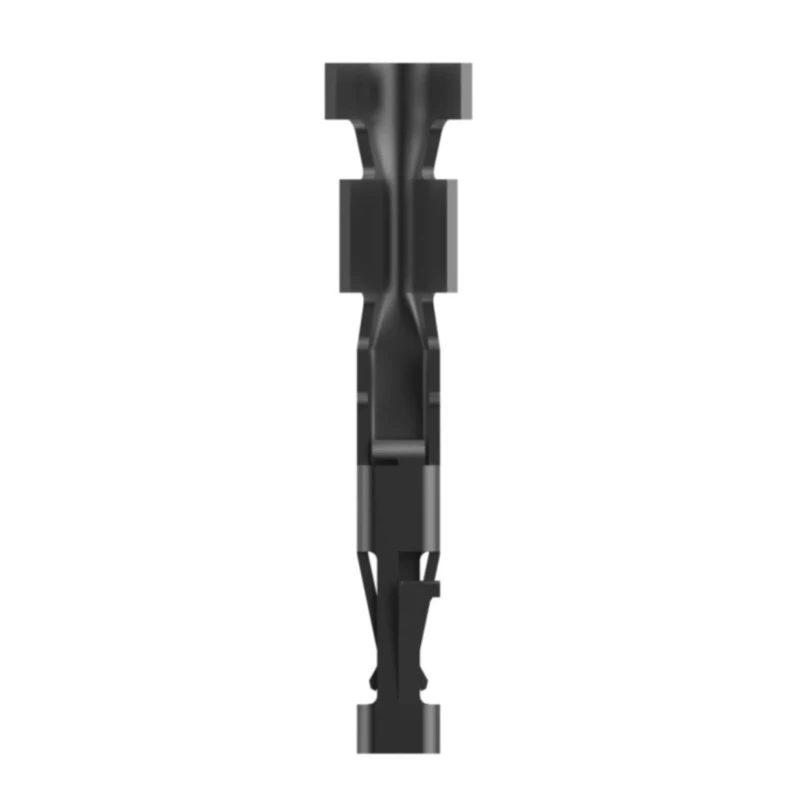

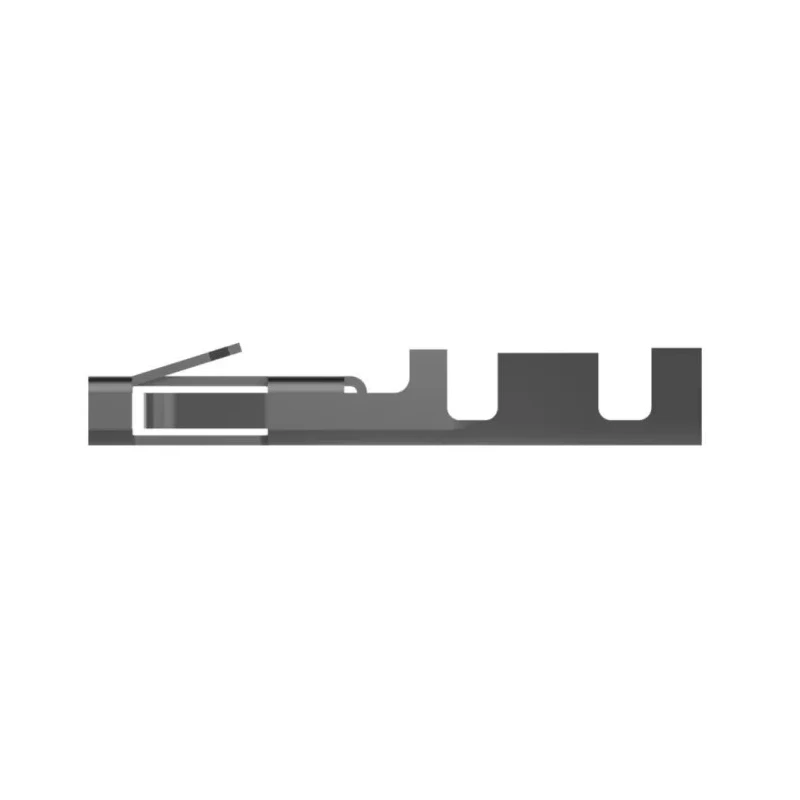

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min, 20 AWG Max, 3A Current 794606-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min, 20 AWG Max, 3A Current 794606-1

Name: TE Connectivity Micro MATE-N-LOK Series Female Crimp Terminal 24 AWG Min, 20 AWG Max, 3A Current 794606-1
Brand: TE Connectivity
SKU: 93908
Price: 0.07 USD
Availability: InStock



Category Crimp Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Current	3A
Model	794606-1
Gender	Female
Contact Material	Phosphor Bronze
Series	Micro MATE-N-LOK
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
For Use With	Micro MATE-N-LOK Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.2mm²
Maximum Wire Size mm²	0.5mm²
Minimum Wire Size AWG	24AWG
Maximum Wire Size AWG	20AWG
Maximum Contact Resistance	20mΩ

Key Features

Construction uses phosphor bronze contact material for durability.
Tin plating on contacts ensures reliable electrical connection.
Compatible with Micro MATE-N-LOK connector housings for secure fit.
Crimp termination type offers robust wire connection.
Operates effectively between -40°C to 105°C temperature range.
Maximum contact resistance is rated at 20 milliohms ensuring low electrical loss.
Suitable for electronic and electrical industry applications requiring reliable signal transmission.
Compact female gender contact design for versatile connector assemblies.

Product Description

TE Connectivity 794606-1 is a female crimp terminal from the Micro MATE-N-LOK Series, engineered for use with 24 AWG minimum and 20 AWG maximum wire sizes and rated for a maximum current of 3 amperes. It is constructed with phosphor bronze contact material providing excellent mechanical strength and reliable conductivity, plated with tin to enhance corrosion resistance and electrical performance.

This crimp terminal is designed to be compatible with Micro MATE-N-LOK connector housings, enabling secure and precise assembly in electronic and electrical systems. The termination type is crimp, ensuring a strong mechanical and electrical connection for wire termination tasks.

The terminal operates under a broad temperature range from -40°C to 105°C, suitable for various industrial and commercial environments. Its maximum contact resistance of 20 milliohms contributes to low power loss and stable signal transmission.

TE Connectivity’s Micro MATE-N-LOK Crimp Terminals are widely used in manufacturing, industrial electronics, communication equipment, and power supply assemblies where durability and electrical integrity are critical.

Phosphor bronze contact material ensures long-term durability and conductivity. Tin plating provides corrosion resistance and reliable electrical contact. Compatible with Micro MATE-N-LOK connectors for secure fit. Crimp termination type delivers strong wire retention and conductivity.

Wide operating temperature range from -40°C to 105°C allows use in varied environments. Low maximum contact resistance of 20 milliohms enhances electrical efficiency. Designed for 3A current applications with 24 to 20 AWG wire sizes.

Female gender contact suitable for diverse connector arrangements.

This product is ideal for use in electronic manufacturing, industrial automation systems, telecommunications equipment, and other electrical applications requiring precise and dependable wiring connections. Explore more TE Connectivity products and connectors on EnvMart for your assembly and maintenance needs.
