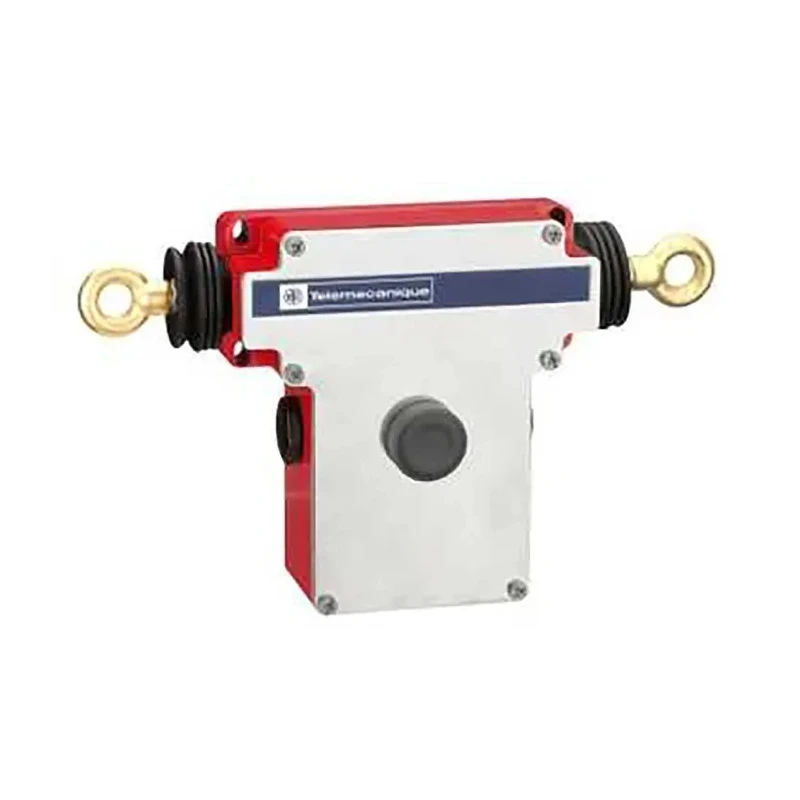

Telemecanique Sensors Rope Pull Switch 285 mm, 2 NO/2 NC, Stainless Steel Housing, IP66, ATEX Certified XY2CE

Telemecanique Sensors XY2CE Rope Pull Switch is a reliable industrial safety device designed for emergency stop operations in manufacturing, construction, and automation environments. It features a robust stainless steel housing with an IP66 rating, ensuring protection against dust ingress and water jets, suitable for harsh and hazardous industrial sites.

The switch incorporates a dual rope pull mechanism enabling safety activation from either side, supporting rope lengths up to 2 x 100 meters with the use of tension supports and pulleys. Its 2 NO/2 NC contact configuration allows for positive opening operation contacts, ensuring safety circuit integrity during emergency stops.

An integrated reset button safely re-closes the safety contacts allowing controlled machine restart. The emergency stop button provides rapid manual activation in critical situations. Its operational temperature ranges from -25°C to 70°C, making it effective across diverse climates and applications.

Installation is facilitated by three cable entries with M20 conduit connections enabling secure wiring. The device meets international standards including CCC, UL (NISD), CSA, EAC, EN/IEC 60947-5-5, UL 508, CSA C 22-2, and holds ATEX certification for hazardous area use.

This rope pull switch is engineered for high mechanical endurance with a rated operational life of 60000 cycles, making it suitable for demanding industrial automation and safety applications in sectors such as manufacturing plants, water treatment facilities, agricultural machinery, and commercial systems.

Stainless steel housing provides durability and corrosion resistance. IP66 rating ensures protection against dust and water jets. Dual rope pull supports extensive coverage with double anchor points. 2 NO/2 NC contacts with positive opening operation for safety.

Include reset and emergency stop buttons for control and safety. Compatible with conduit entry size M20 and 3 cable entry points. Certified to multiple global safety and hazardous area standards. Wide operating temperature range for use in harsh environments.

Mechanically rated for 60000 cycles for extended lifecycle.

Choose Telemecanique Sensors XY2CE Rope Pull Switch for reliable, certified industrial safety control. Explore more products in the Rope Pull Switch category at EnvMart to complement your safety systems.
