| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Material | Ferrite |
| Height | 0.85mm |
| Length | 2mm |
| Model | ACML-0805-151-T |
| Depth | 1.25mm |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Current Rating | 800mA |
| Series | ACML-0805 |
| Maximum Operating Temperature | 125°C |
| Package Type | 0805 |
| Sub Type | Chip Bead |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS/RoHS II |
| Maximum DC Resistance | 0.15Ω |
| Impedance at 25 MHz | 150Ω |

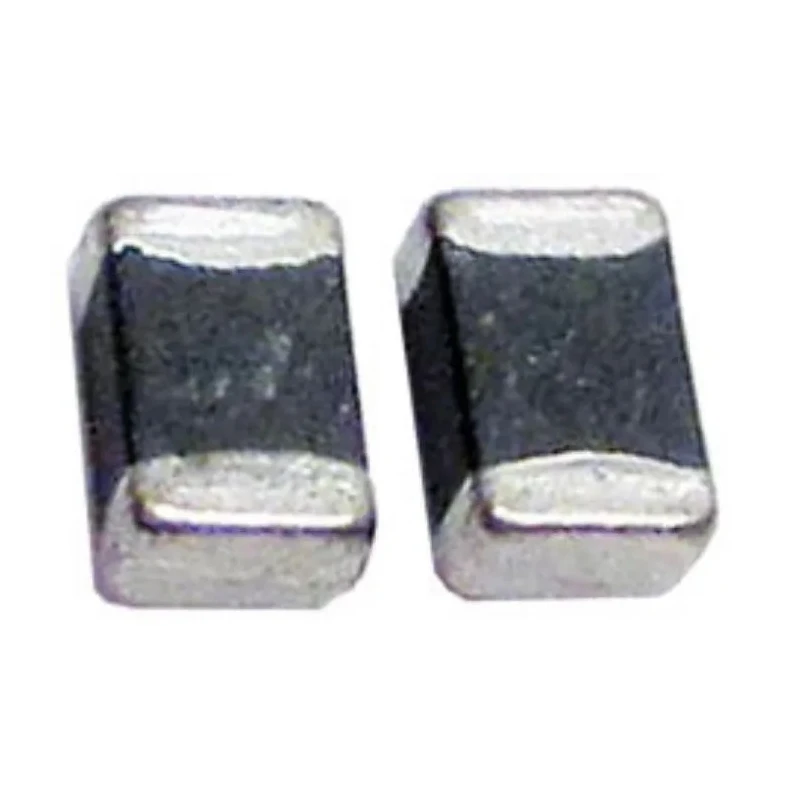

Abracon ACML-0805-151-T is a high-performance ferrite bead designed for surface mount applications in compact 0805 package size with a thickness of 0.85 mm. This chip bead features a 150 Ω impedance at 25 MHz, making it effective for noise suppression in electronic circuits.
The multilayer monolithic construction delivers excellent reliability and durability under various operating conditions. Nickel barrier terminations enable strong solder heat resistance, suitable for standard flow and RoHS-compliant reflow soldering processes, ensuring robust PCB assembly.
The ferrite material and construction provide a maximum DC resistance of just 0.15 Ω, reducing signal leakage and maintaining circuit integrity. With a rated current of 800 mA, the ACML-0805-151-T ferrite bead is capable of handling substantial current load while mitigating EMI and RFI disturbances.
This component operates reliably within a wide temperature range from -55°C to 125°C, making it suitable for demanding environments in automotive electrical systems, communication devices, video and audio equipment, and office automation products.
The compact dimensions (2 mm length, 0.85 mm height, 1.25 mm depth) allow integration in space-constrained PCB designs. It is supplied in a tape and reel packaging format facilitating automated placement and efficient manufacturing.
Multilayer monolithic construction ensures high reliability. Nickel barrier terminations provide solder heat resistance. Suited for RoHS flow and reflow soldering. Rated current of 800 mA supports stable operation. Wide operating range: -55°C to 125°C.
Low DC resistance maximizes signal integrity. Compact 0805 surface mount package size. RoHS and RoHS II compliant for environment safety. Applications include automotive, communication, video, and audio equipment.
This Abracon ferrite bead is an essential component for EMI suppression and noise reduction in modern electronics, ensuring compliance with industry standards and enhancing device performance. Explore more electronics components and Ferrite Beads at EnvMart for your design and manufacturing needs.
