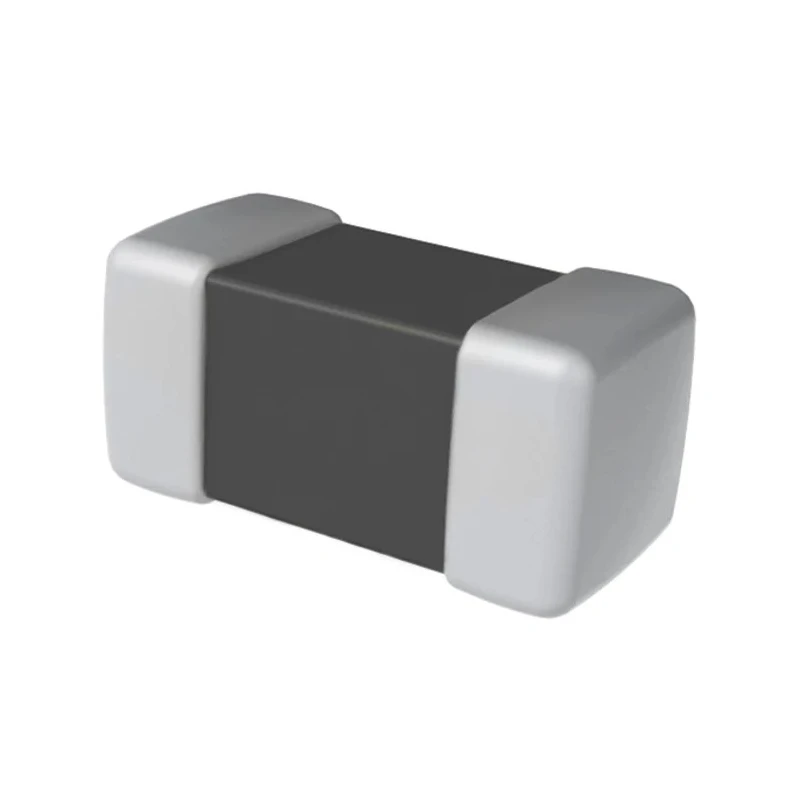

KEMET High Impedance Ferrite Bead 0.031 mm Tape & Reel Chip Bead Z0603C280APWST

Name: KEMET High Impedance Ferrite Bead 0.031 mm Tape & Reel Chip Bead Z0603C280APWST
Brand: KEMET
SKU: 111620
Price: 0.14 USD
Availability: InStock



Category Ferrite Beads Brand KEMET Condition New

Specifications

Country of Origin	Philippines
Brand	KEMET
Material	Ferrite
Height	0.031mm
Length	0.063mm
Model	Z0603C280APWST
Depth	0.031mm
Packaging	Tape & Reel
Current Rating	900mA
Series	Z-PWZ
Maximum Operating Temperature	125°C
Package Type	Tape & Reel
Sub Type	Chip Bead
Minimum Operating Temperature	40°C
Standards/Approvals	RoHS and REACH compliant
Maximum DC Resistance	0.45Ω
Impedance at 100 MHz	28Ω
Impedance at 25 MHz	22.8Ω
Impedance at 300 MHz	30.5Ω
Impedance at 50 MHz	25.8Ω
Impedance at 1 GHz	30.4Ω

Key Features

High impedance values to suppress radiated noise on power and signal lines.
Typical impedance rating of 22.8 Ω at 25 MHz and 28 Ω at 100 MHz.
Compact chip size of 0.063 mm length and 0.031 mm height and depth.
Supports current rating up to 900 mA and low DC resistance of 0.45 Ω.
Wide operating temperature range from -40°C to +125°C.
Low stray capacitance due to wire wound ferrite construction.
RoHS and REACH compliant ferrite material ensuring environmental standards.
Ideal for high frequency noise suppression and waveform correction in digital mobile and low power devices.

Product Description

KEMET Z0603C280APWST is a high impedance ferrite bead chip designed to suppress electromagnetic interference (EMI) in electronic circuits. This chip bead is supplied on tape and reel packaging which facilitates automated insertion during PCB assembly, improving manufacturing efficiency.

The bead offers an impedance of 22.8 ohms at 25 MHz and 28 ohms at 100 MHz, with impedance increasing slightly at higher frequencies to 30.5 ohms at 300 MHz and 30.4 ohms at 1 GHz. Its compact size of 0.063 mm length and 0.031 mm height and depth enables integration in space-constrained applications.

The maximum current rating is 900 mA with a maximum DC resistance of 0.45 ohms, providing high reliability in power line noise suppression. Operating temperature ranges from -40°C to +125°C ensure robust performance across diverse environmental conditions.

This ferrite bead utilizes a wire wound ferrite material construction that provides low stray capacitance, which is critical for high frequency signal integrity and noise attenuation. The product complies with RoHS and REACH environmental directives, making it suitable for modern electronics manufacturing requirements.

Typical applications include digital mobile devices and other low power consumption electronics requiring waveform correction and high frequency noise control. The product is part of the KEMET Z-PWZ series, recognized for reliability and consistent performance in EMI filtering.

High impedance with low stray capacitance construction. Wide temperature operating range from -40°C to +125°C. Compact tape and reel packaging for assembly efficiency. Suitable for suppressing radiated noise on power lines in digital electronics.

RoHS and REACH compliant ferrite material. Current rating of 900 mA supports high withstand current applications.

This product is well suited for industrial, telecommunications, consumer electronics, and automotive electronic systems where EMI suppression and signal integrity are critical. Browse more KEMET Ferrite Beads and EMI filter products on EnvMart for comprehensive electronic component solutions.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The ferrite bead has a typical impedance of 22.8 ohms at 25 MHz, 28 ohms at 100 MHz, 25.8 ohms at 50 MHz, 30.5 ohms at 300 MHz, and 30.4 ohms at 1 GHz.

This model has a maximum current rating of 900 mA, making it suitable for high withstand current applications.

The dimensions of this chip bead are 0.063 mm in length, 0.031 mm in height, and 0.031 mm in depth.

The operating temperature range for this ferrite bead is from -40°C to +125°C, ensuring performance across diverse environmental conditions.

It is supplied in tape and reel packaging, which facilitates automated insertion during PCB assembly.

This ferrite bead is made from ferrite material, which helps in suppressing electromagnetic interference.

Yes, the ferrite bead is RoHS and REACH compliant, ensuring it meets modern environmental standards for electronics manufacturing.

The maximum DC resistance of this ferrite bead is 0.45 ohms, contributing to its reliability in power line noise suppression.

This model is part of the KEMET Z-PWZ series, recognized for its reliability and consistent performance in EMI filtering applications.

It is suitable for applications in digital mobile devices and other low power consumption electronics requiring waveform correction and high frequency noise control.

The wire wound ferrite construction provides low stray capacitance, which is critical for maintaining high frequency signal integrity and effective noise attenuation.

The impedance values at different frequencies indicate the bead's effectiveness in suppressing radiated noise, with higher impedance at higher frequencies enhancing its noise suppression capabilities.
