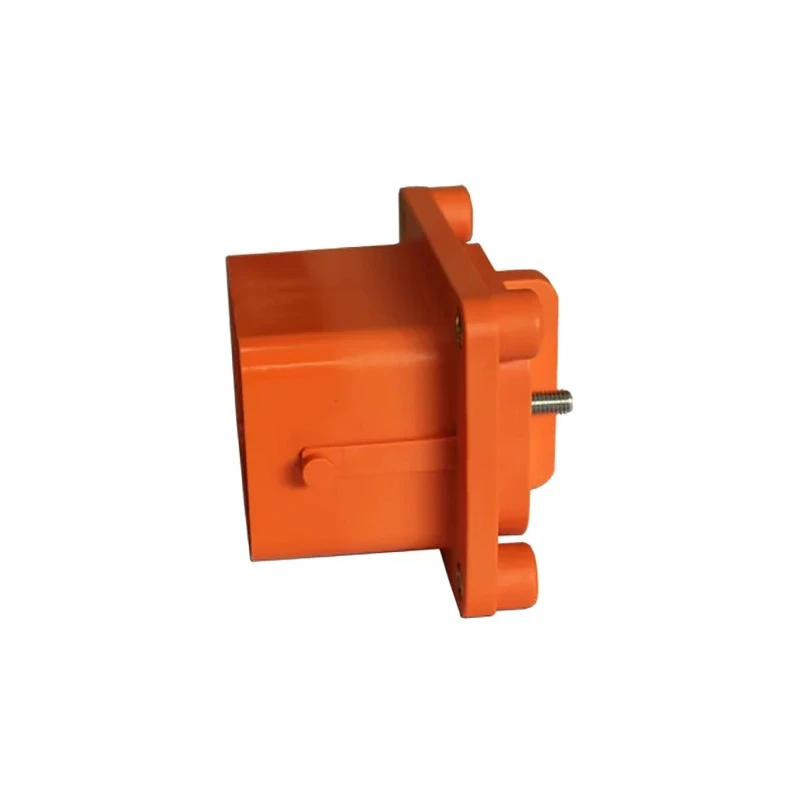

Amphenol Industrial Plug-In EV Service Disconnect 230A 1000V Manual Service Disconnect Flange Mount MSDF000R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1000V |
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Height | 110mm |
| Model | MSDF000R |
| Depth | 83mm |
| IP Rating | IP67, IP69K |
| Connector Type | Manual Service Disconnect |
| Width | 110mm |
| Mount Type | Flange |
| Standards | USCAR-2. USCAER-37, LV-215 |
| Current Rating | 230A |
| Series | MSD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| For Use With | HV Battery Pack |
| Contact Gender | Female |
| Connector Gender | Female |
| Better World Claim | Renewable Energy Solution |
| Termination Method | Plug-In |
Key Features
- This disconnect is rated for 230A current and operates at 1000V.
- The device features a flange mount and offers IP67 and IP69K ingress protection ratings.
- Designed to operate within a temperature range of -40°C to 70°C.
- The connector type is a manual service disconnect with plug-in termination and female contact gender.
- This disconnect includes a High Voltage Interlock Loop (HVIL) for enhanced battery safety.
- It is constructed for durability with over 50 mating cycles and complies with standards USCAR-2, USCAER-37, and LV-215.
- The orange colored product has a straight orientation and dimensions of 110mm height, 110mm width, and 83mm depth.
Product Description
Amphenol Industrial MSDF000R Plug-In EV Service Disconnect is engineered for use with high voltage (HV) battery packs in plug-in hybrid electric vehicles (PHEVs). Rated at 230 amperes and 1000 volts, this manual service disconnect offers a reliable and safe solution for disconnecting power without specialized tools.
Featuring a flange mount type and robust IP67 and IP69K ingress protection ratings, the MSDF000R is designed to withstand harsh industrial and automotive environmental conditions. It operates efficiently in extreme temperature ranges from -40°C up to 70°C, ensuring stability and safety during vehicle maintenance or battery servicing.
The connector features female contact and connector gender with a plug-in termination method, providing ease of use and secure connections. The integrated High Voltage Interlock Loop (HVIL) enhances safety by protecting the battery system from short circuits during disconnection.
The MSD offers durability over 50 mating cycles, with an orange color for easy identification and a straight orientation to fit standard application requirements. It complies with automotive standards including USCAR-2, USCAER-37, and LV-215, making it suitable for industrial, automotive, and electric vehicle servicing contexts.
This product is a certified Renewable Energy Solution contributing to sustainable electric vehicle infrastructure. Its compact dimensions of 110mm height, 110mm width, and 83mm depth facilitate easy installation in constrained spaces.
Amphenol Industrial MSDF000R EV Service Disconnect ensures enhanced safety, longevity, and compliance with strict automotive requirements, making it an ideal component for HV battery pack integrations in electric vehicles.
Explore more high quality electrical connectors and EV Service Disconnects in the Electronics & Electricals category on EnvMart.
