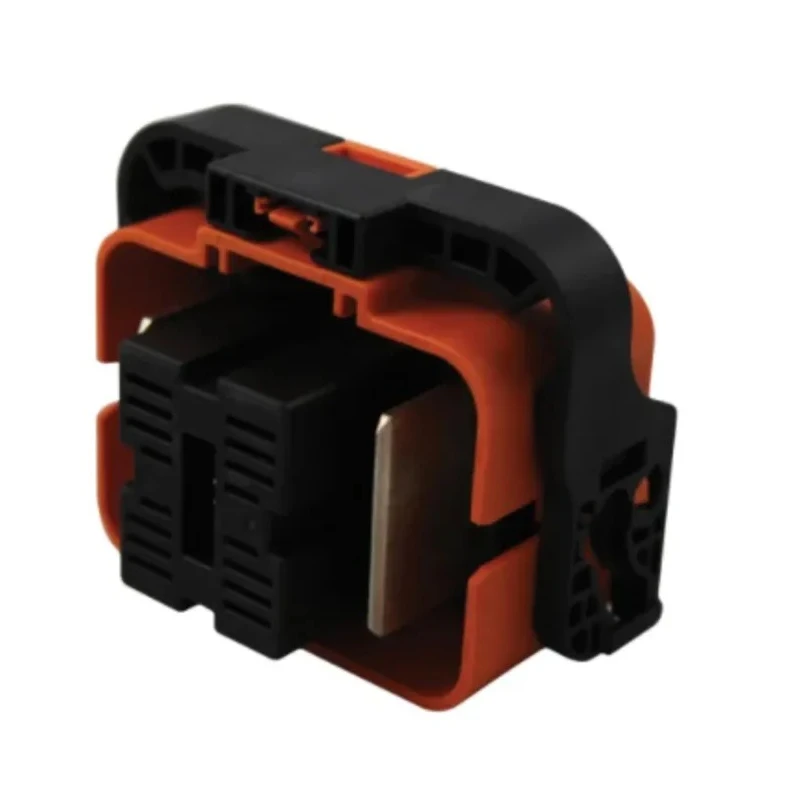

Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack 400A 690V Manual Service Disconnect MSDM4002
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 690V |
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Height | 103mm |
| Model | MSDM4002 |
| Depth | 62mm |
| IP Rating | IP67, IP69K |
| Connector Type | Manual Service Disconnect |
| Width | 105.5mm |
| Mount Type | Flange |
| Standards | USCAR-2. USCAER-37, LV-215 |
| Current Rating | 400A |
| Series | MSD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| For Use With | HV Battery Pack |
| Contact Gender | Male |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Termination Method | Plug-In |
Key Features
- Rated for 400A current and 690V operating voltage.
- Includes High Voltage Interlock Loop (HVIL) for safe servicing.
- Durable plug supports over 50 mating cycles.
- Ingress protection rated IP67 and IP69K for harsh environments.
- Operating temperature range from -40°C to 70°C.
- Mount type is flange with straight orientation.
- Manual service disconnect with a two-stage lever operation.
- Connector and contact are male gender.
Product Description
Amphenol Industrial MSDM4002 Plug-In EV Service Disconnect is a robust manual disconnect designed for use with high voltage (HV) battery packs in plug-in hybrid electric vehicles (PHEVs). It features a High Voltage Interlock Loop (HVIL) that ensures the HVIL circuit opens prior to the separation of high voltage contacts, enhancing operator safety.
The disconnect is engineered for durability, capable of over 50 mating cycles, and operates reliably in extreme temperature ranges from -40°C to 70°C. It provides a reliable disconnection solution without requiring specialist tools, thus protecting the battery pack from short circuits during maintenance or servicing.
This EV Service Disconnect offers outstanding ingress protection with IP67 and IP69K ratings, making it suitable for demanding automotive environments exposed to dust, water, and high-pressure washdowns. The device mounts via flange and has a straight orientation. Both the connector and contact are male gender, designed for plug-in termination.
The device complies with automotive industry standards USCAR-2, USCAER-37, and LV-215, ensuring compatibility and quality assurance. Its bright orange color improves visibility and safety identification on high voltage circuits.
Height, width, and depth measures are 103mm, 105.5mm, and 62mm respectively. The product is manufactured in Germany and aligns with renewable energy initiatives under the Better World Product program.
Rated 400A current and 690V voltage for high power EV applications. High Voltage Interlock Loop (HVIL) improves safety during battery servicing. Durable over 50 mating cycles for long service life. Ingress protection rated IP67 and IP69K for robust environmental sealing.
Wide operating temperature range from -40°C to 70°C. Manual flange mount, straight orientation for reliable installation. Complies with USCAR-2, USCAER-37, LV-215 standards. Bright orange color for safe identification. Manufactured in Germany ensuring high quality standards.
This EV Service Disconnect is ideal for industrial, automotive manufacturing, electric vehicle servicing, and renewable energy applications where reliable, safe disconnection of high voltage battery packs is critical. For more products in the Electronics & Electricals Connectors category, explore EnvMart for trusted industrial components and solutions.
Explore more products in our EV Service Disconnects category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 400A and an operating voltage of 690V, making it suitable for high power applications in electric vehicles.
The operating temperature range for this unit is from -40°C to 70°C, allowing it to function effectively in extreme conditions.
It features a male connector and contact gender, designed for plug-in termination, ensuring a secure connection.
The HVIL ensures that the high voltage circuit opens prior to the separation of high voltage contacts, improving safety during servicing.
The dimensions of this model are 103mm in height, 105.5mm in width, and 62mm in depth.
This unit uses a flange mount type with a straight orientation for installation.
The disconnect is designed to support over 50 mating cycles, ensuring durability during repeated use.
It complies with automotive industry standards USCAR-2, USCAER-37, and LV-215, ensuring compatibility and quality assurance.
This model is bright orange, which improves visibility and safety identification on high voltage circuits.
It is designed for use with high voltage battery packs in plug-in hybrid electric vehicles, making it suitable for automotive manufacturing and electric vehicle servicing.
This product is manufactured in Germany, ensuring adherence to high quality standards.
