Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack 170A 1500V Flange Mount MINIMSDF000F

Free Delivery in India | Lowest Global Shipping Charges

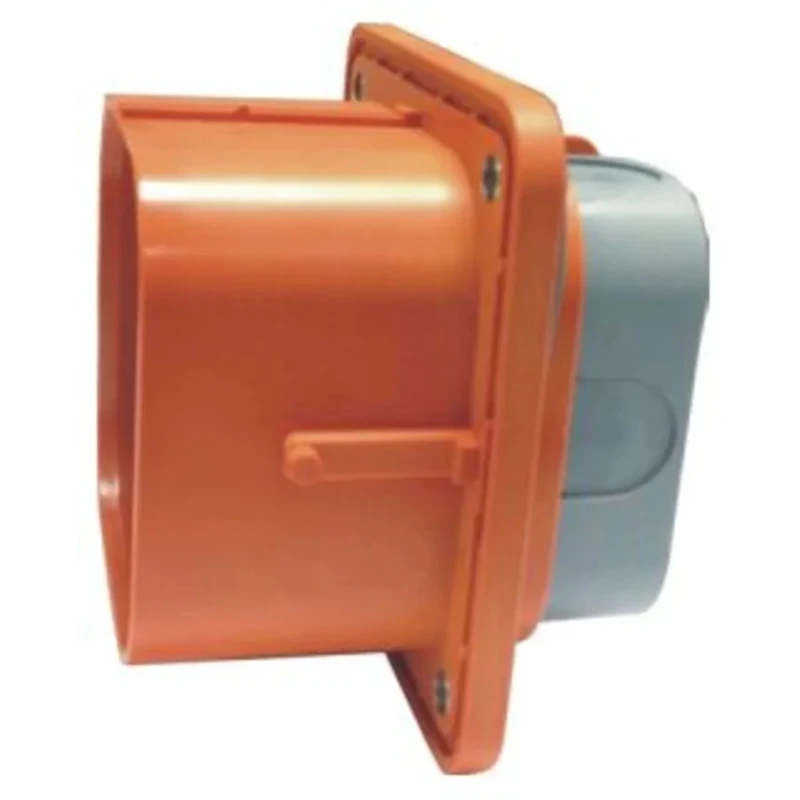

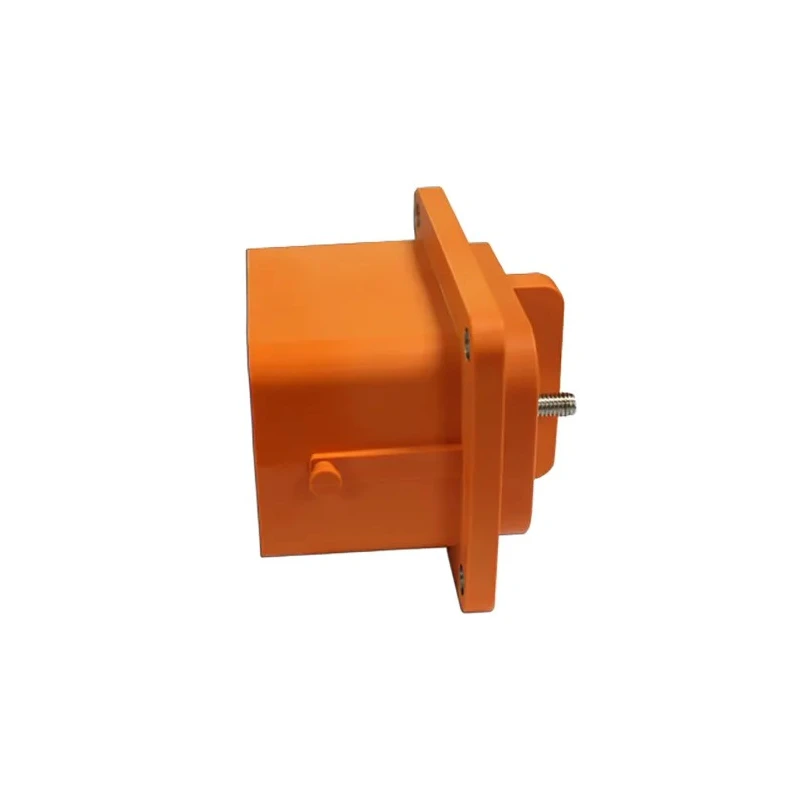

Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack 170A 1500V Flange Mount MINIMSDF000F

Name: Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack 170A 1500V Flange Mount MINIMSDF000F
Brand: Amphenol Industrial
SKU: 192668



Category EV Service Disconnects Brand Amphenol Industrial Condition New

Specifications

Country of Origin	China
Voltage	1500V
Brand	Amphenol Industrial
Colour	Orange
Orientation	Straight
Operating Temperature	-40°C to +70°C
Height	75mm
Model	MINIMSDF000F
Depth	76.65mm
IP Rating	IP69K, IP67
Connector Type	Mini Manual Service Disconnect
Width	98mm
Mount Type	Flange
Standards	USCAR-2. USCAER-37, LV-215
Current Rating	170A
Series	MSD
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
For Use With	HV Battery Pack
Contact Gender	Female
Connector Gender	Female
Better World Claim	Renewable Energy Solution
Termination Method	Plug-In

Key Features

Designed for use with high voltage battery packs in electric vehicles.
Flange mount type for secure installation.
Durable orange mini manual service disconnect with plug-in termination.
Features female contact and connector gender in a straight orientation.
IP67 and IP69K rated for excellent ingress protection.
Operates safely within temperature range of -40°C to +70°C.
Compliant with USCAR-2, USCAER-37, and LV-215 standards.
Includes High Voltage Interlock Loop (HVIL) for enhanced battery protection.

Product Description

Amphenol Industrial MINIMSDF000F Plug-In EV Service Disconnect is a robust connector designed for safe disconnection of high voltage battery packs in electric vehicles such as Plug-In Hybrid Electric Vehicles (PHEV). It supports a current rating of 170A and a voltage rating of 1500V, making it suitable for high power automotive applications.

This mini manual service disconnect features a flange mount type and a compact design with dimensions of 75mm height, 76.65mm depth, and 98mm width. The connector is finished in an orange color to enhance visibility and safety. It employs a plug-in termination method and has female contact and connector genders arranged in a straight orientation.

The product features a High Voltage Interlock Loop (HVIL) that prevents short circuiting when servicing and disconnecting internal HV battery packs. It facilitates tool-free disconnection, providing convenience and safety to service technicians.

With an ingress protection rating of IP67 and IP69K, this disconnect housing ensures full dust tightness and resistance to powerful water jets, offering durability in challenging environments. It operates reliably within temperature extremes from -40°C to +70°C, validated to standards USCAR-2, USCAER-37, and LV-215.

Designed for reliable connection and disconnection in EV high voltage battery systems. Compact and robust design suitable for demanding automotive applications. Ensures enhanced safety via the integrated High Voltage Interlock Loop.

High ingress protection protects against dust and water ingress in harsh conditions. Compatible with a broad temperature range to suit various climates and operating conditions. Compliance with automotive safety and quality standards for dependable performance.

Facilitates routine maintenance and servicing of electric vehicle high voltage battery systems.

This product supports sustainable automotive technologies and renewable energy solutions, making it an ideal choice for modern electric vehicle servicing needs. Find more EV Service Disconnects and related connectors for your automotive electrical requirements at EnvMart.
