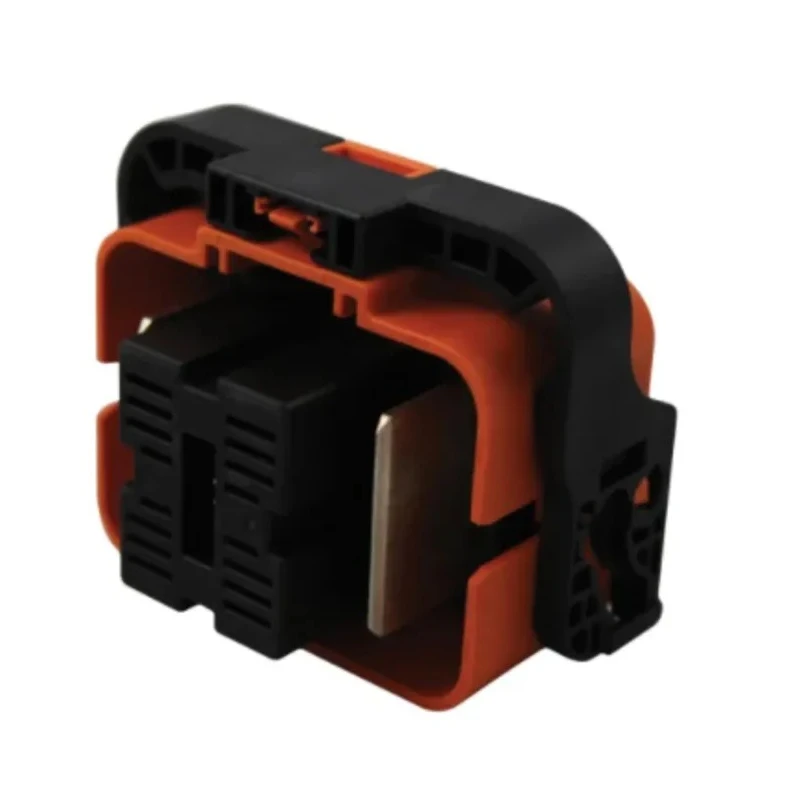

Amphenol Industrial Plug-In EV Service Disconnect 690V 160A Mini Manual Service Disconnect for HV Battery Pack MINIMSDM160
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 690V |
| Brand | Amphenol Industrial |
| Colour | Orange |
| Orientation | Straight |
| Height | 73.5mm |
| Model | MINIMSDM160 |
| Depth | 47.9mm |
| IP Rating | IP69K, IP67 |
| Connector Type | Mini Manual Service Disconnect |
| Width | 91mm |
| Mount Type | Flange |
| Standards | USCAR-2. USCAER-37, LV-215 |
| Current Rating | 160A |
| Series | MSD |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -40°C |
| For Use With | HV Battery Pack |
| Contact Gender | Male |
| Connector Gender | Male |
| Better World Claim | Renewable Energy Solution |
| Termination Method | Plug-In |
Key Features
- Operates at a voltage of 690V suitable for high voltage battery applications.
- Offers IP69K and IP67 ingress protection ensuring dust tightness and high water resistance.
- Features a durable flange mount type with a compact form factor (91mm width, 73.5mm height, 47.9mm depth).
- Equipped with a two-stage lever and integrates a High Voltage Interlock Loop (HVIL) for safety during service.
- Designed to function within a temperature range of -40°C to 70°C for reliable performance.
- Provides over 50 mating cycles durability with male contact and connector genders.
- Ensures short circuit protection without the need for specialist tools, critical for maintenance and emergency handling.
Product Description
Amphenol Industrial MINIMSDM160 Plug-In EV Service Disconnect is a high-quality mini manual service disconnect engineered for high voltage battery packs, designed to safely disconnect and protect the battery from short circuit in electric and plug-in hybrid vehicles.
Rated for 160A current and operating at up to 690V, this device provides a reliable and tool-free disconnect solution essential for service and emergency response technicians. It features an integrated internal High Voltage Interlock Loop (HVIL) that ensures circuit interruption before physical disconnection for enhanced safety during maintenance.
The disconnect offers a robust IP69K and IP67 ingress protection rating, providing dust-tight housing and resistance against powerful water jets, making it suitable for harsh environmental conditions. Its compact dimensions (91mm width, 73.5mm height, 47.9mm depth) and flange mount type facilitate versatile installation options in electric vehicles.
With an operating temperature range from -40°C to 70°C, this mini MSD accommodates a wide variety of climatic conditions. Its two-stage lever design and dual-channel cooling structure help maintain low temperature rise, contributing to longevity and performance over more than 50 mating cycles. Connector and contact genders are male, supporting secure and reliable connection.
This solution complies with standards USCAR-2, USCAER-37, and LV-215, ensuring industry-accepted safety and quality for automotive electrical connectors. The bright orange color aids visibility and identification during servicing. The plug-style termination method facilitates quick and reliable mating and demating of the disconnect.
Ideal for industrial, automotive manufacturing, electric vehicle maintenance, and renewable energy sectors, the MINIMSDM160 enhances operational safety and efficiency during high voltage battery pack servicing. It supports sustainable energy applications by enabling secure and convenient battery disconnection.
Operates at 690V with 160A current rating for high voltage EV battery applications. Rated IP69K and IP67 for exceptional protection against dust and water ingress. Compact flange mount design with dimensions 91mm x 73.5mm x 47.9mm.
Integrated HVIL and two-stage lever improve safety and usability during servicing. Wide operating temperature range from -40°C to 70°C for versatile conditions. Durability guaranteed over 50 mating cycles with male connectors and contacts.
Conforms to USCAR-2, USCAER-37, and LV-215 industry standards. Ideal for plug-in hybrid and electric vehicle high voltage battery pack disconnect. Explore more in the EV Service Disconnects category at EnvMart for advanced power connector solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates at a voltage of 690V, making it suitable for high voltage battery applications.
The current rating for this model is 160A, which is essential for high voltage EV battery applications.
The dimensions are 91mm in width, 73.5mm in height, and 47.9mm in depth, allowing for a compact installation.
It has an IP69K and IP67 ingress protection rating, ensuring it is dust-tight and resistant to high-pressure water jets.
The operating temperature range is from -40°C to 70°C, accommodating a variety of climatic conditions.
It features an integrated High Voltage Interlock Loop (HVIL) that ensures circuit interruption before physical disconnection, enhancing safety during maintenance.
It is rated for over 50 mating cycles, ensuring reliable performance during repeated use.
It complies with USCAR-2, USCAER-37, and LV-215 standards, ensuring industry-accepted safety and quality.
The termination method is plug-in, allowing for quick and reliable mating and demating.
It is designed for use with high voltage battery packs in electric and plug-in hybrid vehicles, enhancing operational safety during servicing.
