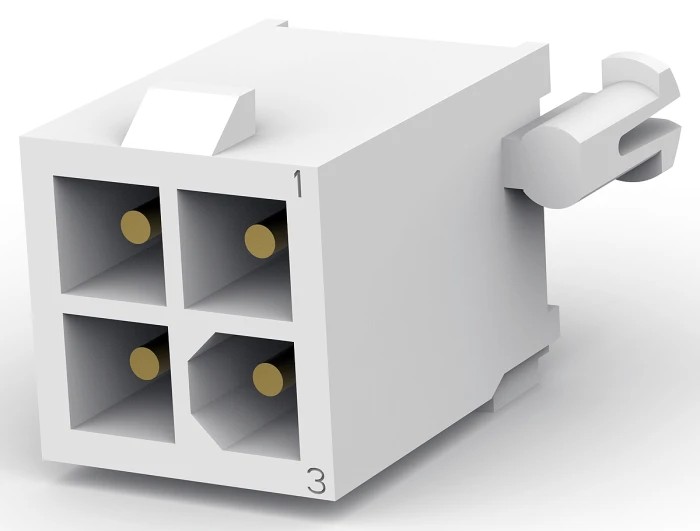

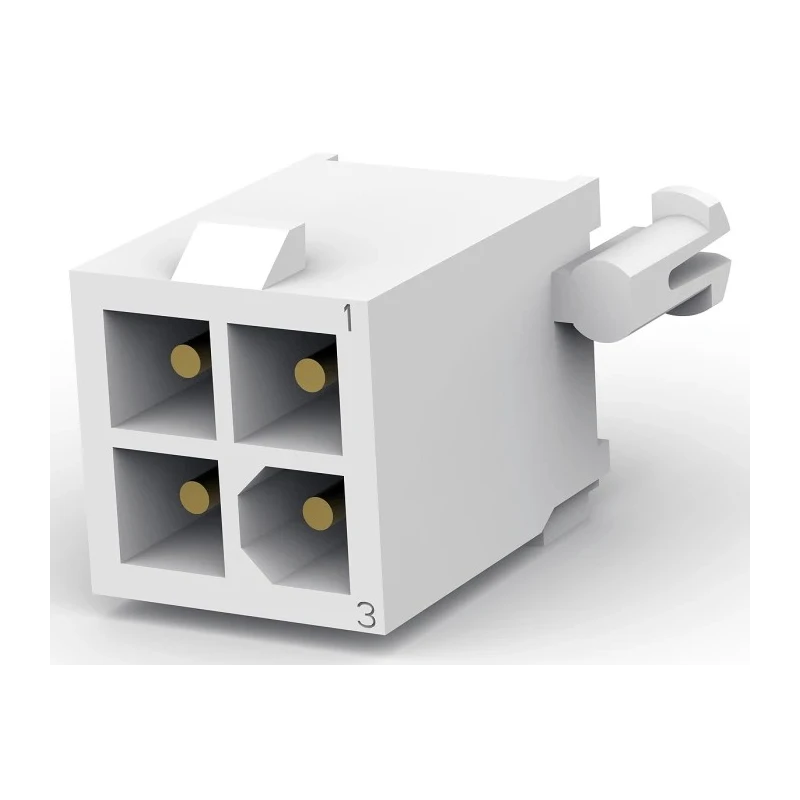

TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 4 Contact, 4.14 mm Pitch, 2 1-770174-1

Name: TE Connectivity Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header, 4 Contact, 4.14 mm Pitch, 2 1-770174-1
Brand: TE Connectivity
SKU: 204911
Price: 2.69 USD
Availability: InStock



Category PCB Connectors & Wire Housings Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Voltage	600V
Brand	TE Connectivity
Orientation	Straight
Current	9.5A
Mount Type	Through Hole
Housing Material	Nylon
Contact Material	Brass
Series	Mini-Universal MATE-N-LOK
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	4.14mm
Contact Plating	Gold
Number of Contacts	4
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board
Tail Pin Length	3.69mm

Key Features

Constructed with shrouded nylon housing for secure locking and PCB retention.
Features 2 rows of 4 brass contacts plated with gold for superior conductivity and corrosion resistance.
Designed for a current rating of 9.5 A and voltage rating of 600 V.
Tail pins are 3.69 mm long for reliable solder connections.
Suitable for operating temperatures ranging from -55°C to 105°C.
Through-hole mount type ensures strong mechanical attachment to the PCB.
Includes positive locking latch mechanism to prevent disconnection under vibration.
Ideal for industrial, electronic, and power connector applications.

Product Description

TE Connectivity 1-770174-1 Mini-Universal MATE-N-LOK Series Straight Through Hole PCB Header is a high-quality electrical connector designed for wire-to-board applications requiring robust performance.

This connector features a 4-contact, 2-row configuration with a 4.14 mm pitch, allowing efficient and reliable signal or power transfer on PCBs. The shrouded nylon housing is UL94V-0 rated, providing excellent insulation and mechanical stability. Brass contacts plated with gold ensure low contact resistance and enhanced durability.

Rated for 9.5 A current and 600 V operating voltage, it supports a wide temperature range from -55°C to 105°C, making it suitable for demanding environments. The 3.69 mm tail pin length facilitates secure solder joint connections during PCB assembly. Its through-hole mounting provides excellent mechanical strength for industrial and commercial electronic applications.

The connector system incorporates a positive locking latch mechanism to guarantee secure mating and includes board locks to enhance PCB retention, reducing the risk of connector disengagement. This product fits perfectly in electronics manufacturing, power electronics, communications equipment, and industrial machinery requiring reliable and code-compliant connectors.

Constructed with shrouded nylon housing for secure locking and PCB retention. Features 2 rows of 4 brass contacts plated with gold for superior conductivity and corrosion resistance. Designed for a current rating of 9.5 A and voltage rating of 600 V.

Tail pins are 3.69 mm long for reliable solder connections. Suitable for operating temperatures ranging from -55°C to 105°C. Through-hole mount type ensures strong mechanical attachment to the PCB. Includes positive locking latch mechanism to prevent disconnection under vibration.

Ideal for industrial, electronic, and power connector applications.
