Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack, 125A, 690V, IP67/IP69K, Orange, Flange MINIMSDM125

Free Delivery in India | Lowest Global Shipping Charges

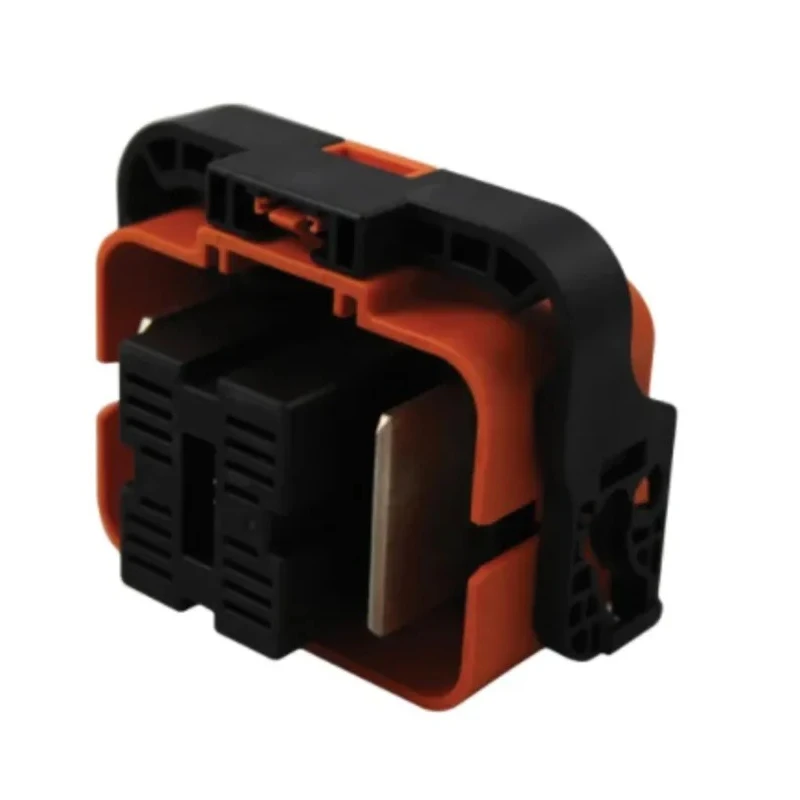

Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack, 125A, 690V, IP67/IP69K, Orange, Flange MINIMSDM125

Name: Amphenol Industrial Plug-In EV Service Disconnect for HV Battery Pack, 125A, 690V, IP67/IP69K, Orange, Flange MINIMSDM125
Brand: Amphenol Industrial
SKU: 141393



Category EV Service Disconnects Brand Amphenol Industrial Condition New

Specifications

Country of Origin	Germany
Voltage	690V
Brand	Amphenol Industrial
Colour	Orange
Orientation	Straight
Height	73.5mm
Model	MINIMSDM125
Depth	47.9mm
IP Rating	IP67, IP69K
Connector Type	Mini Manual Service Disconnect
Width	91mm
Mount Type	Flange
Standards	USCAR-2. USCAER-37, LV-215
Current Rating	125A
Series	MSD
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
For Use With	HV Battery Pack
Contact Gender	Male
Connector Gender	Male
Better World Claim	Renewable Energy Solution
Termination Method	Plug-In

Key Features

Rated at 125A current capacity and 690V operating voltage.
Features IP67 and IP69K ingress protection for harsh environment reliability.
Compact flange mount design with dimensions 91mm width, 73.5mm height, and 47.9mm depth.
Includes integrated internal High Voltage Interlock Loop (HVIL) with two-stage lever for safety.
Operating temperature range from -40°C to 70°C suitable for automotive applications.
Durable connector with over 50 mating cycles lifecycle.
Meets standards USCAR-2, USCAER-37, and LV-215 for quality assurance.
Connector and contact gender both male with orange mini manual service disconnect type.

Product Description

Amphenol Industrial MINIMSDM125 is a plug-in EV service disconnect engineered for use with high voltage (HV) battery packs in plug-in hybrid electric vehicles (PHEV). Rated for a current of 125A and voltage of 690V, this compact device offers reliable electrical isolation and enhanced safety features suitable for automotive maintenance and servicing applications.

The disconnect includes an integrated internal High Voltage Interlock Loop (HVIL) with a unique two-stage lever that opens the HVIL circuit prior to separation of the HV contacts. This design protects against short circuits and ensures safe disconnection without the need for specialized tools.

Its flange mount type and straight orientation simplify installation within vehicle battery systems. Constructed for durability, the connector supports over 50 mating cycles, indicating high mechanical longevity. The color is orange, enhancing visibility and safety during service operations.

With ingress protection ratings of IP67 and IP69K, the disconnect is suitable for harsh and demanding environments, protecting against dust and water jets. The operational temperature range from -40°C to 70°C enables performance in extreme automotive conditions.

The product complies with industry standards USCAR-2, USCAER-37, and LV-215, reflecting its industrial quality and reliability. With dimensions of 91mm width, 73.5mm height, and 47.9mm depth, the device is designed to be compact yet effective.

Rated current: 125A at 690V voltage. IP67 and IP69K ingress protection ensure suitability for rough environments. Integrated HVIL with a two-stage lever improves safety during servicing. Flange mount type and straight orientation for easy installation.

Durability of over 50 mating cycles for long-term use. Operates reliably between -40°C and 70°C. Conforms to USCAR-2, USCAER-37, and LV-215 standards for quality assurance. Compact dimensions with orange color for high visibility.

Ideal for industrial and automotive electrical maintenance, this EV service disconnect is a high-performance solution ensuring safe and efficient battery pack servicing. Explore more automotive electrical connectors in the EnvMart catalog for related components and accessories.

Explore more products in our EV Service Disconnects category.
