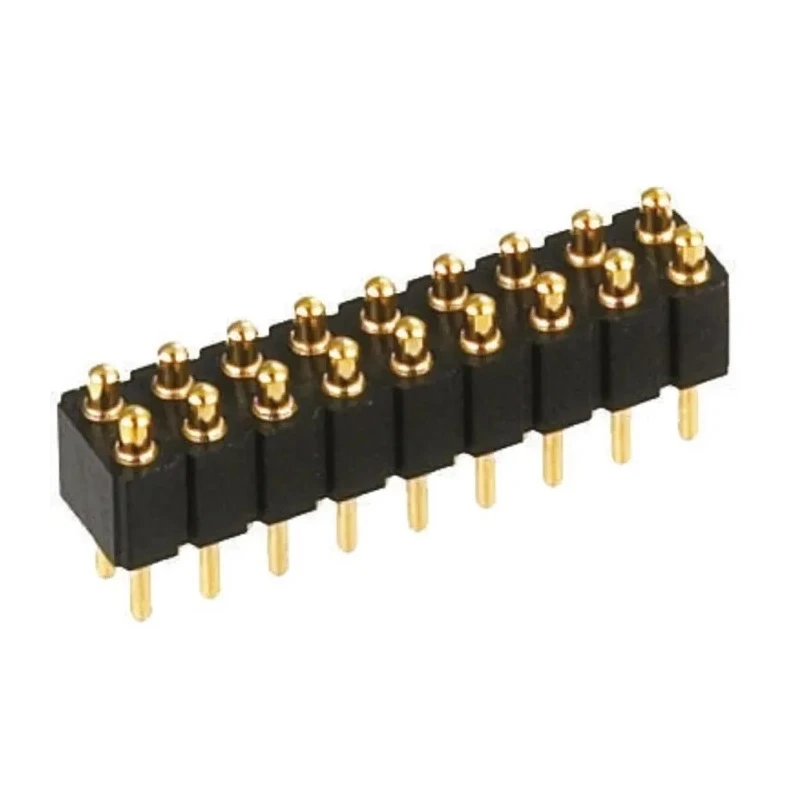

Preci-Dip 813 Series Straight Through Hole Spring Loaded Connector, 20 Contacts, 2.54 mm Pitch, 2 Row 813-S1-020-10-015101

Preci-Dip 813-S1-020-10-015101 is a high-quality straight through hole spring loaded connector designed for PCB applications demanding reliable and stable electrical connections.

This connector features 20 spring-loaded contacts arranged in 2 rows with a 2.54 mm pitch, suitable for through hole mounting, which facilitates ease of assembly on printed circuit boards.

The housing is constructed from fibreglass reinforced polyethylene terephthalate, providing mechanical strength, thermal stability, and flame retardancy in compliance with UL 94V-0 rating.

Brass contacts plated with gold ensure low contact resistance and excellent corrosion resistance, contributing to durable and consistent signal integrity. The connector supports a voltage rating of 150 V and a current rating of 3.5 A, making it suitable for a wide range of electronic and industrial applications.

It can operate reliably in extreme temperature conditions, from -55°C to 125°C, allowing usage in harsh environments. The shrouded design safeguards the contacts from damage and contamination, enhancing overall connector durability and connection security.

This product is made in Switzerland, reflecting superior manufacturing quality and precision engineering standards. The spring-loaded contacts guarantee low and stable electrical resistance without micro-discontinuities during vibration or motion.

The plunger stroke length is 1.4 mm, providing reliable contact pressure and connection stability. The connector is a perfect alternative to conventional connection methods for demanding electrical multipoint connections.

Widely used in industrial, manufacturing, electronics, and laboratory settings requiring robust PCB Connectors. Explore a wide range of connectors and electronic components at EnvMart, where quality and reliability meet industrial demand.
