Amphenol Industrial EV Service Disconnect Plug-In Mini Manual Service Disconnect MSD 1500V 170A IP67/IP69K MINIMSDM000

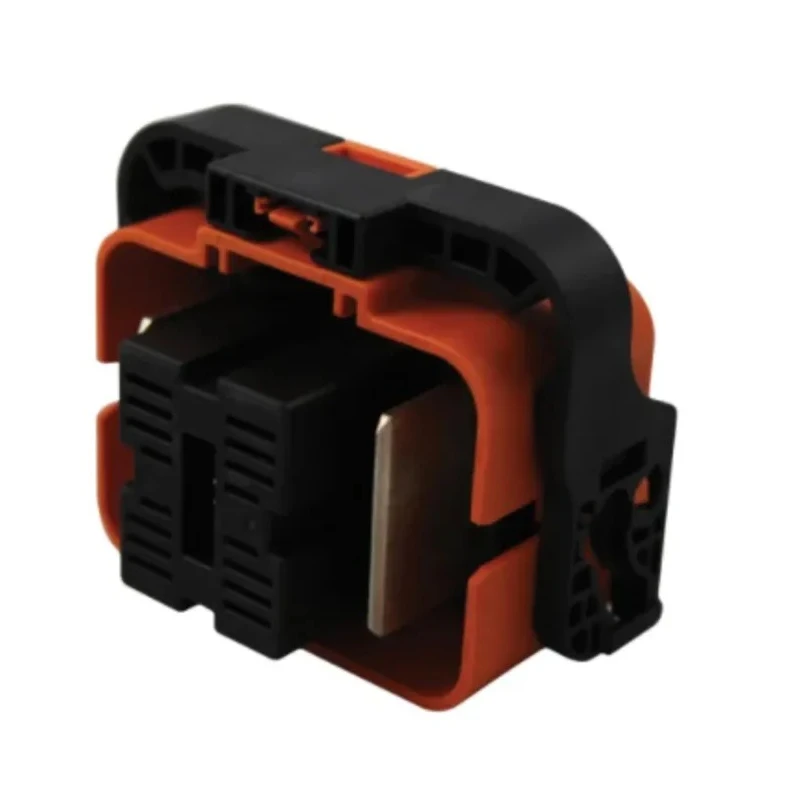

Amphenol Industrial MINIMSDM000 is a plug-in Mini Manual Service Disconnect designed specifically for high voltage battery packs in Plug In Hybrid Electric Vehicles (PHEV). This EV Service Disconnect offers a compact and efficient solution to safely disconnect the battery pack without the need for specialist tools.

The device features a High Voltage Interlock Loop (HVIL) implemented through a two-stage lever mechanism that opens the HVIL circuit prior to the separation of the high voltage contacts. This design provides enhanced safety by protecting against unintended disconnection and short circuits.

With a current rating of 170A and an operating voltage of 1500V, the MINIMSDM000 is engineered to meet demanding automotive electrical requirements. Its ingress protection ratings of IP67 and IP69K ensure high durability and reliable operation even in harsh environmental conditions, including moisture and dust exposure.

The product supports operating temperatures from -40°C up to 70°C and features a flange mount type for secure installation. The connector is of a mini manual service disconnect type, with male contact and connector gender, and is finished in bright orange for easy identification during maintenance.

Designed to withstand more than 50 mating cycles, the MSD offers long-term durability and cost-effectiveness as a standard replacement. It also complies with recognized industry standards including USCAR-2, USCAER-37, and LV-215, assuring quality and safety for automotive applications.

Designed for use with high voltage battery packs in PHEVs. Two-stage lever opens HVIL circuit before contact separation. Compact, cost-effective design with durability over 50 mating cycles. Rated for 170A current and 1500V operating voltage.

Ingress protection rated at IP67 and IP69K for harsh environments. Operates in temperature range from -40°C to 70°C. Flange mount type with straight orientation and male contact gender. Bright orange color improves identification and safety.

Meets USCAR-2, USCAER-37, LV-215 automotive standards.

This Amphenol Industrial Mini MSD is ideal for automotive, industrial, and manufacturing environments that require secure disconnection of high voltage battery packs. Its robust design and compliance with global standards make it a trusted choice for EV service disconnect applications.
