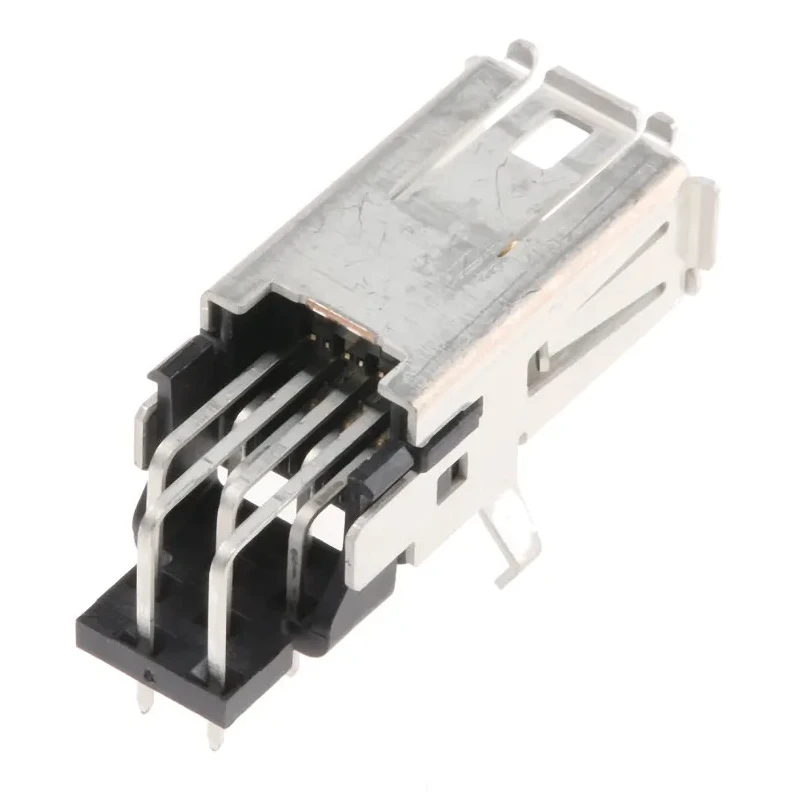

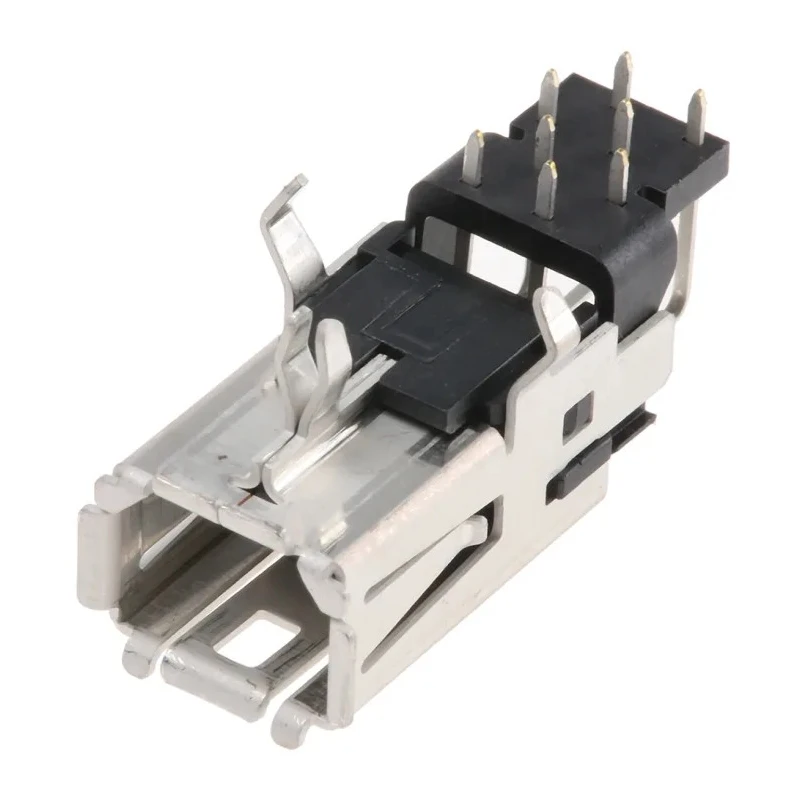

TE Connectivity Through Hole Right Angle Mini I/O Connector Female Unshielded 30 V 0.5 A 8 Positions 1-2040537-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity Through Hole Right Angle Mini I/O Connector Female Unshielded 30 V 0.5 A 8 Positions 1-2040537-1

Name: TE Connectivity Through Hole Right Angle Mini I/O Connector Female Unshielded 30 V 0.5 A 8 Positions 1-2040537-1
Brand: TE Connectivity
SKU: 216534
Price: 9.22 USD
Availability: InStock



Category Mini I/O Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	China
Voltage	30 V
Brand	TE Connectivity
Colour	Black
Orientation	Right Angle
Current	0.5 A
Height	7.4mm
Depth	15.85mm
Connector Type	Modular Jack
Width	11.41mm
Mount Type	Through Hole
Housing Material	Thermoplastic
Contact Material	Copper Alloy
Durability	1500 cycles
Termination Type	Solder
No. of Positions	8
Shield Type	Unshielded
Contact Gender	Female
Connector Gender	Female
706-0220 and 703-9660	Through-hole configuration DIP/H-Type
706-0214 and 706-0223	SMT configuration 0.635 mm pitch pads

Key Features

This connector features a through-hole mounting type providing secure attachment to PCB boards.
The right angle orientation optimizes space usage within electronic assemblies.
Constructed with a thermoplastic housing for durability and copper alloy contacts for reliable conductivity.
Unshielded design suits non-ethernet based protocols requiring compact connection.
Durability rated at 1500 mating cycles, ensuring long-lasting performance.
Compact dimensions of 7.4mm height, 11.41mm width, and 15.85mm depth allow integration into compact designs.
Black color housing supports aesthetic and functional electronic design requirements.
Manufactured in China adhering to high standards though no specific certifications.

Product Description

TE Connectivity 1-2040537-1 Through Hole Right Angle Mini I/O Connector Female, Unshielded, rated for 30 V and 0.5 A, is a compact modular jack connector designed for robust industrial electronic applications. It features a through-hole mount and right angle orientation to enable efficient PCB layout in space-constrained environments.

This connector utilizes a thermoplastic housing combined with copper alloy female contacts to provide durability and reliable electrical performance. The unshielded type is suitable for various non-Ethernet based industrial protocols requiring compact, secure connection solutions.

The miniature size of the Mini I/O connector (7.4mm height, 11.41mm width, 15.85mm depth) helps accommodate dense electronic assemblies without compromising functionality. It supports 8 contact positions and supports up to 1500 mating cycles, ensuring operational longevity in demanding environments.

Designed and manufactured to meet the needs of industrial, electronic components, power & connectors systems, this product is ideal for applications including industrial control, automation, data communication equipment, and telecom connectors.

This connector features a through-hole mounting for firm PCB attachment. Right angle orientation for space optimization in printed circuit boards. Thermoplastic housing ensures structural integrity and environmental resistance.

Copper alloy contacts provide excellent conductivity and corrosion resistance. Unshielded design suitable for non-RJ45 Ethernet based industrial protocols. Rated voltage of 30 V and current of 0.5 A compliant with typical industrial usage.

Durability rated for 1500 mating cycles for long service life. Compact dimensions support miniaturization and high density PCB layouts. Manufactured in China, this connector supports reliable industrial applications requiring compact modular jack connectors with robust mechanical and electrical properties.

Explore more products in our Mini I/O Connectors category for comprehensive industrial and electronic connectivity solutions.
