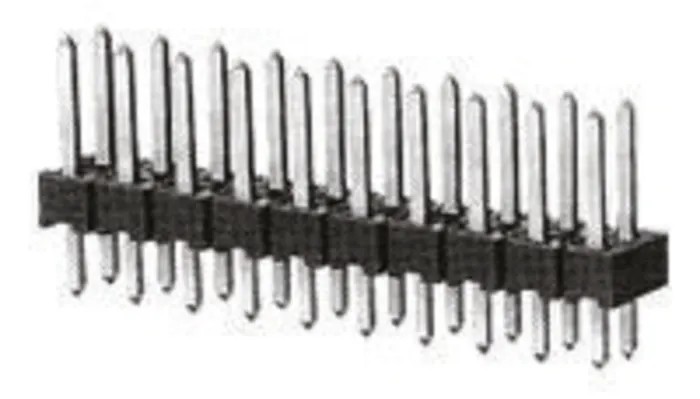

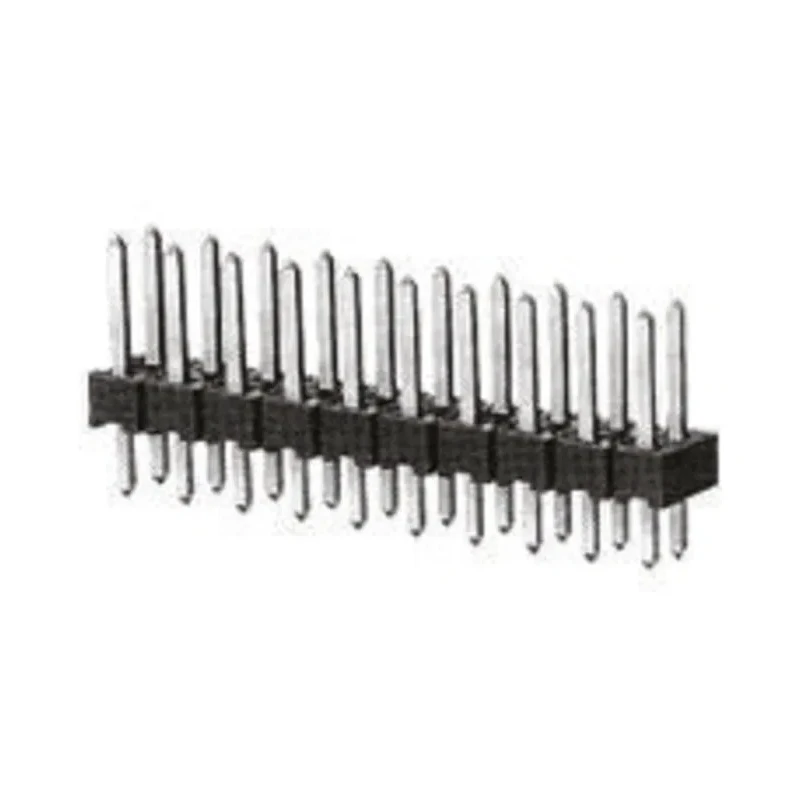

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 40 Contacts, 2.54 mm Pitch, 2 Rows 2-826942-0

TE Connectivity 2-826942-0 AMPMODU MOD II Series Straight Through Hole Pin Header features 40 male contacts arranged in 2 rows with a 2.54 mm pitch, unshrouded for flexible use in PCB applications. It utilizes a thermoplastic housing material and brass contacts plated with tin, facilitating secure, reliable solder connections through a through-hole mount type.

This pin header supports a continuous current rating of 3 amperes and withstands voltages up to 750 volts, making it suitable for a variety of industrial and electronic uses. It operates within a temperature range from -65°C to 105°C, ensuring robust performance under demanding environments.

The contact design includes a 3.2 mm tail pin length and a 5.8 mm mating pin length, optimizing mechanical and electrical connection stability. The unshrouded style allows for easy connector mating and disconnection, while the breakaway format enables customization of header strip length without waste.

Common applications include automotive controls, industrial machinery, test equipment, telecommunications, computers, medical instruments, and storage devices. This pin header is part of the versatile AMPMODU Interconnect System, which delivers a compact and economical solution for board-to-board and wire-to-board connections in automation and control systems.

Suitable for board-to-board and wire-to-board connector systems. Made with thermoplastic housing and brass contacts with tin plating for durability. Supports a current rating of 3A and voltage rating up to 750V. Designed for through-hole mounting with solder termination.

Operates reliably from -65°C to 105°C. Includes male contact pins with 3.2 mm tail pin length and 5.8 mm mating pin length. Unshrouded design allows easy connector mating and versatility. Breakaway header strips can be sized to fit required applications.
