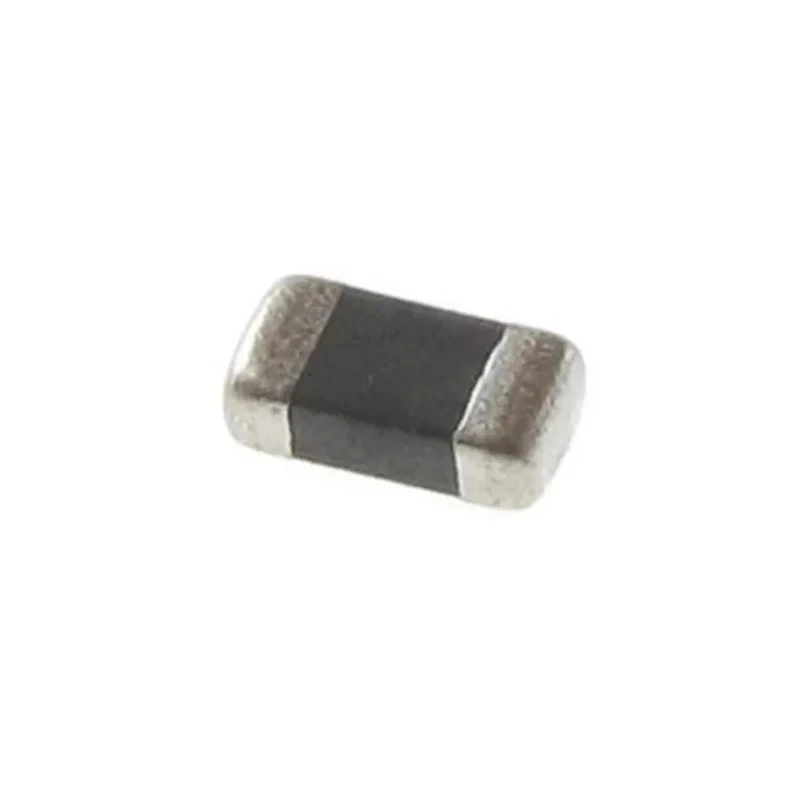

Murata Ferrite Bead , 0.85 mm Height, 2 mm Length, 1.25 mm Depth, 0805 Chip, 600 Ω Impedance at 100 MHz BLM21AG601SH1D

The Murata BLM21AG601SH1D Ferrite Bead is a compact surface mount EMI suppression component in an 0805 chip package. It is engineered to offer 600 Ω impedance at 100 MHz, ideal for filtering high-frequency noise in electronic circuits and for general EMI protection applications. The chip bead design is optimized for use in unstable ground circuits, minimizing the risk of signal distortion and resonance, particularly in automotive and industrial environments.

This device is rated for a maximum current of 600 mA and features a maximum DC resistance of only 0.21 Ω. The bead's nickel barrier external electrodes deliver excellent solder heat resistance and durability during automated PCB mounting. Its ferrite construction assures reliable performance and long service life, especially in environments where thermal and electrical stresses are common.

The BLM21AG601SH1D device is qualified according to automotive standard AEC-Q200 and is suitable for safety-critical and powertrain applications. Its operational temperature range from -55°C to 125°C makes it suitable for demanding environments, and its RoHS and REACH compliance guarantee safe use in modern designs. Typical applications include automotive electronics, industrial equipment, and any circuits requiring robust EMI suppression.

Physical dimensions of the bead are 2 mm in length, 0.85 mm in height, and 1.25 mm in depth, allowing for space-efficient integration into circuit boards alongside other surface mount components.

This ferrite bead is part of the Murata BLM21A series, renowned for its effectiveness in noise reduction and flexible application across both industrial and automotive sectors. Explore a wide range of Murata Ferrite Beads and passive EMI components in the Electronics Components category on EnvMart.
