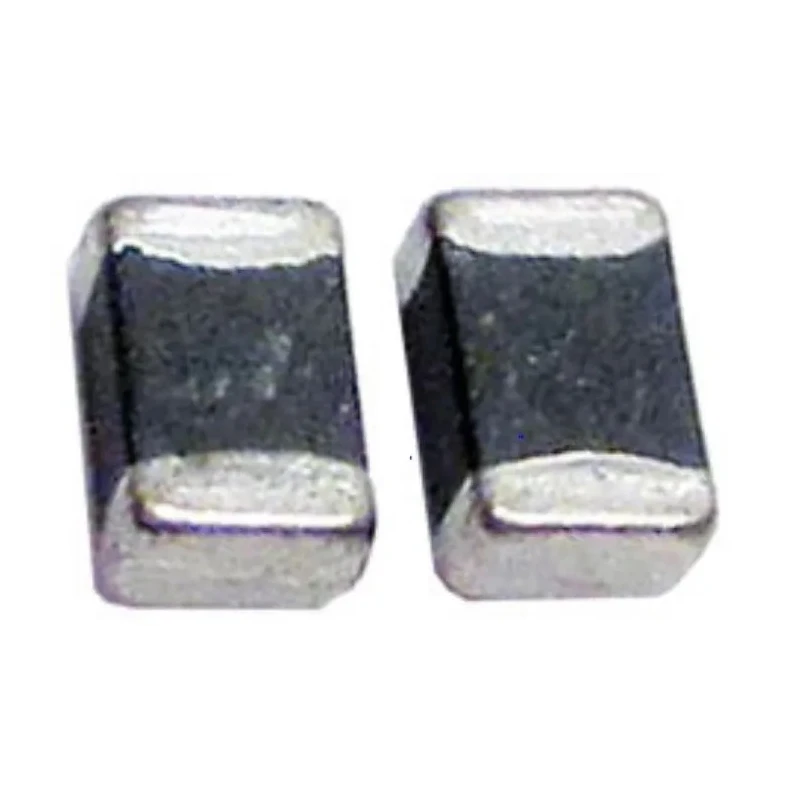

Abracon Ferrite Bead 0.85 mm Surface Mount Chip Bead 0805 Package, 80 Ω Impedance at 25 MHz ACML-0805-800-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon Ferrite Bead 0.85 mm Surface Mount Chip Bead 0805 Package, 80 Ω Impedance at 25 MHz ACML-0805-800-T

Name: Abracon Ferrite Bead 0.85 mm Surface Mount Chip Bead 0805 Package, 80 Ω Impedance at 25 MHz ACML-0805-800-T
Brand: Abracon
SKU: 114542
Price: 0.03 USD
Availability: InStock



Category Ferrite Beads Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Material	Ferrite
Height	0.85mm
Length	2mm
Model	ACML-0805-800-T
Depth	1.25mm
Packaging	Tape & Reel
Mount Type	Surface
Current Rating	1A
Series	ACML-0805
Maximum Operating Temperature	125°C
Package Type	0805
Sub Type	Chip Bead
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS/RoHS II
Maximum DC Resistance	0.1Ω
Impedance at 25 MHz	80Ω

Key Features

Compact 0805 package suitable for surface mounting.
Nickel barrier terminations provide excellent solder heat resistance.
Maximum DC resistance is 0.1 Ω, ensuring low power loss.
Operating temperature range from -55°C to 125°C supports harsh conditions.
RoHS/RoHS II compliant and lead-free for environmental safety.
Suitable for video, audio, automotive, and communication equipment applications.
Multilayer monolithic construction offers high reliability in EMI filtering.
Tape and reel packaging supports automated PCB assembly processes.

Product Description

The Abracon ACML-0805-800-T ferrite bead is a high-quality surface mount chip bead featuring a compact 0805 package with dimensions of 2 mm length, 0.85 mm height, and 1.25 mm depth. It offers an impedance of 80 Ω at 25 MHz to effectively suppress EMI noise in sensitive electronic circuits.

Constructed using multilayer monolithic ferrite material, this chip bead provides reliable performance in various industrial applications including video equipment, audio devices, automotive electrical systems, and communication hardware. The nickel barrier terminations enable excellent solder heat resistance, making it compatible with flow soldering and RoHS-compliant reflow soldering processes.

The device operates within a broad temperature range from -55°C to 125°C, ensuring stable functionality under challenging environmental conditions. Its maximum DC resistance of 0.1 Ω minimizes power loss, and a current rating of 1 A accommodates typical circuit currents.

Packaged in tape and reel form, the ACML-0805-800-T facilitates efficient assembly in automated manufacturing lines. The product complies fully with RoHS and RoHS II environmental directives and is lead-free to support environmentally responsible production.

Compact 0805 surface mount package for ease of PCB integration. High EMI suppression with 80 Ω impedance at 25 MHz. Wide operating temperature range of -55°C to 125°C. Low maximum DC resistance of 0.1 Ω reduces power losses.

Manufactured with multilayer monolithic ferrite material for reliability. Nickel barrier terminations ensure excellent solder heat resistance. Suitable for automotive, video, audio, and communication equipment filtering.

Tape and reel packaging enables automated assembly. RoHS compliant and lead-free for ecological compliance.

This product is ideal for industrial, automotive, consumer electronics, and communication equipment requiring effective EMI noise filtering and reliable surface mount components. Browse the Ferrite Beads category for additional EMI filter solutions on EnvMart.
