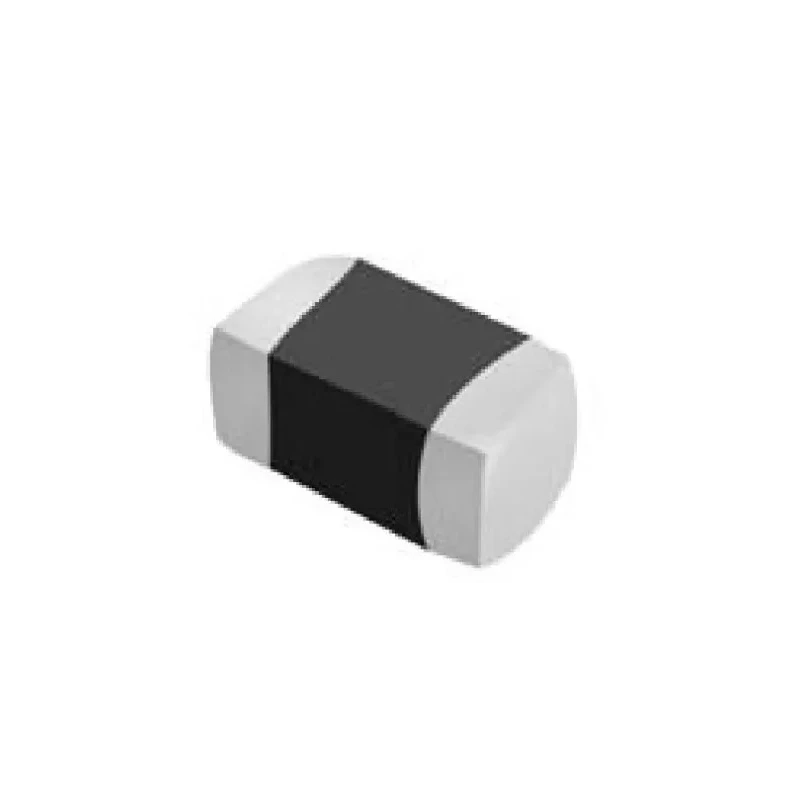

Abracon 0603 Shielded Surface Mount Inductor with Ferrite Core 2.2 μH Flat Wire Winding ±20% 250 mA Idc ASMPH-0603-2R2M-T

Abracon ASMPH-0603-2R2M-T is a shielded surface mount inductor with a ferrite core, featuring a 2.2 μH inductance and ±20% tolerance. It supports a maximum DC current of 250 mA and has a maximum DC resistance of 0.38 ohms, making it suitable for efficient signal filtering and power management applications.

This inductor is constructed with flat wire winding and is molded for enhanced durability. The compact 0603 package size with dimensions of 1.6mm length, 0.8mm height, and 0.8mm depth allows for space-saving PCB designs. Its magnetically shielded structure effectively eliminates cross coupling, improving performance in sensitive circuits.

The product is designed for surface mount termination and is supplied in tape and reel packaging for automated assembly processes. It operates reliably in a wide temperature range from -55°C to 125°C, making it ideal for demanding industrial, telecommunications, and portable electronic applications including mobile phones, MP3 players, digital cameras, and other handheld devices.

This monolithic inductor provides excellent solderability and heat resistance for robust manufacturing. Compliant with RoHS directives, it meets environmental and safety standards for electronic components.

Features a ferrite core for high magnetic permeability. Flat wire winding construction enhances inductance and quality factor. Compact 0603 package size facilitates miniaturization of electronic assemblies. Magnetic shielding minimizes electromagnetic interference with neighboring components.

Broad temperature operating range ensures suitability for various industrial and consumer electronics. Low DC resistance optimizes power efficiency and thermal performance. Supplied in tape & reel format for efficient high-volume manufacturing.

Compliance with RoHS supports environmentally responsible manufacturing. Explore more Surface Mount Inductors and related electronic components on EnvMart for your industrial and commercial electronics projects.
