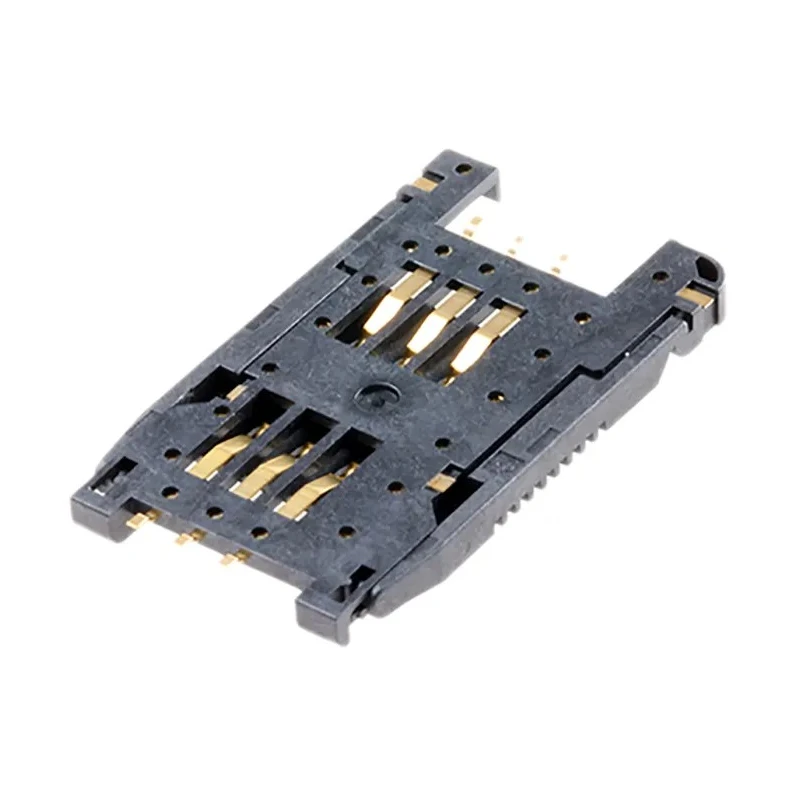

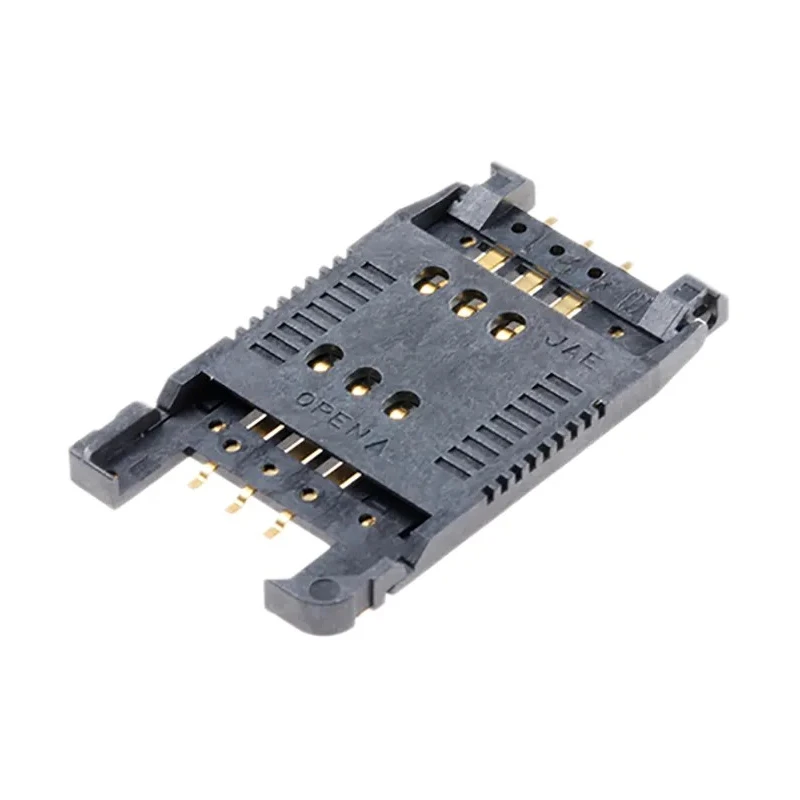

JAE SF7 6 Way SIM Memory Card Connector, Solder Type, Surface Mount, Gold over Nickel Plating SF7W006S1BE

Free Delivery in India | Lowest Global Shipping Charges

JAE SF7 6 Way SIM Memory Card Connector, Solder Type, Surface Mount, Gold over Nickel Plating SF7W006S1BE



Category Electronic Components, Power & Connectors Brand JAE Condition New

Specifications

Country of Origin	India
Brand	JAE
Orientation	Straight
Model	SF7W006S1BE
Gender	Male
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Copper Alloy
Series	SF7
Termination Type	Solder
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	2.54mm
Contact Plating	Gold over Nickel
Number of Contacts	6
Card Type	SIM

Key Features

The connector supports 6 contacts arranged in 2 rows with a 2.54mm pitch.
Hinged slide lock mechanism allows easy card insertion and removal.
Contact material is copper alloy with gold over nickel plating for reliable conductivity and corrosion resistance.
Housing is made from liquid crystal polymer providing high durability and a temperature range from -40°C to 90°C.
The connector has a mounting height of 2.3mm and a straight orientation for flush PCB assembly.
Moulded plastic positioning boss prevents card mis-insertion.
Designed to comply with GSM11.11 SIM card standards and compatible with UIM cards for next-generation W-CDMA networks.
The cover is bendable up to 180 degrees for convenient operation.

Product Description

JAE SF7W006S1BE is a 6 Way SIM Memory Card Connector designed for telecommunication applications using GSM and W-CDMA standards. This surface mount connector features a solder termination and a hinged slide lock mechanism to ensure secure card retention and easy operation.

The connector has 6 gold-plated copper alloy contacts arranged in 2 rows at a 2.54mm pitch, delivering excellent electrical performance and corrosion resistance. The housing, made from durable liquid crystal polymer, withstands operating temperatures from -40°C to 90°C, making it suitable for a variety of industrial and electronic environments.

The SF7 series connector incorporates a moulded plastic positioning boss that prevents incorrect card insertion, improving reliability and reducing user errors. Its mounting height of 2.3mm supports space-efficient PCB designs with a straight orientation for easy card access.

This connector is ideal for applications in GSM telecommunications equipment, embedded SIM holders, and advanced W-CDMA UIM card readers. The hinged cover can bend up to 180 degrees, allowing convenient card insertion and removal during maintenance or replacement.

The product is new and intended for installation in industrial, telecommunications, and electronics manufacturing sectors. The connector supports 6 contacts arranged in 2 rows with a 2.54mm pitch. Hinged slide lock mechanism allows easy card insertion and removal.

Contact material is copper alloy with gold over nickel plating for reliable conductivity and corrosion resistance. Housing is made from liquid crystal polymer providing high durability and a temperature range from -40°C to 90°C.

The connector has a mounting height of 2.3mm and a straight orientation for flush PCB assembly. Moulded plastic positioning boss prevents card mis-insertion. Designed to comply with GSM11.11 SIM card standards and compatible with UIM cards for next-generation W-CDMA networks.

The cover is bendable up to 180 degrees for convenient operation.

Available for applications in industrial electronics, telecommunications, mobile device manufacturing, and embedded systems requiring SIM card connectivity. Explore the range of JAE memory card connectors at EnvMart for comprehensive solutions.
