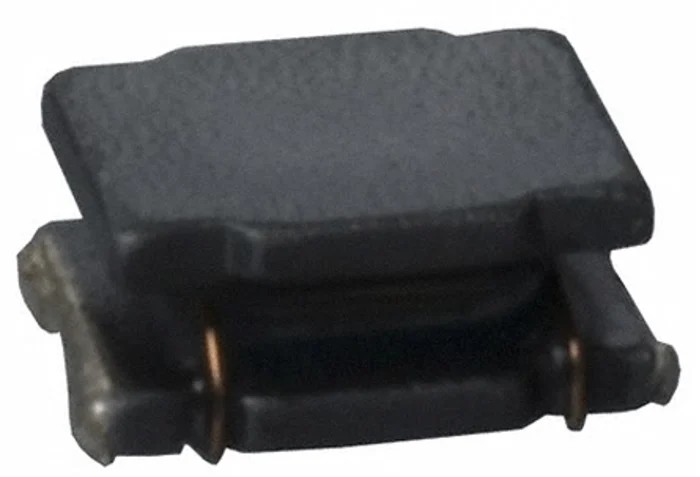

Murata LQH Series Shielded Wirewound Surface Mount Inductor, Ferrite Core, 15 μH ±20 %, 1.6 A, 5050 Package LQH5BPN150MT0L
Specifications
| Country of Origin | India |
|---|---|
| Brand | Murata |
| Height | 2mm |
| Length | 5mm |
| Model | LQH5BPN150MT0L |
| Depth | 5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 15μH |
| Standards/Approvals | RoHS |
| Package/Case | 5050 |
| Maximum DC Current | 1.6A |
| Maximum DC Resistance | 187mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 18MHz |
| Inductor Construction | Wirewound |
Key Features
- 15 μH inductance with ±20 % tolerance for precision circuit requirements.
- Shielded wirewound construction reduces electromagnetic interference.
- Ferrite core material ensures stability and reliable performance across temperature ranges.
- Maximum DC current rating of 1.6 A supports high-current power supply designs.
- 5050 surface-mount package for automated PCB assembly processes.
- RoHS compliant for environmental and regulatory assurance.
- Surface mount termination style simplifies installation.
- Low maximum DC resistance of 187 mΩ improves efficiency.
Product Description
Murata LQH5BPN150MT0L is a shielded wirewound surface mount inductor designed for advanced electronic circuits requiring reliable Ferrite core inductance. With 15 μH inductance and ±20 % tolerance, this component delivers precision for power supply booster circuits and other demanding SMD applications.
The wirewound construction, shielded design, and ferrite core contribute to minimized electromagnetic interference and stable performance even under rigorous conditions. The surface mount termination style facilitates convenient installation across automated manufacturing lines, making it suitable for modern circuit assembly.
Rated for 1.6 A maximum DC current and a low maximum DC resistance of 187 mΩ, this inductor supports efficient power transmission and high-current designs. The 5050 package, measuring 5 mm in length, 5 mm in depth, and 2 mm in height, fits compactly on PCBs and is delivered on embossed tape for production needs.
Murata's LQH Series inductors are commonly used in digital cameras, mobile phones, TVs, games machines, and other consumer or industrial electronics. Their RoHS compliance ensures adherence to environmental standards required in global manufacturing.
The wide operating temperature range from -40°C to 125°C guarantees reliable operation in both commercial and industrial environments. With additional features like surface mount style, shielded structure, and ferrite core materials, the LQH5BPN150MT0L excels in advanced circuit reliability and performance.
Suitable use cases span industrial automation, consumer electronics, power supply manufacturing, circuit design, and electronics assembly. For more inductor solutions and Murata products, explore the Surface Mount Inductor category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 15 μH with a tolerance of ±20%.
It has a maximum DC current rating of 1.6 A, making it suitable for high-current power supply designs.
The dimensions of the 5050 package are 5 mm in length, 5 mm in depth, and 2 mm in height.
The maximum DC resistance is 187 mΩ, which helps improve efficiency in circuit designs.
This inductor operates within a temperature range of -40°C to 125°C, ensuring reliable performance in various environments.
It features a wirewound construction, which contributes to its performance characteristics.
Yes, this model is RoHS compliant, adhering to environmental standards required in global manufacturing.
The maximum self-resonant frequency is 18 MHz, which is important for high-frequency applications.
It uses a surface mount termination style, simplifying installation on PCBs.
This inductor is suitable for applications in digital cameras, mobile phones, TVs, and other consumer or industrial electronics.
The core material is ferrite, which ensures stability and reliable performance across temperature ranges.
It is delivered on embossed tape, which is convenient for automated manufacturing processes.
