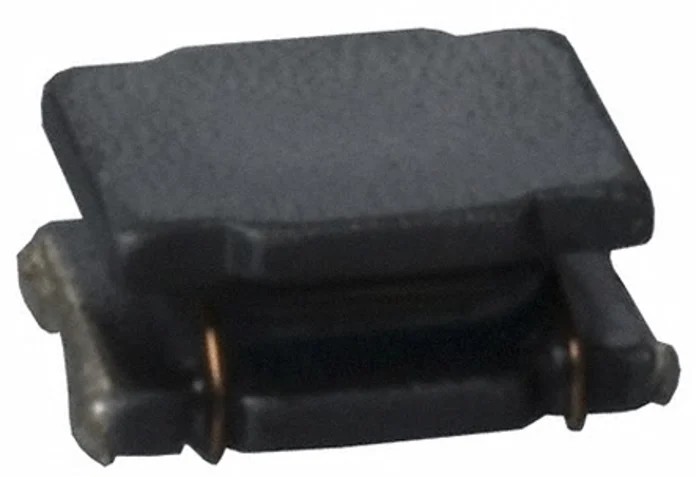

Murata LQH32PN4R7NNCL Shielded Wirewound Surface Mount Inductor, Ferrite Core, 3225 Case, 4.7 μH ±30%, 1.6A, SMD
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Murata |
| Height | 1.55mm |
| Length | 3.2mm |
| Model | LQH32PN4R7NNCL |
| Depth | 2.5mm |
| Packaging | Embossed Tape |
| Series | LQH |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 3225 |
| Maximum DC Current | 1.6A |
| Pin Count | 2 |
| Maximum DC Resistance | 155mΩ |
| Inductance Tolerance | ±30 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 40MHz |
| Inductor Construction | Wirewound |
Key Features
- Shielded wirewound construction ensures high performance and low electromagnetic interference.
- Inductance value of 4.7 μH with ±30% tolerance for versatile circuit applications.
- Ferrite core and resin coating offer robustness and improved mechanical strength.
- Surface mount configuration with 3225 package for easy PCB integration.
- Maximum DC current handling capability of 1.6 A suitable for power booster circuits.
- Operating temperature range from -40°C to +125°C provides reliability over wide thermal gradients.
- RoHS compliant and compatible with automated soldering processes.
Product Description
Murata LQH32PN4R7NNCL is a shielded wirewound surface mount inductor designed for compact, high-performance electronic applications requiring precise and stable inductance. With a ferrite core and wirewound construction, it minimizes electromagnetic interference (EMI) while offering enhanced mechanical strength thanks to resin coating. Featuring an inductance value of 4.7 μH and a wide ±30% tolerance, this SMD chip inductor caters to a variety of filtering and energy storage applications.
The 3225 package provides a small footprint suitable for automatic placement on printed circuit boards. Its maximum DC current of 1.6 A allows operation in power supply booster circuits, making it ideal for advanced device designs focusing on efficiency and reliability. The low DC resistance of 155 mΩ and high self-resonant frequency (40 MHz) further ensure stable performance in high-frequency environments.
The inductor is qualified for operation between -40°C and +125°C, ensuring excellent reliability across extreme temperatures. With RoHS compliance and compatibility with standard soldering processes, it streamlines integration into environmentally conscious and automated manufacturing settings.
The Murata LQH32PN series is commonly applied in digital cameras, mobile phones, TVs, gaming machines, and other consumer electronics, as well as power supply circuits in industrial and automotive electronics requiring non-standard SMT inductors (chokes).
Mechanical features include a core material made of ferrite, a height of 1.55 mm, a depth of 2.5 mm, and a length of 3.2 mm. The shielded wirewound construction ensures reduced noise, and the solder termination style supports process flexibility.
As part of the Murata LQH series, this chip inductor is engineered for demanding electronics and industrial settings, offering long-lasting performance with minimal maintenance. It is a preferred choice for engineers designing robust filtering and booster circuits where reliability and compactness are paramount.
Browse more specialized SMD inductors and Murata passive components in the Surface Mount Inductor category on EnvMart for advanced circuit solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 4.7 μH with a tolerance of ±30%.
It has a maximum DC current handling capability of 1.6 A.
This unit operates within a temperature range of -40°C to +125°C.
The dimensions are 3.2 mm in length, 2.5 mm in depth, and 1.55 mm in height.
The inductor features a ferrite core material.
The maximum self-resonant frequency is 40 MHz.
It has a wirewound construction, which helps minimize electromagnetic interference.
The termination style is solder, which supports standard soldering processes.
Yes, it is RoHS compliant.
The inductor is packaged in embossed tape for easy handling and integration.
This inductor is commonly used in digital cameras, mobile phones, TVs, and power supply circuits in industrial and automotive electronics.
The maximum DC resistance is 155 mΩ.
