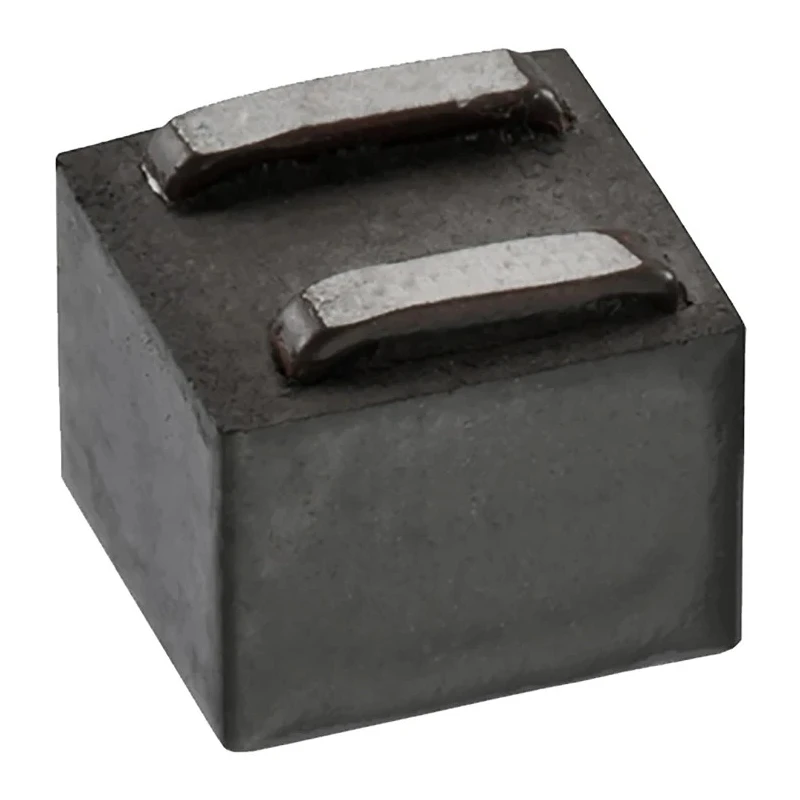

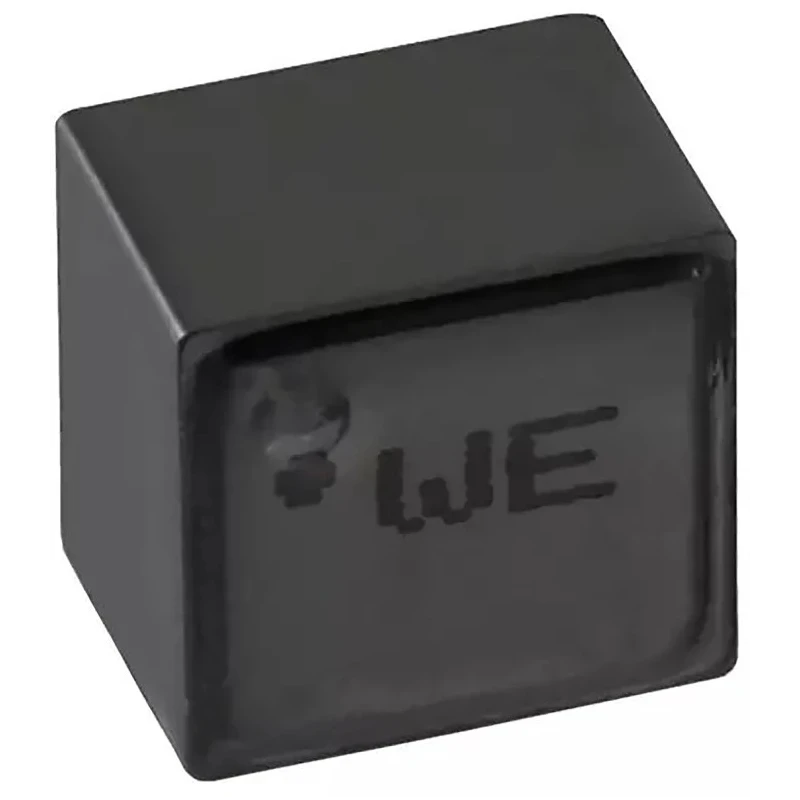

Wurth Elektronik WE-XHMI 1510 Shielded Wirewound Surface Mount Inductor with Ferrite Core 22 μH ±20% 8A 74439370220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 9.1mm |
| Length | 16.4mm |
| Depth | 15.4mm |
| Packaging | Tape & Reel |
| Series | WE-XHMI |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | RoHS, JEDEC JS709B, REACH, IEC 61249-2-21 |
| Package/Case | 1510 |
| Maximum DC Current | 8A |
| Pin Count | 2 |
| Maximum DC Resistance | 13.3mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4.5MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Magnetically shielded SMD wirewound inductor for high transient currents.
- 22 μH inductance with ±20% tolerance and up to 8A DC current.
- Robust ferrite core reduces copper losses and enhances saturation current capability.
- Packaged in tape & reel for automated surface mount PCB processes.
- Wide operating temperature range from -40°C to +125°C for automotive and industrial use.
- AEC-Q200 standard provides reliability in challenging environments.
- Low DC resistance (13.3 mΩ) improves energy efficiency.
- High self-resonant frequency (4.5 MHz) supports fast-switching circuits.
Product Description
The Wurth Elektronik WE-XHMI 1510 Shielded Wirewound Surface Mount Inductor (model 74439370220) is expertly designed for demanding power and filtering applications in electronic circuits. Featuring a magnetically shielded and compact SMD construction, this wirewound inductor achieves superior performance in environments requiring low leakage flux noise and high transient current tolerance.
With a 22 μH inductance and a ±20% tolerance, it can handle a maximum DC current of up to 8A, making it well suited for modern power management and DC-DC conversion designs. The ferrite core and flat wire coil construction support minimized copper losses and enable high saturation current, with the inductor capable of enduring transient current spikes. Its low DC resistance of just 13.3 mΩ reduces energy losses, while the high self-resonant frequency of 4.5 MHz boosts its performance across a range of applications.
The device is certified to AEC-Q200 automotive standards, ensuring robust quality for automotive and industrial environments. With an operating temperature range from -40°C to +125°C, this inductor functions reliably in harsh conditions. The surface mount termination style and tape & reel packaging make it ideal for automated PCB assembly.
Its physical dimensions include a 1510 case, 16.4 mm length, 15.4 mm depth, and 9.1 mm height. Moulded construction enhances durability, and the 2-pin configuration allows straightforward integration into circuit boards. Compliance with RoHS, JEDEC JS709B, REACH, and IEC 61249-2-21 guarantees eco-friendly and safe manufacturing standards.
WE-XHMI power inductors are used in battery-powered devices, wireless communication platforms, mainboards, graphic cards, and high-current power supplies. They excel in DC-DC conversion for FPGAs and other critical electronics requiring compact, reliable, and high-current components.
Choose Wurth Elektronik for advanced shielded Surface Mount Inductors that meet stringent automotive and industrial requirements. Browse the EnvMart electronics components category for more passive components and professional-grade SMD inductors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 μH with a tolerance of ±20%.
It can handle a maximum DC current of up to 8A.
The operating temperature range is from -40°C to +125°C.
The maximum self-resonant frequency is 4.5 MHz.
The core material used in this inductor is ferrite.
It is packaged in tape & reel for automated surface mount PCB processes.
The dimensions of this model are 16.4 mm in length, 15.4 mm in depth, and 9.1 mm in height.
The DC resistance is 13.3 mΩ, which helps improve energy efficiency.
Yes, it is certified to AEC-Q200 automotive standards, ensuring reliability in automotive applications.
It complies with RoHS, JEDEC JS709B, REACH, and IEC 61249-2-21 standards.
This inductor features a surface mount termination style.
It is suitable for use in power management, DC-DC conversion designs, battery-powered devices, and wireless communication platforms.
