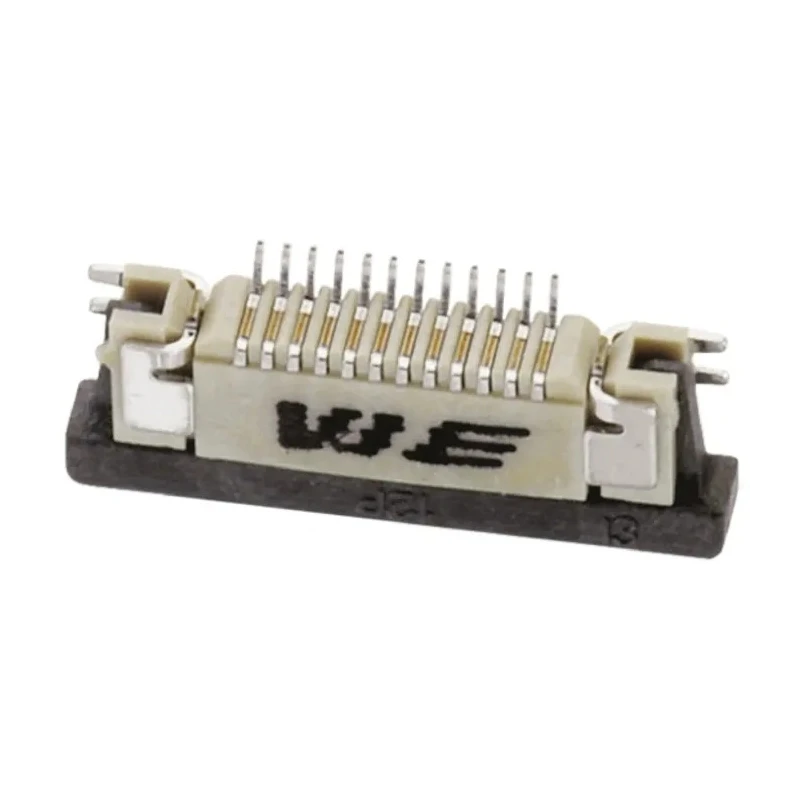

Wurth Elektronik 0.5 mm Pitch 10 Way Straight Male FPC Connector Solder Pin 68711014522

Wurth Elektronik 68711014522 is a 0.5 mm pitch 10 way straight male FPC Connector tailored for wire-to-board electronic connectivity applications. This surface mount type connector uses a Zero Insertion Force (ZIF) mechanism to facilitate easy and secure cable insertions, reducing wear on contacts.

Constructed with phosphor bronze contacts and tin over nickel plating, this connector ensures excellent electrical conductivity and longevity even under repeated mating. The connector is built with a liquid crystal polymer housing that meets UL94-V0 flammability rating, suitable for industrial environments.

Its compact low profile horizontal bottom contact design allows use in tight spaces and compact assemblies. The connector features a locking mechanism for secure connections and supports electrical parameters including a voltage rating of 50 V and a current of 500 mA.

The device supports a single row of 10 contacts spaced at 0.5 mm pitch with a maximum operating temperature of 85°C and minimum of -25°C, making it versatile for use in various electronic manufacturing, industrial equipment, and automation systems.

Features a 0.5 mm pitch and 10 contact points to ensure reliable connectivity. Constructed with phosphor bronze contact material for enhanced durability. Surface mount type with straight orientation and bottom contact position.

Termination by solder pin with a Zero Insertion Force (ZIF) insertion mechanism. Supports voltage up to 50 V and current rating of 500 mA. Includes locking mechanism to secure connection stability. Housing material is advanced liquid crystal polymer providing UL94-V0 flammability rating.

Operating temperature range from -25°C to 85°C suitable for various industrial applications. Contact plating of tin over nickel to prevent corrosion and improve conductivity. Designed for one-row assemblies and capable of 25 mating cycles.

This connector is ideal for industrial electronic component assemblies, power and signal transmission hardware, automation, and control applications where compact and reliable FPC connections are required.
