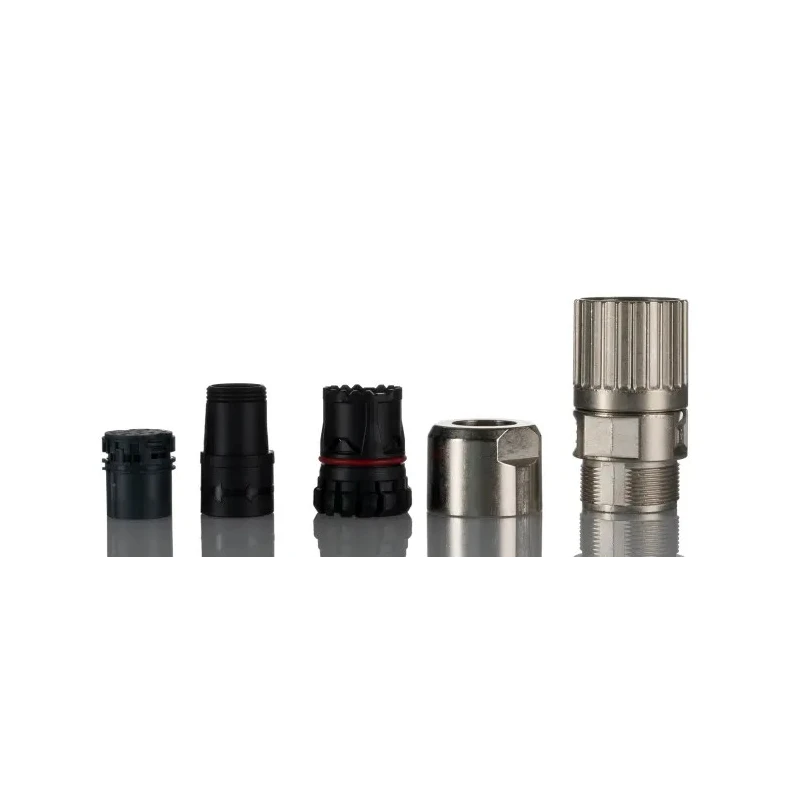

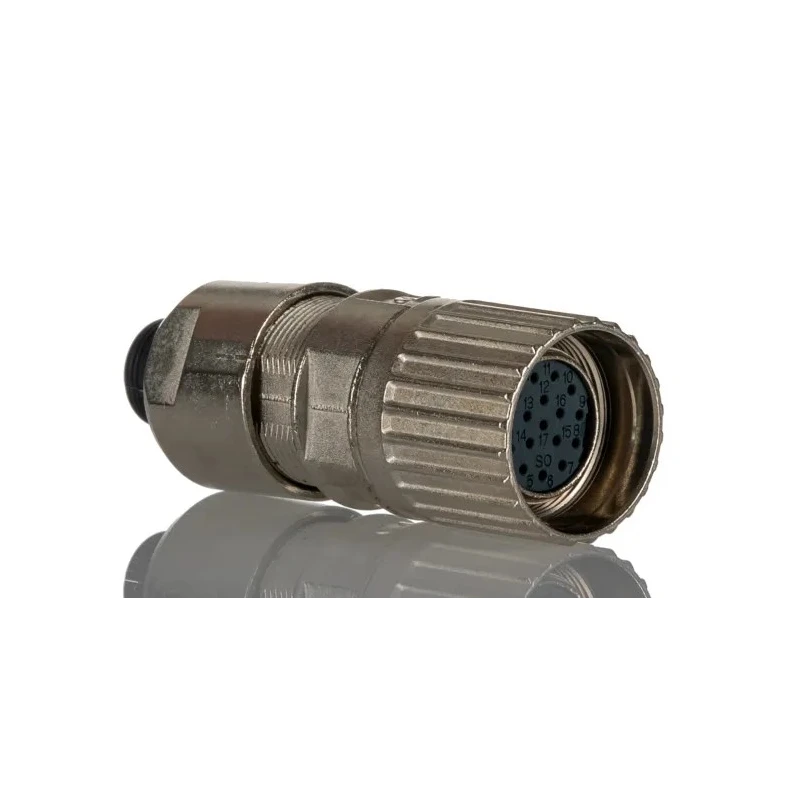

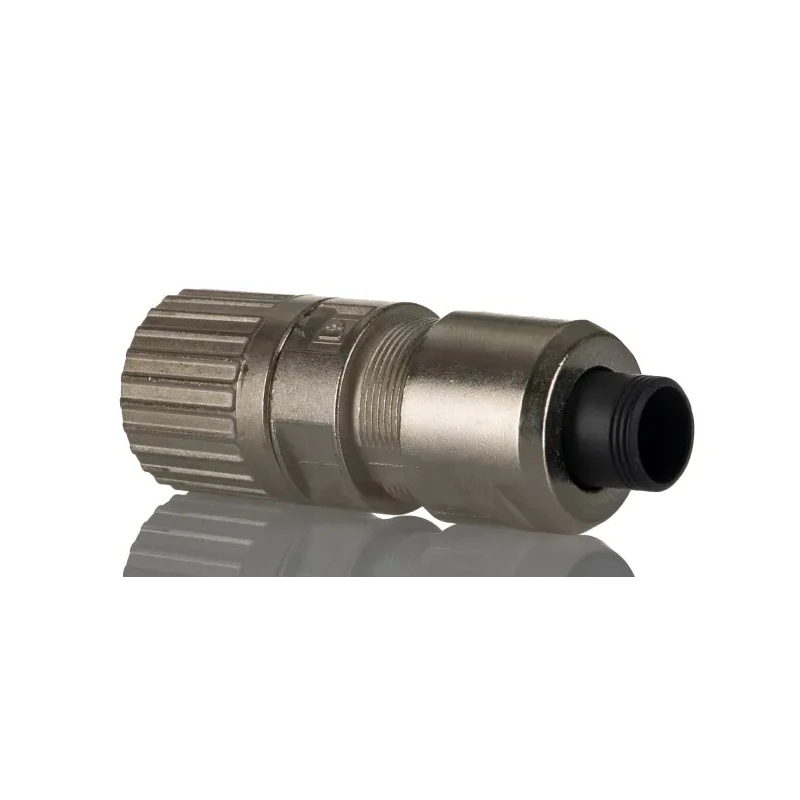

Phoenix Contact Circular Connector, 19 Contacts, Cable, M23 Socket, Female, IP66/IP68/IP69K, Zinc Body, 10A, 150V 1629196
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 150.0V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 10A |
| Model | 1629196 |
| IP Rating | IP66, IP68, IP69K |
| Mount Type | Cable |
| Housing Material | Zinc |
| Series | M23 PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS Compliant |
| Pole Format | 16+2+PE |
| Number of Contacts | 19 |
| Contact Gender | Female |
| Shell Size | 27 mm |
| Connector Size | M23 |
| Plug/Socket | Socket |
| Coding | N |
Key Features
- Designed for cable-mounted signal and power applications.
- Provides 19 contacts and versatile pole format 16+2+PE.
- Rated for 10A current and 150V voltage in industrial use.
- Robust zinc housing with crimp termination for secure connection.
- Female socket, straight orientation and coding N for easy installation.
- Complies with IP66, IP68, IP69K for superior water and dust protection.
- Wide operating temperature -40°C to +105°C supporting harsh conditions.
- Suitable for automation, manufacturing, process equipment and control panels.
Product Description
Phoenix Contact presents the model 1629196 Circular Connector, part of the renowned M23 PRO Series, engineered to support cable-mounted connections in demanding industrial, automation, and control system environments. This connector features a female socket design with 19 contacts, arranged in a flexible 16+2+PE pole format, facilitating various signal and low-power connections across process and plant equipment.
The robust connector body is constructed from zinc, providing high mechanical durability and resistance to corrosion. Designed with crimp termination, the connector safeguards against loose or unreliable electrical contacts while ensuring fast, secure assembly during installation and maintenance cycles.
Its M23 form factor makes it compatible with standard industrial harnesses and panels. The straight orientation with coding N simplifies alignment and prevents incorrect mating. Rated for 10A current and 150V voltage, the connector is well-suited for connecting sensors, actuators, and other field devices requiring secure, high-density wiring.
Offering industry-grade environmental protection, the Phoenix Contact 1629196 connector achieves IP66, IP68, and IP69K ratings, making it waterproof, dustproof, and capable of withstanding harsh cleaning procedures or exposure to challenging conditions. Its operational temperature range from -40°C to +105°C means it remains reliable in both cold storage areas and high-temperature industrial zones.
This connector is frequently used in manufacturing, process automation, robotics, power distribution, and controller solutions, delivering shielded signal integrity and robust power transmission. Applications include machine tool wiring, factory automation, instrumentation panels, and industrial equipment requiring modular connectivity.
Integration is straightforward due to its crimp-style termination, and the female socket design is optimal for cable-to-panel or cable-to-device connections. Its compliance with RoHS substance requirements ensures suitability for modern, regulated installations.
Explore more industrial connectors and Phoenix Contact's full range in Electronics Components at EnvMart for specialized solutions in automation, instrumentation, and plant engineering.
Explore more products in our Industrial Circular Connector category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a current of 10A and a voltage of 150V, making it suitable for various industrial applications.
It complies with IP66, IP68, and IP69K ratings, providing superior protection against water and dust ingress.
This model operates effectively within a temperature range of -40°C to +105°C, allowing it to function in extreme conditions.
The connector features 19 contacts arranged in a pole format of 16+2+PE, suitable for various signal and power applications.
It utilizes crimp termination, which ensures a secure connection and facilitates easy assembly during installation.
The housing is constructed from zinc, providing mechanical durability and resistance to corrosion.
It has a straight orientation with coding N, which simplifies alignment and prevents incorrect mating during installation.
Yes, it is RoHS compliant, ensuring it meets modern environmental regulations for hazardous substances.
It is frequently used in manufacturing, process automation, robotics, and power distribution, among other industrial applications.
The connector has a shell size of 27 mm, which is typical for M23 connectors, facilitating compatibility with standard industrial harnesses.
This model is part of the M23 PRO Series, designed for demanding industrial and automation environments.
This is a female socket connector designed for cable-mounted applications, ideal for connecting to panels or devices.
