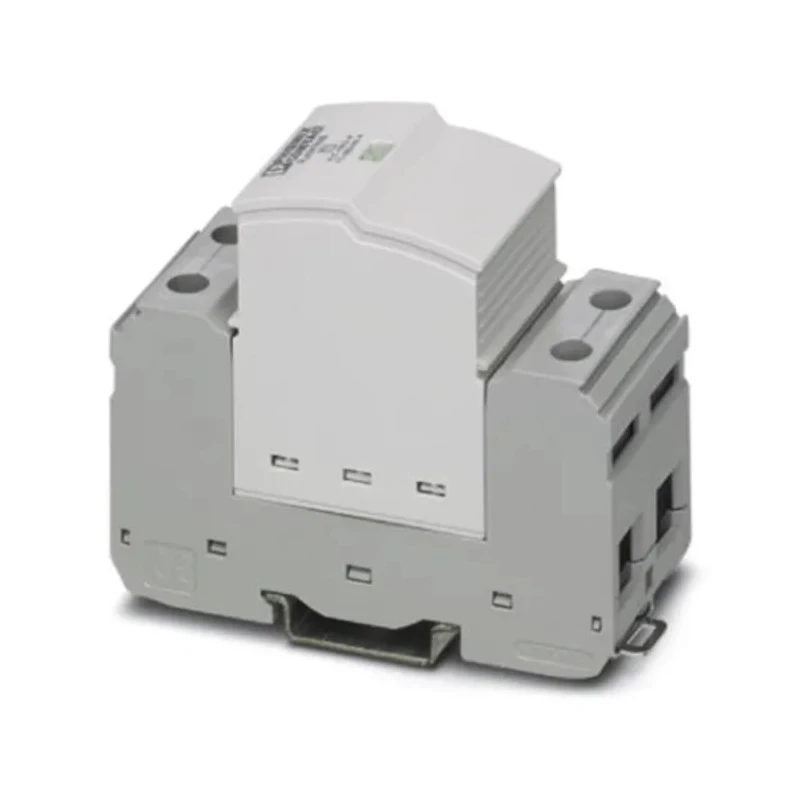

Phoenix Contact 1 Phase Surge Protector, 50 kA Maximum Surge Current, 2 kV Voltage Protection Rating, DIN Rail Mount 2905415

It provides highly reliable protection for various industrial, manufacturing, and commercial applications requiring robust surge protection on a DIN rail mounting system.

This surge protector features a maximum surge current capacity of 50 kA and a voltage protection rating of 2 kV, making it suitable for one-phase power supply networks with separate neutral and protective earth conductors (L1, PE, N). Its high continuous voltage resistance of up to 350 V AC makes it compatible with installations operating at 230/400 V AC, even under high voltage fluctuations.

The device incorporates a spark gap without line follow current and is free of leakage current, enabling safe installation in the pre-meter area. Its pluggable design includes an optical mechanical status indicator and a floating remote indication contact to facilitate easy maintenance and remote monitoring. The surge protector is designed for DIN rail mounting, providing convenient installation and secure mechanical connection to control cabinets.

Built to operate in harsh environments, it can sustain temperatures from -40°C to 80°C, and its IP20 rating ensures protection against solid objects. The compact dimensions (95.2 mm length × 74.5 mm depth × 71.2 mm width) make it ideal for installation in space-constrained electrical panels.

The product is certified under multiple international standards including UL Recognised, cUL Recognised, EN 61643-11 2012, IEC 61643-11 2011, as well as approvals from EAC, CCA, KEMA-KEUR, GL, and the IECEE CB Scheme.

This surge protector is recommended for use in various industrial and commercial sectors such as energy supply systems, building installations, telecommunications infrastructure, wind power facilities, datacenters, and machine-building industry. The device is part of the Phoenix Contact SEC series of lightning current arresters designed for Type 1/Class I protection level.

Designed for one-phase power supply networks with separate N and PE conductors. Maximum surge current capacity of 50 kA with a 2 kV voltage protection rating. High continuous voltage tolerance of 350 V AC for fluctuating AC networks.

Pluggable design with optical and mechanical status indicator. Equipped with floating remote indication contact for remote monitoring. Compact dimensions (95.2 mm × 74.5 mm × 71.2 mm) and DIN rail mounting. Complies with international standards including UL, IEC, cUL, and EN certifications.

Operates reliably in temperatures ranging from -40°C to 80°C. Explore more Surge Protection Devices and Phoenix Contact products on EnvMart to ensure optimized circuit protection and electrical safety.
