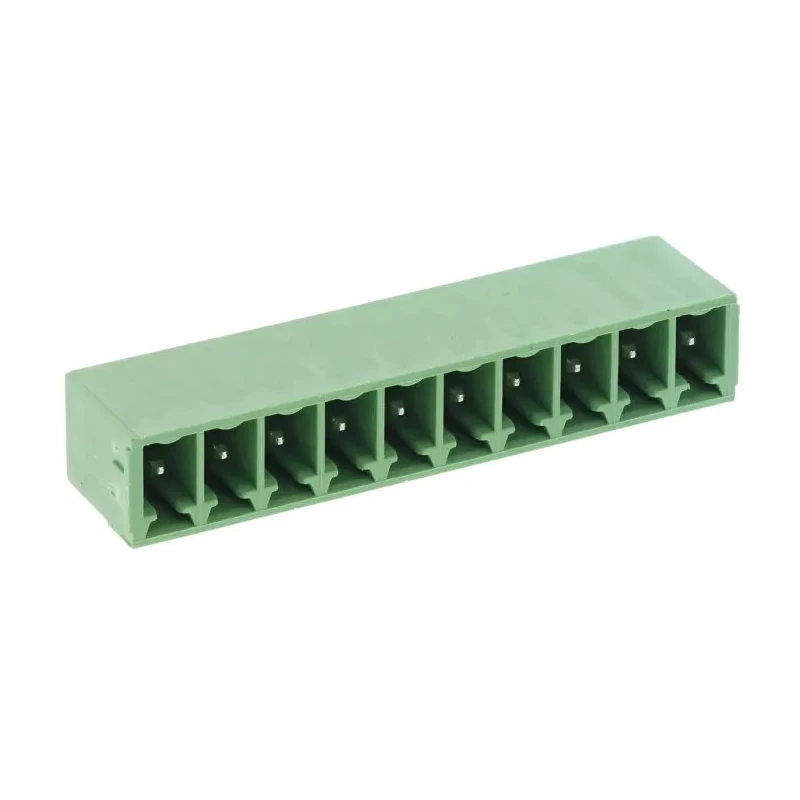

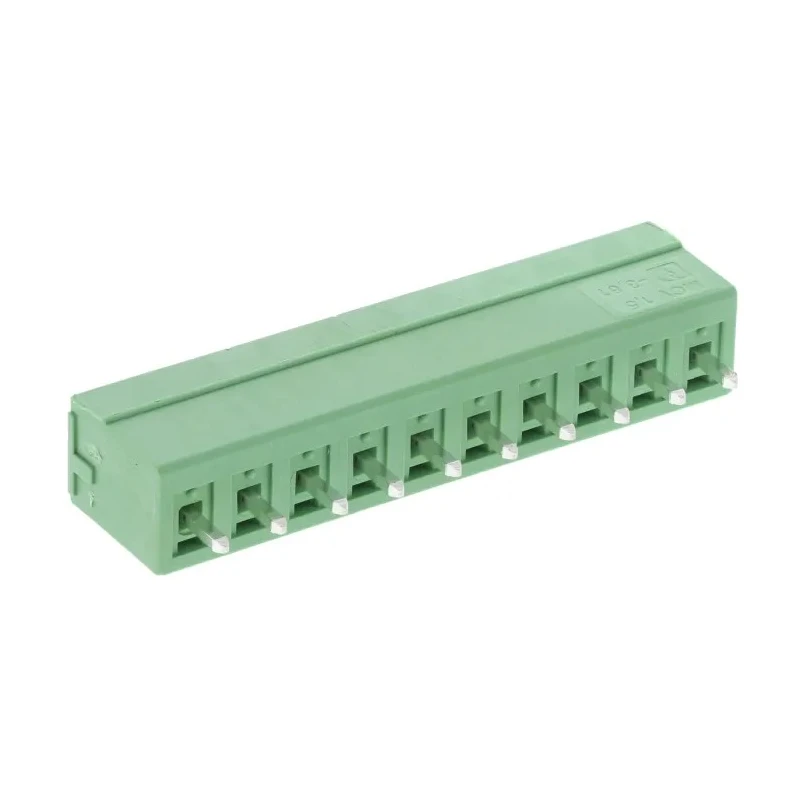

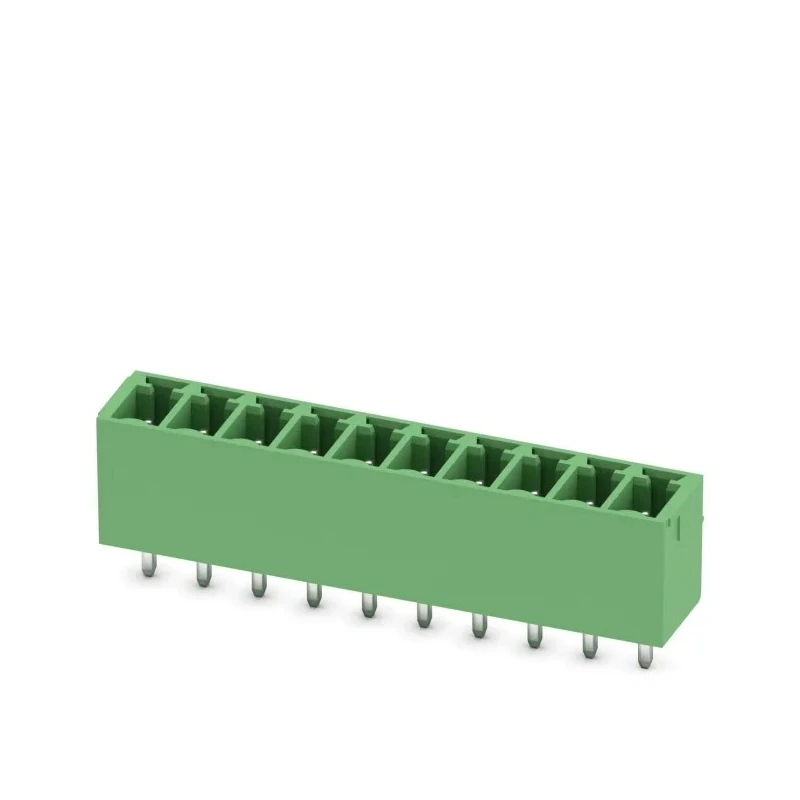

Phoenix Contact 10-Contact Pluggable Terminal Block 3.81 mm Pitch, 1 Row, 8A Current, 160V Voltage, Polybutylene 1803507

Phoenix Contact 1803507 is a 10-contact pluggable terminal block with a 3.81 mm pitch and single-row layout designed for reliable electrical connections in industrial, automation, and manufacturing environments. It operates at a current rating of 8A and a voltage rating of 160V, making it suitable for moderate power applications.

The housing is made from polybutylene terephthalate, providing excellent durability and electrical insulation. Its straight body orientation allows seamless integration onto PCBs through a through-hole mounting design. The solder connection method is optimized for wave soldering manufacturing processes, ensuring a durable and permanent fit.

This terminal block is typically used in power distribution panels, machinery control units, and custom electronic device prototyping requiring robust and secure multi-contact connections. Its 10 contact points simplify wiring multiple conductors in compact spaces while maintaining high reliability and safety standards.

The product complies with key international standards including EU REACH SVHC, EU RoHS, cULus, CSA, and China RoHS, ensuring environmental and safety regulations are met. Manufactured in Germany, this terminal block combines quality construction with industrial-grade performance.

Features a straight body orientation for easy PCB integration. Supports a maximum current of 8A for versatile electrical loading. Rated for voltage up to 160V ensuring safe operation in various settings. Constructed with durable polybutylene terephthalate housing material.

Utilizes solder wire connection method suitable for wave soldering processes. Designed with 10 contact points allowing multiple connections in one unit. Single-row configuration simplifies wiring and assembly. Connector gender is male, facilitating standard mating connections.

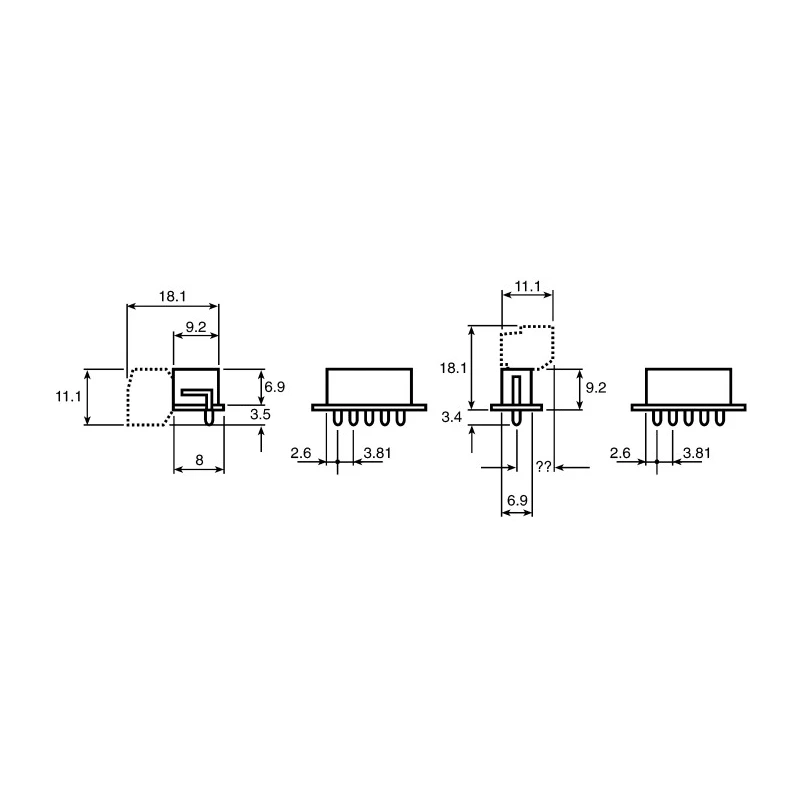

Compact size with 12.6 mm depth and 7.25 mm length enhances PCB layout optimization. Compliant with EU REACH SVHC, EU RoHS, cULus, CSA, and China RoHS standards.

This pluggable terminal block is essential for industrial automation, electrical connectivity in manufacturing equipment, and custom electronic circuit designs. It delivers secure, efficient, and standardized interfacing for wires and PCBs.
