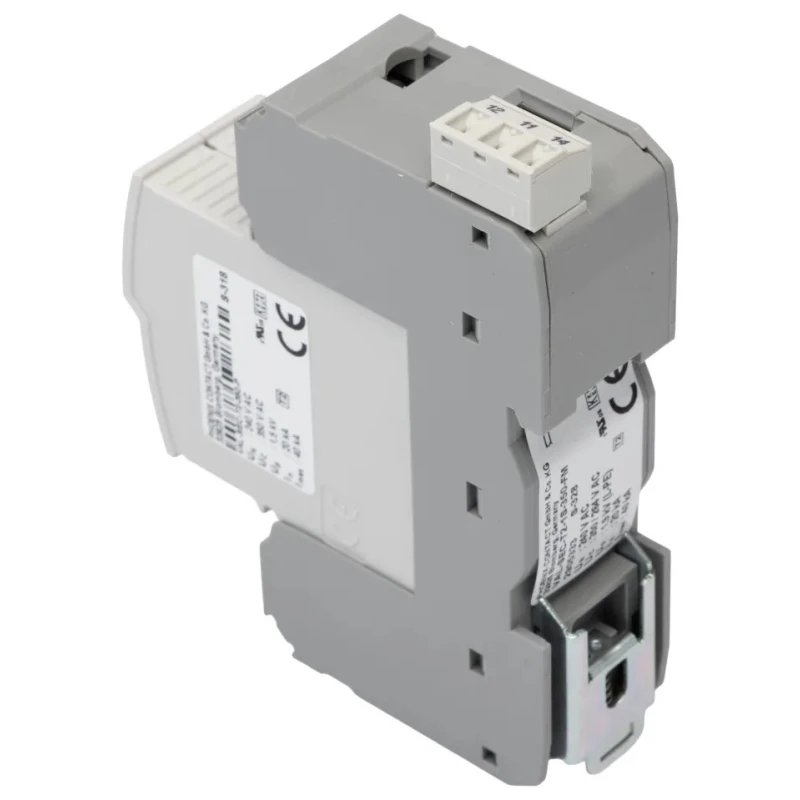

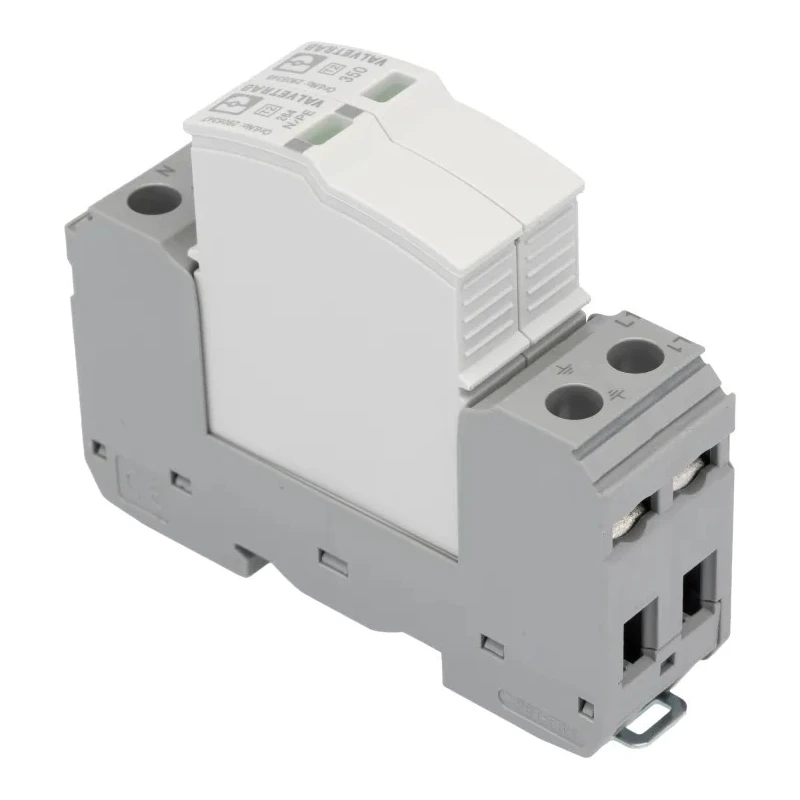

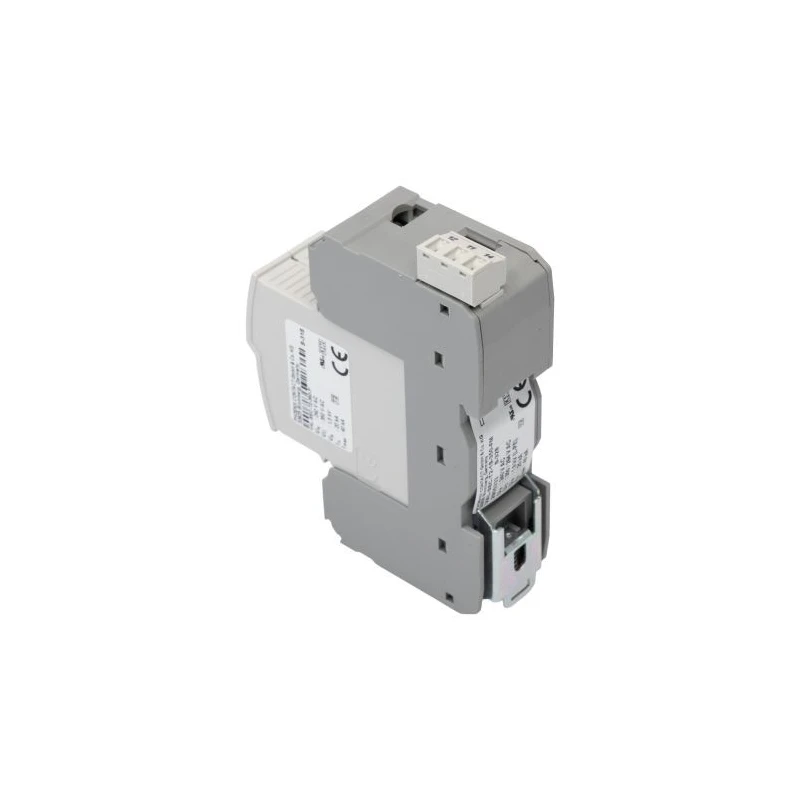

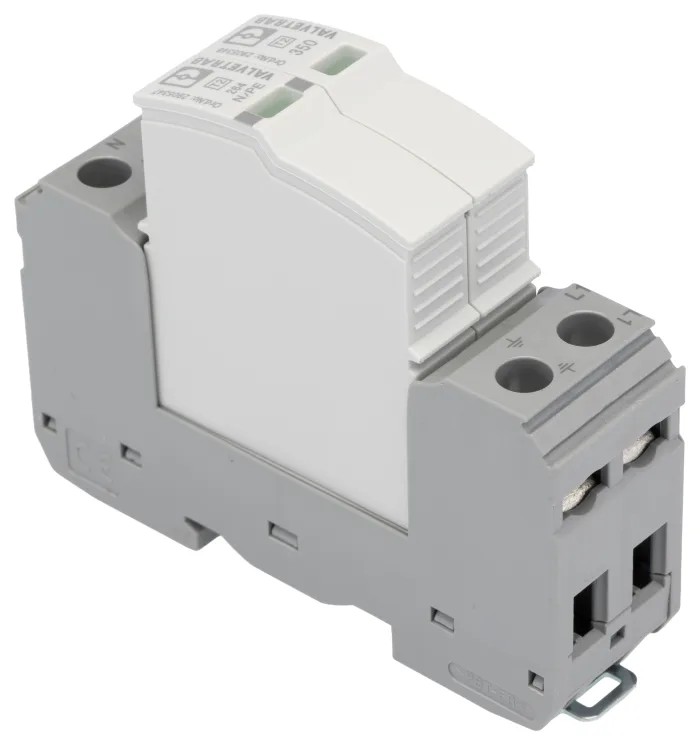

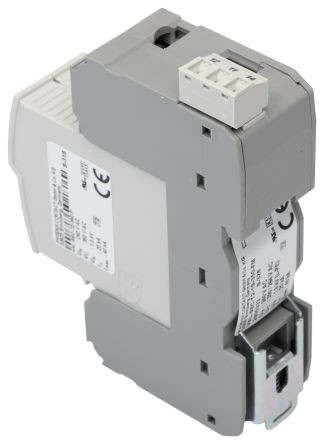

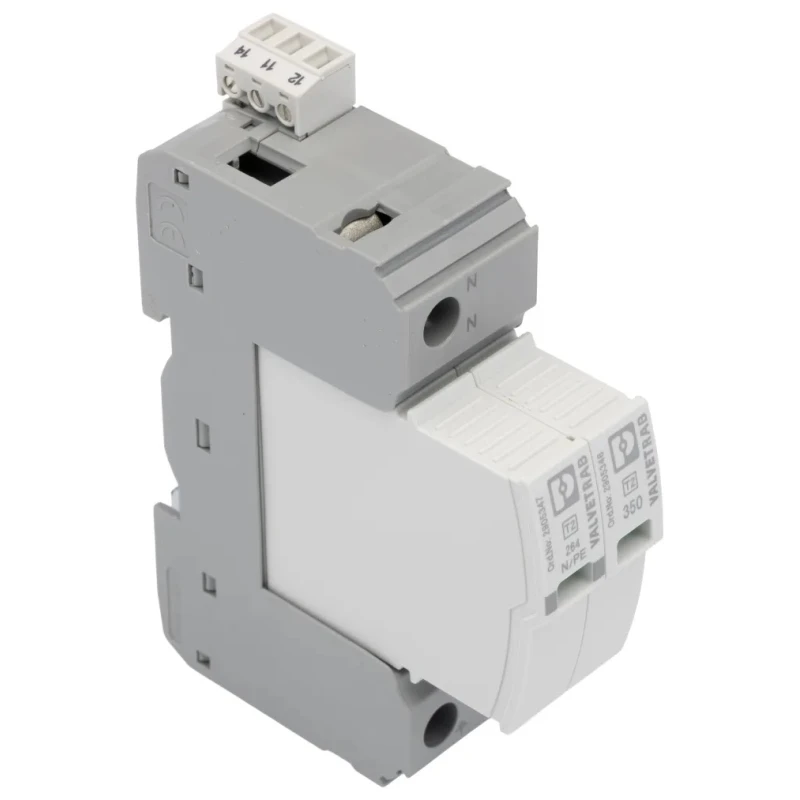

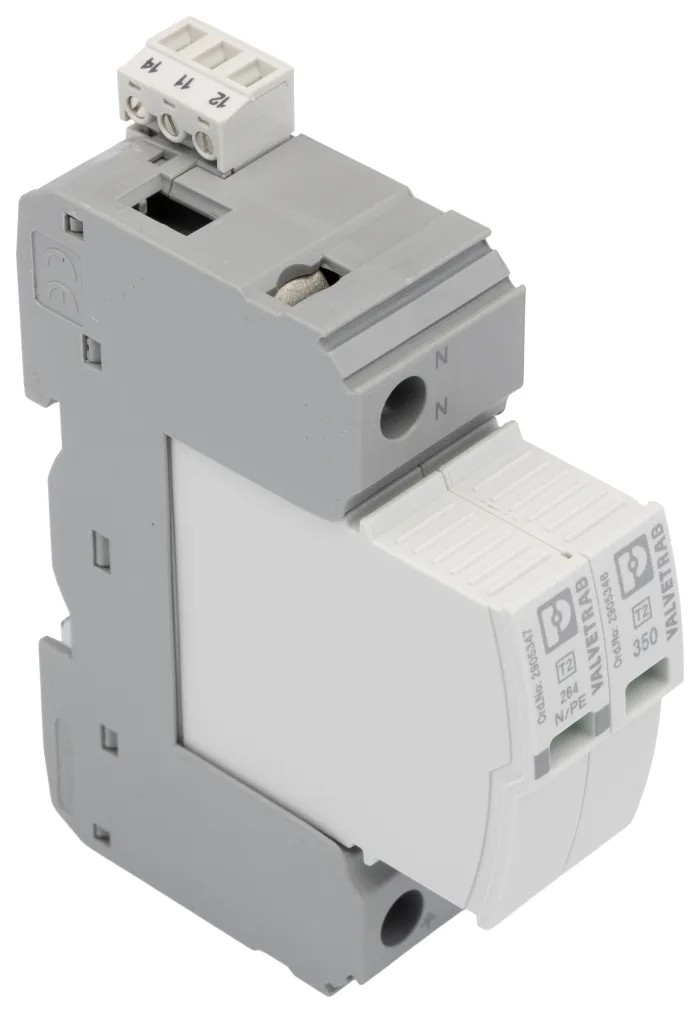

Phoenix Contact 1 Phase Surge Arrester, 50 kA Maximum Surge Current, 1.8 kV Voltage Protection Rating, DIN Rail Mount 2905333

Name: Phoenix Contact 1 Phase Surge Arrester, 50 kA Maximum Surge Current, 1.8 kV Voltage Protection Rating, DIN Rail Mount 2905333
Brand: PHOENIX CONTACT
SKU: 267709
Price: 233.71 USD
Availability: InStock



Category Surge Protection Devices Brand PHOENIX CONTACT Condition New

Specifications

Country of Origin	Germany
Brand	Phoenix Contact
Length	97.9mm
Model	2905333
Depth	74.5mm
IP Rating	IP20
Width	25.4mm
Mount Type	DIN Rail
Series	VAL-SEC-T2-1S-350-FM
Maximum Operating Temperature	80°C
Minimum Operating Temperature	-40°C
Electrical Phase	1
Standards/Approvals	UL
Maximum Surge Current	50kA
Voltage Protection Rating	1.8kV
Impulse Discharge Current	40kA

Key Features

This device protects single-phase power supply networks from electrical surges effectively.
Compact dimensions of 97.9 mm length, 25.4 mm width, and 74.5 mm depth enable space-saving installation on DIN rails.
Impulse discharge current rating of 40 kA ensures reliable surge mitigation.
Operating temperature range from -40°C to 80°C supports varied environmental conditions.
Supports conductor cross-sections from 2.5 mm² to 25 mm², suitable for flexible and rigid wiring.
Equipped with mechanical and visual fault indicators for easy maintenance.
Class II certified Type 2 surge arrester functionality for enhanced electrical protection.
Ideal for industrial, residential, and commercial electrical surge protection applications.

Product Description

This device is specifically engineered for DIN rail mounting and is compact with dimensions of 97.9 mm length, 25.4 mm width, and 74.5 mm depth, allowing efficient use of cabinet space.

The surge arrester combines Type 2 surge arrester functionality with Class II certification, ensuring reliable energy control and protection against electrical surges, particularly where separate neutral (N) and protective earth (PE) conductors are used. With an impulse discharge current capability of 40 kA, it withstands significant surge energy to protect connected equipment.

The device supports flexible and rigid conductor cross-sections ranging from 2.5 to 25 mm², accommodating diverse installation requirements. Its mechanical and visual fault indicators facilitate quick and easy maintenance, contributing to system reliability. The product operates efficiently within a wide temperature range from -40°C up to 80°C, suitable for harsh industrial and commercial environments.

Typical applications include industrial automation systems, electronic control panels with limited space, residential power installations equipped with solar inverters, and commercial electrical infrastructure requiring robust surge protection. It is UL approved and manufactured in Germany, ensuring high quality and compliance with international standards.

This surge arrester protects single-phase power systems from surges up to 50 kA. Compact 12 mm width supports dense installation on DIN rails. Mechanical and visual indicators enable clear fault status monitoring. Wide operating temperature from -40°C to +80°C enables use in diverse environments.

Supports conductor cross-sections from 2.5 mm² to 25 mm² suitable for various wiring.

For effective and space-efficient surge protection in industrial, residential, and commercial electrical systems, the Phoenix Contact 2905333 offers a proven solution. Explore more Surge Protection Devices and related electrical components in the Electronics & Electricals section at EnvMart.
