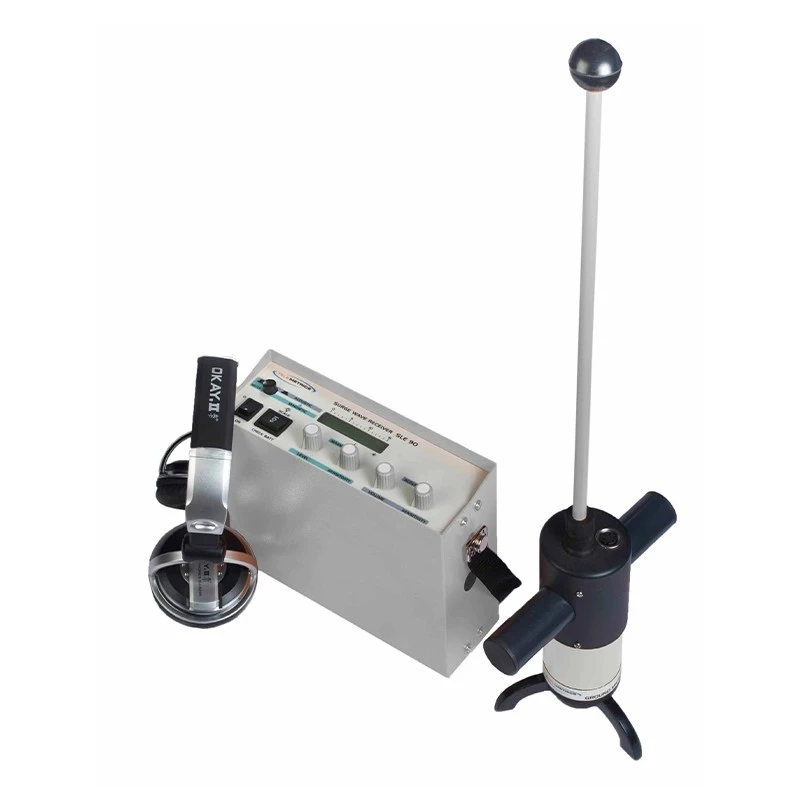

Motwane SLE 90 Surge Wave Receiver
Specifications
| Country of Origin | India |
|---|---|
| Brand | Motwane |
| Power Supply | 1.5V x 8 AA size batteries |
| Operating Temperature | 0°C to 55°C |
| Dimensions | 240(L) x 80(H) x 190(D) mm |
| Storage Temperature | -5°C to 60°C |
| Model | SLE 90 |
| Weight | 1.5 kg approx. with batteries |
| Operating Time | More than 15 hours continuous |
| Standard Warranty | One Year |
| Input Impedance | 500 Ohm for ground microphone |
| Other Models Available | Surge Wave Receiver SLE 200 |
| Acoustic Channel | Broadband Filter - 70-3000 Hz |
| Magnetic Channel | 9820 Hz ±10 Hz Bandwidth Filter |
| Acoustic and Magnetic Gain | More than 96 dB for both channels |
| Associated Surge Testers | Surge Tester SWT 4 / SWT 16 & SWT 32 |
Key Features
- For pinpointing of cable faults by acoustics and magnetic method.
- Guides the operator to be walk on cable route while pinpointing the cable fault.
- Indication of battery condition.
- Automatic low bat indication on LCD display.
- No external noise under mute operation.
- Working Channels Acoustic and Magnetic.
- Acoustic Channels Broad band Filter 70 - 3000 Hz.
- Magnetic Channels 9820 Hz +10 Hz Bandwidth Filter.
- Gain More than 96 dB for both magnetic and acoustic channels.
- Input Impendence 500 Ohm for ground microphone.
- Power Supply 1.5 V X 8 AA size batteries.
Product Description
The Surge Wave Receiver SLE90 is a highly sensitive equipment designed to precisely locate fault points in underground cables, and it is effective for use on low, medium, and high voltage power networks. The device aids the operator in accurately following the cable route using a magnetic channel in a dual LCD display, which indicates the strength of the magnetic field on the ground surface. It also features mute operation to minimize ambient noise interference, and a facility to open the acoustic window for a short time upon arrival of a magnetic signal.
Application
It is used to pin-point underground cable faults in transmission and distribution power cable network in acoustic mode with the help of suitable surge tester.
Srandard Accessories
- Ground Microphone (MIC S)
- Headphones
- Carrying Stick
- Connecting Cables
- Carrying Case
- Instruction Manual
Available on EnvMart, these Surge Protection Devices are engineered to safeguard electrical systems from voltage spikes and transient surges. Motwane Surge Protection Devices ensure reliable protection for industrial, commercial, and residential applications, enhancing system longevity and safety.
