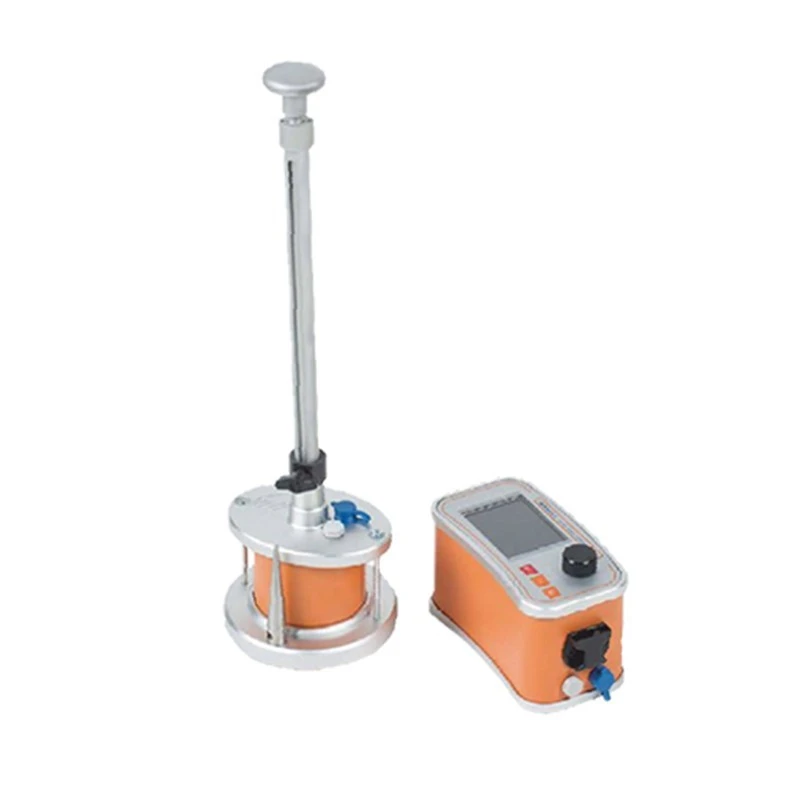

Motwane SLE 200Z Surge Wave Receiver
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | 0.1m |
| Brand | Motwane |
| Dimensions | 210mm × 95mm × 115mm |
| Model | SLE 200Z |
| Working Time | 9 hours approx |
| Weight | 0.6KG |
| Charger | Input AC220V±10% /50Hz / Output 8.4V /DC 1A |
| Display Method | 320 x 240 dot LCD Screen |
| Gain Adjustment | Manual |
| Acoustic magnetic synchronous pin-pointing | Yes |
| Acoustic channel Bandwidth - All-pass | 80Hz~1500Hz |
| Acoustic channel Bandwidth - Low-pass | 80Hz~400Hz |
| Acoustic channel Bandwidth - High-pass | 200Hz~1500Hz |
| Acoustic channel Bandwidth - Band-pass | 150Hz~600Hz |
| Signal gain | ≥110dB |
| Step voltage function (optional) | Yes |
| Magnification times | Greater than 80db |
| Indication of the direction to the fault | Compass - Yes |
| Indication of Acoustic signal detection | Yes |
| Power Supply Battery | Built-in Li-ion battery 7.4V- 3400mAH |
| Quick charging | below 4 hours |
| IP Protection - Sensor | IP 54 |
| IP Protection - Receiver | IP 65 |
Key Features
- Perfect functions, suitable for pin-pointing all kinds of cable faults and detect cable path
- High accuracy
- Synchronous sensing of acoustic and magnetic signals of the fault with high ability to anti-interference
- Waveforms displayed on large LCD
- With the assistance of the earphone, direct and easy to identify the fault
- High Acoustic & Magnetic field sensitivity
- High Performance electronic suppression of external noise and interference
- Automatic contactless turn off of the Headset, as the hand approaches the handle
- Indication of the direction to the fault - Compass
- Comparison of last and the new measurement
- Low battery indication
- Graphical indication of the magnetic field
- Indication of the acoustic signal detection
- Indication of all adjustments & settings
Product Description
Surge Wave Receiver SLE200-Z is a highly sensitive equipment to exactly locate the fault point in a short time. It can be used on low, medium and high voltage power networks effectively. The success of locating exact fault point on the underground cable depends on the search carried out on the lay of the cable. This calls for an indication to guide the operator to walk precisely on the cable route.
Application
The SLE 200-Z Surge Wave Receiver is an easy operation device used to pinpoint the fault point. It integrated the function of acoustic magnetic synchronization method, the step voltage method, the magnetic field strength method to make the pinpointing accuracy.
Standard Accessories
- Ground Sensor
- Headphones
- Carrying Stick - Connect to Sensor
- Connecting Cables
- Carrying Case
- Instruction Manual
Available on EnvMart, these Surge Protection Devices are engineered to safeguard electrical systems from voltage spikes and transient surges. Motwane Surge Protection Devices ensure reliable protection for industrial, commercial, and residential applications, enhancing system longevity and safety.
- Fault distances measurement
- Measure of magnetic field and sound coincidence with acoustic selection and calibration of the measuring range
- Indication of cable position in respect to the sensor
- Cursor to identify the time of delay between the acoustic signal and the magnetic signal, thus to confirm the fault range
- Automatic switch between different work modes
- Automatic gain adjustment
- Indication of cable position in respect to the sensor
- With back light, automatic power-off and overcharge protection functions. Easy to operate
