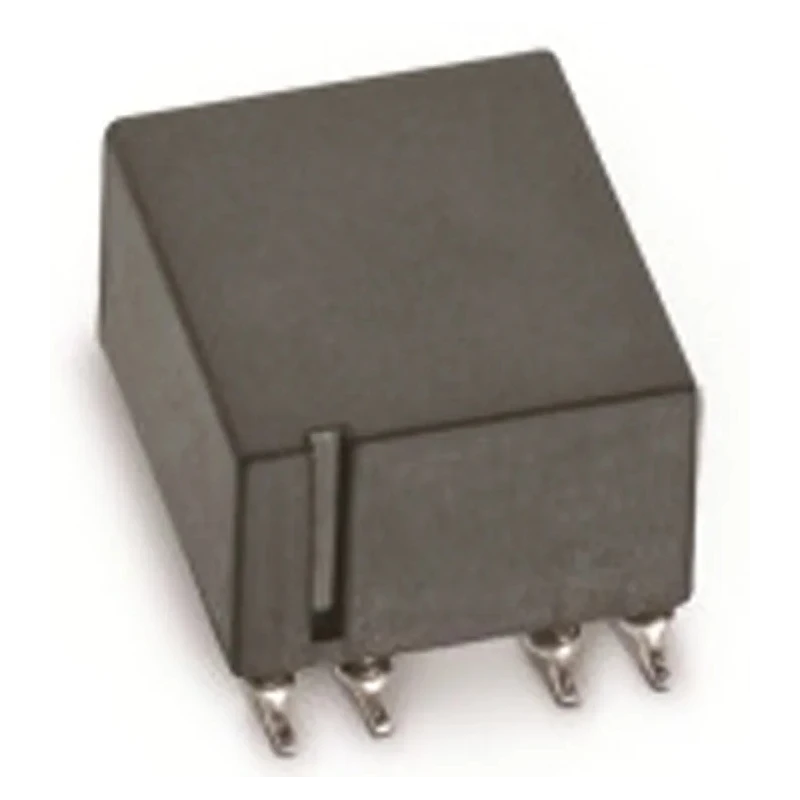

Wurth Elektronik 0.33μH Shielded Wirewound Surface Mount Inductor with Ferrite Core 1712 Package 744290103

Wurth Elektronik model 744290103 is a shielded wirewound surface mount inductor with a ferrite core, providing an inductance value of 0.33μH. The inductor comes in a 1712 package case and is designed for compact surface mount assemblies in various electronic circuits.

This SMD common mode line filter series, WE-UCF, is suitable for a broad spectrum of applications including DC power line filtering, buck-boost converter noise suppression, and low bitrate data line filtering. The sectional winding construction enhances stability and electromagnetic compatibility.

The inductor supports a maximum DC current of 500mA with a maximum DC resistance of 920mΩ and inductance tolerance of ±30%. It is rated to operate within an extended temperature range from -40°C to 125°C, ensuring reliable performance in industrial or automotive environments where applicable, although it is not automotive standard certified. Compliance with REACH and RoHS standards attests to its environmental and user safety.

Its compact dimensions (length 14mm, height 7.8mm, depth 12.5mm) and surface mount termination style make it easy to integrate into modern PCB layouts. The component includes 8 pins with shielding to mitigate electromagnetic interference effectively.

The ferrite core material aids in noise reduction and magnetic stability, making it ideal for use in power supply circuits, signal processing, telecommunications, and other industrial electronic applications requiring precise filtering solutions.

The inductor features a sectional winding construction for improved stability. Offers a maximum DC current rating of 500mA. Has a maximum DC resistance of 920mΩ with ±30% inductance tolerance. Operates reliably across a temperature range of -40°C to 125°C.

Complies with REACH and RoHS standards ensuring environmental safety. The component has 8 pins and uses surface mount termination style. Shielding is provided to reduce electromagnetic interference. Designed for use in filtering DC power lines and data lines in electronic circuits.

Compact dimensions with length 14mm, height 7.8mm, and depth 12.5mm. Explore more Shielded Wirewound Surface Mount Inductors by Wurth Elektronik at EnvMart for quality components suitable for electronic, industrial, and manufacturing sectors.
