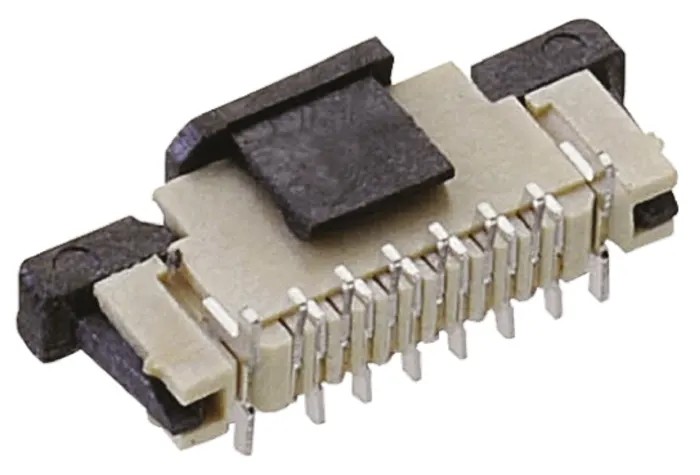

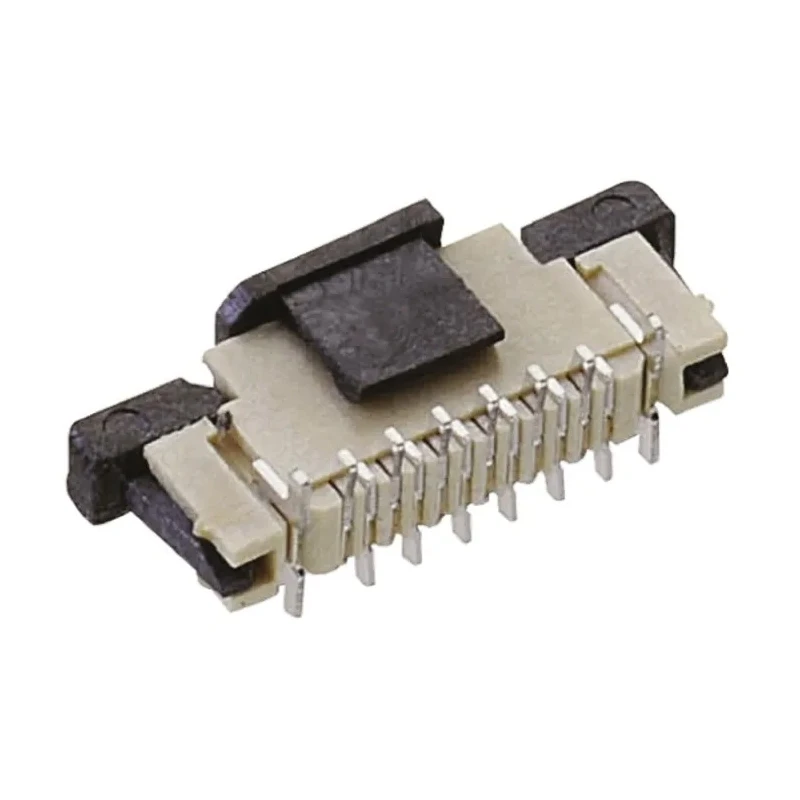

Wurth Elektronik 0.5 mm Pitch 10 Way Straight Male FPC Connector Solder Pin 687310124422

Wurth Elektronik 687310124422 0.5 mm Pitch 10 Way Straight Male FPC Connector is designed as a high-reliability wire-to-board connector suitable for advanced electronics applications in industrial, laboratory, and manufacturing settings. It features a zero insertion force (ZIF) design which facilitates easy and damage-free connector mating and unmating cycles.

This connector incorporates 10 phosphor bronze contacts with tin over nickel plating to ensure excellent conductivity and corrosion resistance. The surface mount, straight orientation connector boasts a robust locking mechanism for secure connections, making it ideal for use in compact circuit board assemblies.

With a pitch of 0.5 mm, it supports high-density PCB designs where space and performance are critical. The housing is constructed from liquid crystal polymer (LCP), which provides mechanical strength coupled with a UL94-V0 flammability rating for enhanced safety standards.

Electrical rating specifications include a maximum operating voltage of 50V and current capability of 500mA, suitable for low power signal and communication lines. The device functions reliably within a temperature range from -25°C to 85°C, covering a broad range of environmental conditions common in electronics manufacturing and usage.

Each connector is rated for 25 mating cycles, guaranteeing a lifecycle appropriate for many industrial and commercial applications. The single-row 10-way configuration ensures straightforward integration into designs requiring wire-to-board interfacing with minimal space usage.

Features a 0.5 mm pitch for compact electronic designs. Includes 10 contacts made of phosphor bronze for durability. Surface mount type with straight orientation and locking mechanism. Operates at voltages up to 50V with a 500mA current rating.

Housing made from liquid crystal polymer ensuring stability and UL94-V0 flammability rating. Contact plating includes tin over nickel for corrosion resistance. Designed to tolerate a temperature range from -25°C to 85°C.

Supports up to 25 mating cycles with ZIF (Zero Insertion Force) termination. Single row configuration making it suitable for compact PCB layouts.

This Wurth Elektronik FPC Connector is suitable for diverse applications including electronics manufacturing, automotive electronics, telecommunications equipment assembly, and laboratory instrumentation. Its precise engineering and quality materials help ensure dependable circuit connections in demanding industrial environments.
