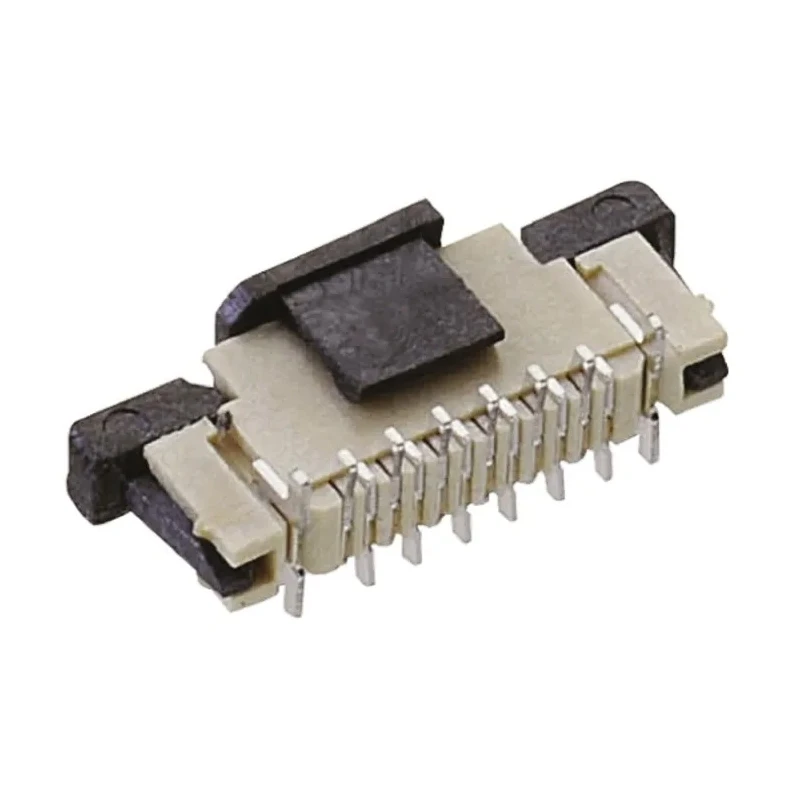

Wurth Elektronik 0.5 mm Pitch 10 Way Straight Male FPC Connector, Solder Pin 687310124422

Wurth Elektronik 687310124422 is a high-quality 10 Way Straight Male FPC Connector with a 0.5 mm pitch, designed for wire-to-board connections. This connector utilizes solder pin termination combined with a zero insertion force (ZIF) mechanism, facilitating easy surface mounting and secure connections in compact electronic assemblies.

The contacts are crafted from phosphor bronze material and plated with tin over nickel to provide excellent electrical conductivity and resistance to corrosion. The connector operates safely at voltages up to 50 V and supports currents up to 500 mA per contact, making it compatible with various low-power applications.

Designed to withstand a wide operating temperature range from -25°C to 85°C, this component is suitable for industrial and commercial electronic equipment environments requiring reliable performance under thermal stress.

The housing is constructed of liquid crystal polymer, offering superior mechanical stability and a UL94-V0 flammability rating for enhanced safety. The connector features a single row of 10 contacts and includes a locking mechanism that ensures secure mating and minimizes connection failures.

With capability for up to 25 mating cycles, it supports repeated assembly and disassembly without degradation of performance, suitable for maintenance-intensive applications in manufacturing, telecommunications, and embedded systems.

The connector has a pitch of 0.5 mm ensuring fine pitch wire connections. Features 10 contacts made of phosphor bronze with tin over nickel plating for reliable conductivity. Designed as a straight male connector with zero insertion force (ZIF) mechanism for easy mounting.

Operates reliably within a temperature range from -25°C to 85°C. Supports a voltage rating of 50 V and a current of 500 mA per contact. Surface mount type connector with liquid crystal polymer housing ensuring durability and flame resistance.

Includes a locking mechanism enabling secure connections and improved reliability. Suitable for up to 25 mating cycles, making it ideal for repeated assembly. Compact single row design compatible with FPC and FFC cables.

The connector complies with UL94-V0 flammability rating, ensuring safety in electronic applications.

This Wurth Elektronik FPC Connector is widely used in electronic components assemblies, power connectors for PCBs, telecommunications, and other electrical equipment requiring fine pitch, reliable connections. It is an ideal choice for industrial, manufacturing, electronic design, and embedded system applications.
