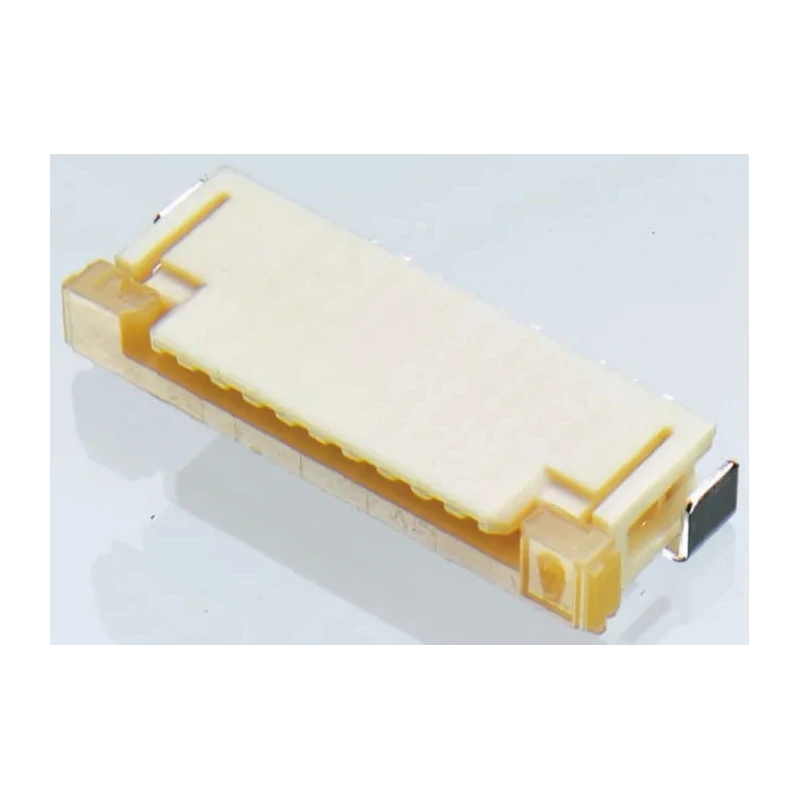

Molex 1 mm Pitch 9 Way Right Angle Female Easy-On FPC Connector, Solder Termination 52271-0979

Molex 52271-0979 is a 1 mm pitch 9 way right angle female FPC Connector designed for solder termination, providing reliable connections in PCB assemblies. This Easy-On series connector features a zero insertion force (ZIF) slide actuator that rotates 30° to facilitate easy insertion and secure locking of FPC cables.

Featuring a bottom contact position and surface mount technology (SMT), it is ideal for space-constrained electronic applications. The connector uses phosphor bronze contacts plated with tin bismuth over nickel to maintain high electrical performance and corrosion resistance.

The housing is fabricated from rugged nylon material that offers mechanical strength and environmental resistance. Its locking mechanism ensures secure mating, while solder tabs on the base provide strain relief and PCB retention, enhancing durability.

This connector supports up to 500 mA current and 50 V AC voltage, with an operating temperature range of -40°C to 85°C, making it well-suited for demanding automotive, consumer electronics, datacommunications, medical, and mobile device applications, including navigation systems, digital cameras, and smartphones.

The design enables the connector contacts to move with the cable when pulled, ensuring consistent electrical retention force and connection reliability during use. The slide type actuator allows easy insertion and secure connection of flexible printed circuits.

Phosphor bronze contact material with tin bismuth plating offers high conductivity and corrosion protection. Nylon housing material provides mechanical durability and resistance in diverse environments. Right angle orientation and surface mount enable space-saving PCB integration.

Locking mechanism and solder tabs enhance retention and strain relief on PCB. Suitable for automotive, consumer electronics, medical, and mobile communication devices. Operating temperature range from -40°C to 85°C ensures wide usability.
