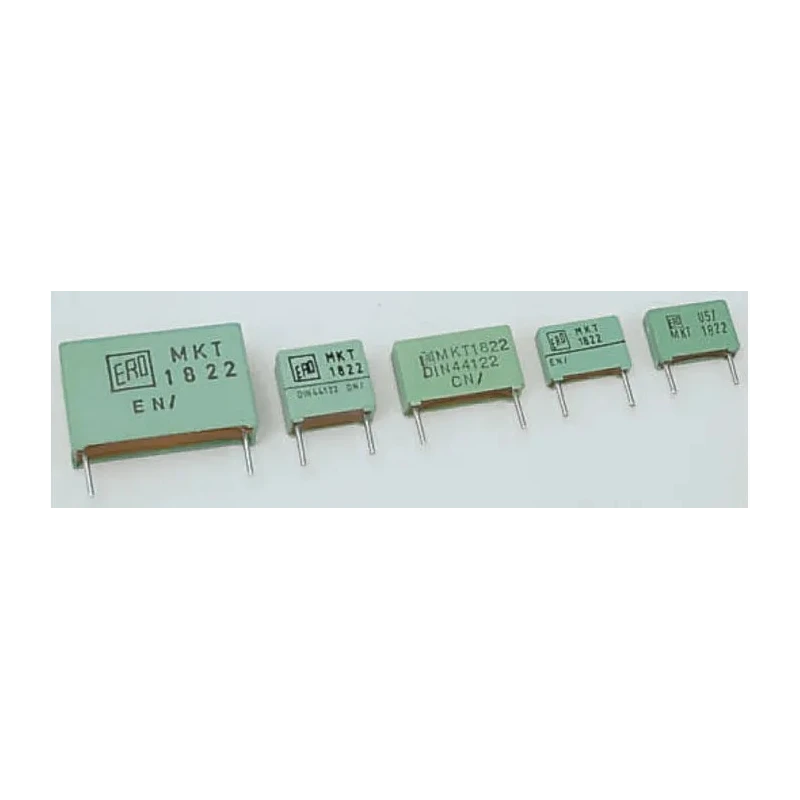

Vishay Film Capacitor 150 nF 200V AC 400V DC Through Hole MKT1822415405

The Vishay MKT1822415405 Film Capacitor is a high-quality polyester film capacitor engineered for demanding electrical and electronic circuit applications. With a capacitance of 150 nF, it is suitable for tasks including blocking, bypassing, filtering, timing, coupling, and decoupling circuits, as well as providing interference suppression in low voltage environments.

Featuring a rated voltage of 200V AC and 400V DC, this capacitor performs reliably in a wide range of conditions, supporting both AC and DC loads. Its through hole mounting design offers secure installation on PCBs and electronic assemblies. The capacitor utilizes a 15 mm lead pitch for compatibility with standard PCB layouts and component spacing.

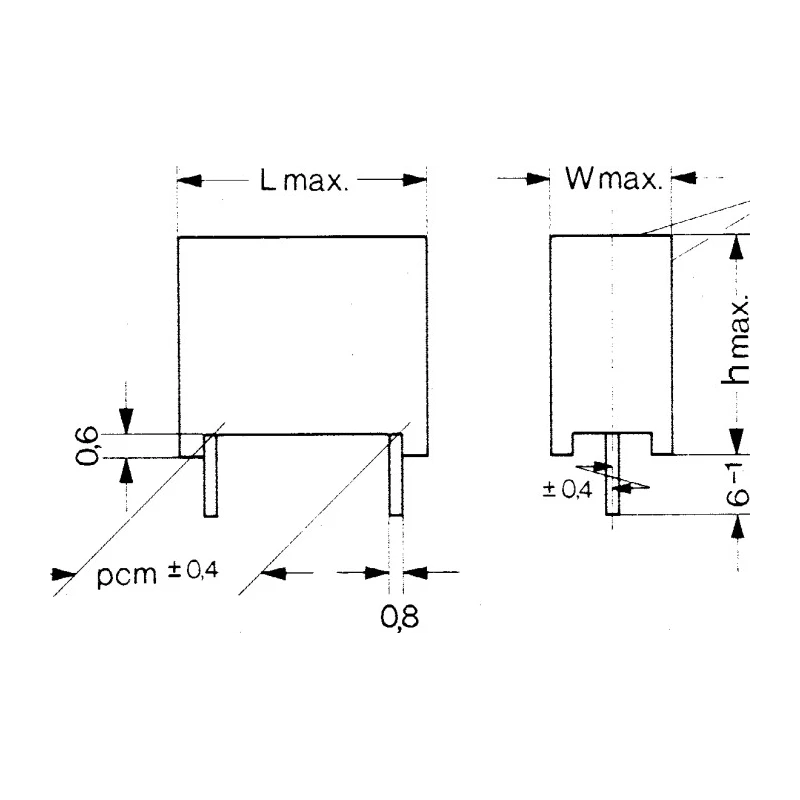

Physical dimensions are compact, measuring 18 mm in length, 12.5 mm in height, and 6.5 mm in width, allowing integration into space-limited designs. The lead diameter is 0.8 mm, ensuring easy and robust connections for most electronic hardware. The device is rated for operation up to 100°C, enabling performance stability in both industrial and commercial environments.

This film capacitor is part of the Vishay MKT 1822 Series and meets the IEC 60384-2 standard for reliability and quality. Typical applications include filtering, coupling, decoupling, signal timing, and interference suppression in control equipment, instrumentation, industrial automation, and consumer electronics.

Use cases span power supplies, signal conditioning, industrial automation control circuits, laboratory and test equipment, HVAC controllers, and manufacturing electronics requiring dependable capacitive elements.

Rated capacitance of 150 nF supports blocking, bypassing, filtering, timing, coupling and decoupling requirements. Withstands up to 200V AC and 400V DC, ideal for low voltage interference suppression applications. Through hole mount design for secure integration in PCBs and equipment.

15 mm lead pitch ensures compatibility with standard circuit layouts. Operates reliably up to maximum 100°C temperature for extended durability. Compact footprint with length 18 mm, height 12.5 mm and width 6.5 mm. Designed to comply with IEC 60384-2 for robust industrial and commercial use.
