Vishay 1 10 V Zener Diode Single 500 mW Through Hole 2-Pin SOD-27 TZX10B-TR

Free Delivery in India | Lowest Global Shipping Charges

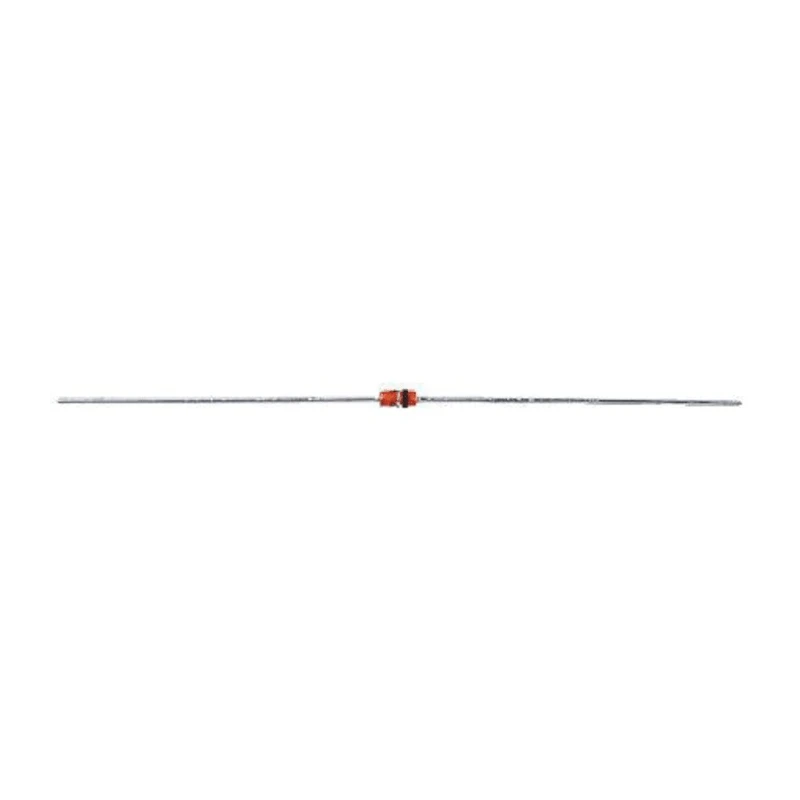

Vishay 1 10 V Zener Diode Single 500 mW Through Hole 2-Pin SOD-27 TZX10B-TR

Name: Vishay 1 10 V Zener Diode Single 500 mW Through Hole 2-Pin SOD-27 TZX10B-TR
Brand: Vishay
SKU: 247778
Price: 0.05 USD
Availability: InStock



Category Zener Diodes Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Length	3.9mm
Model	TZX10B-TR
Mount Type	Through Hole
Series	TZX
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	1μA
Nominal Zener Voltage Vz	10V
Zener Type	Voltage Regulator
Maximum Zener Impedance	25Ω

Key Features

Nominal Zener voltage of 10 volts ensures stable voltage regulation.
Maximum power dissipation rated at 500 milliwatts for reliable operation.
2 pin through-hole mount package type SOD-27 for easy PCB assembly.
Zener voltage tolerance is ±2% with low maximum reverse leakage current of 1 microampere.
Operating temperature range from -65°C to 175°C suitable for harsh environments.
Test current of 5 milliamps and maximum Zener impedance of 25 ohms enhances performance stability.
AEC-Q101 automotive qualified ensuring high reliability in automotive applications.
Compact size of 3.9 mm length supports space-saving designs.

Product Description

Vishay TZX10B-TR is a single Zener diode designed for precise voltage regulation with a nominal Zener voltage of 10 volts and a maximum power dissipation of 500 mW. This diode features a 2-pin through-hole mounting style within a compact SOD-27 package, enabling easy integration in printed circuit boards. The diode exhibits very low reverse leakage current and stable voltage regulation, with a voltage tolerance of ±2%, making it ideal for sensitive electronic circuit protection and voltage reference applications.

Operating reliably within a temperature range from -65°C to 175°C, this component meets industry standards including RoHS compliance and is AEC-Q101 qualified for automotive system applications. With a test current of 5 mA and a maximum Zener impedance of 25 ohms, it ensures excellent electrical stability and noise reduction. Its small physical size (length 3.9 mm) allows for space-efficient designs in industrial, commercial, and automotive electronic assemblies.

Applications include power supplies, voltage regulation, voltage reference in industrial and laboratory instruments, and automotive electronic circuits requiring robust and consistent voltage control. The diode's through-hole package supports automated insertion in manufacturing environments, enhancing production efficiency.

Nominal Zener voltage of 10 volts ensures stable voltage regulation. Maximum power dissipation rated at 500 milliwatts for reliable operation. 2 pin through-hole mount package type SOD-27 for easy PCB assembly. Zener voltage tolerance is ±2% with low maximum reverse leakage current of 1 microampere.

Operating temperature range from -65°C to 175°C suitable for harsh environments. Test current of 5 milliamps and maximum Zener impedance of 25 ohms enhances performance stability. AEC-Q101 automotive qualified ensuring high reliability in automotive applications.

Compact size of 3.9 mm length supports space-saving designs. Explore the Vishay range of semiconductors on EnvMart for reliable discrete semiconductor components suited for electronic, industrial, automotive, and laboratory applications.

Explore more products in our Zener Diodes category.
