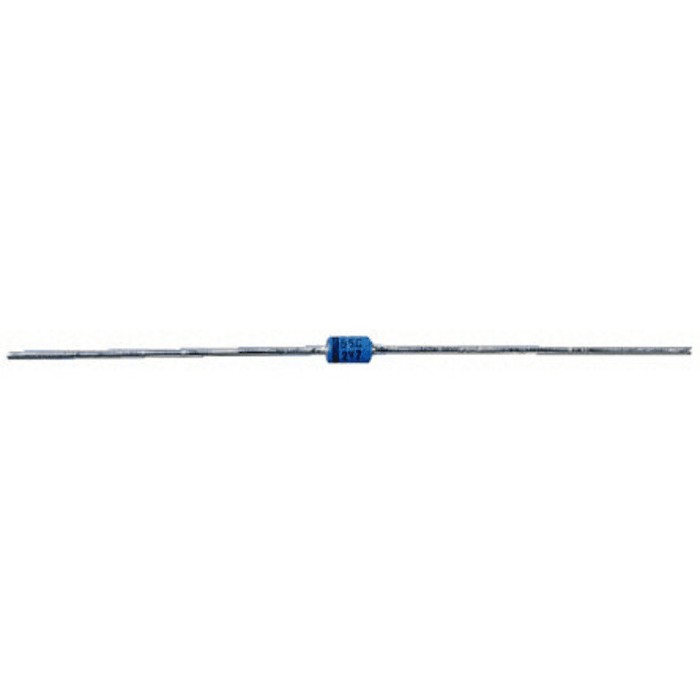

Nexperia Zener Diode 10V 1.3W Single, ±5% Tolerance, Through Hole, 2-Pin DO-41 BZV85-C10,113

The Nexperia BZV85-C10,113 Zener Diode is a high-precision, single Zener diode specifically engineered for voltage regulation and reference purposes in electronic circuits. It offers a nominal Zener voltage of 10V, making it highly suitable for applications where stable voltage reference or clamping is required. With a maximum power dissipation of 1.3W, this diode can handle moderate power levels without degradation in performance, making it ideal for a range of circuit protection and voltage stabilization tasks.

This diode is constructed in the industry-standard DO-41 package with two leads, allowing for straightforward through-hole mounting on a variety of circuit boards. The device features a Zener voltage tolerance of ±5 percent, enabling consistent voltage regulation in demanding setups. Its robust structure is capable of operation across a wide temperature range from minus 65°C up to 200°C, assuring reliable function in both consumer electronics and harsh industrial environments.

Performance parameters include a maximum Zener impedance of 8 Ohms at the test current of 25mA, which ensures minimal voltage drop and effective regulation. The device's very low reverse leakage current of 200nA reduces unnecessary power loss and prevents unintended conduction when in the off state. Its typical voltage temperature coefficient of 6.6mV/°C helps maintain voltage stability across variable thermal conditions.

Typical applications include voltage reference in analog and digital circuits, surge protection, and voltage clamping in power supplies, measurement equipment, and embedded systems. The product's single Zener configuration and compact form factor make it an integral component for designers seeking reliable, efficient voltage regulation components for both new designs and maintenance of legacy systems.

The Nexperia BZV85-C10,113 Zener Diode embodies precision, durability, and ease of integration, suitable for a wide spectrum of industrial, laboratory, and commercial electronic applications. Its technical parameters and reliability ensure long-lasting performance in professional and hobbyist projects alike. Explore more Zener Diode solutions and electronic components from Nexperia in the Zener Diodes category on EnvMart.
