| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.7mm |
| Model | PDZ8.2B,115 |
| Mount Type | Surface |
| Series | PDZ-B |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Standards/Approvals | EU/CN RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 400mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 8V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 10Ω |
| Typical Voltage Temperature Coefficient | 4.6mV/K |
| Total power dissipation | max. 400 mW |
| Wide variety of voltage ranges | nominal 2.4 to 36 V (E24 range) |

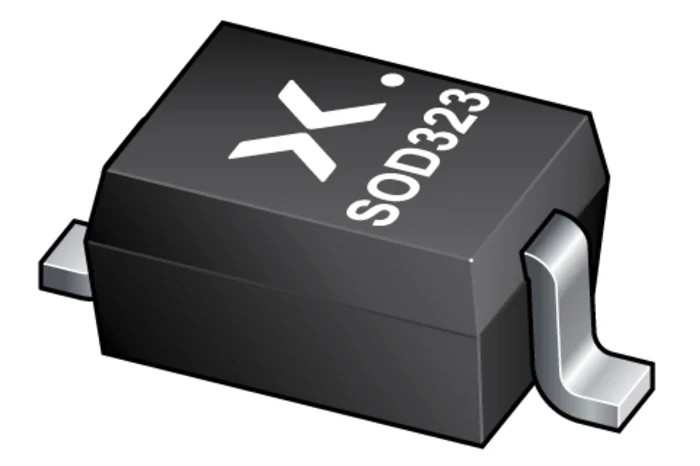

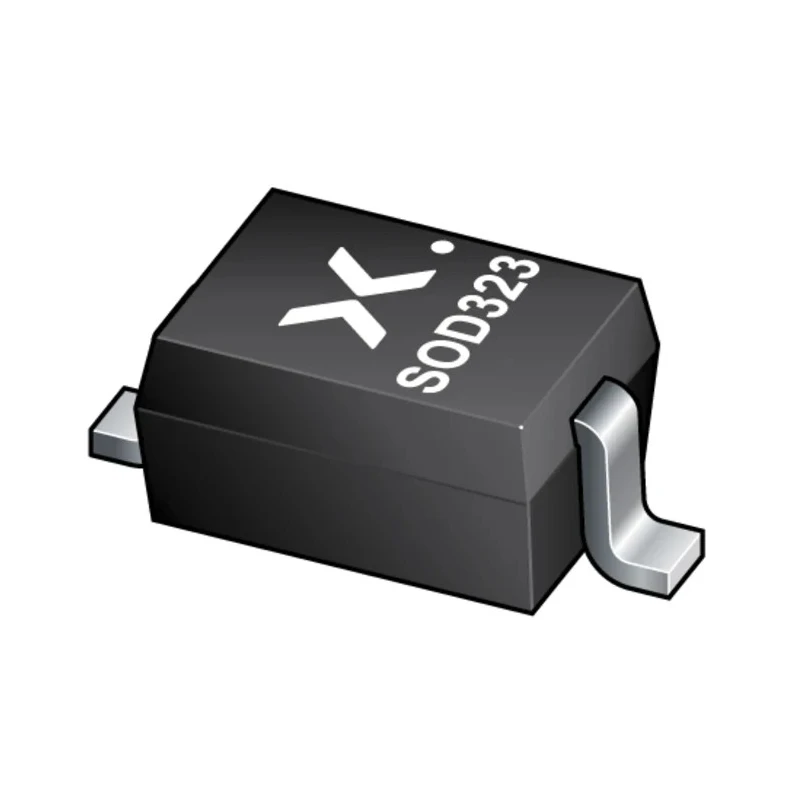

Nexperia PDZ8.2B,115 is a high-quality 8V Zener Diode designed as a low-power voltage regulator with a maximum dissipation of 400 milliwatts. Packaged in a small plastic SMD SOD-323 (SC-76) casing with 2 pins, it is ideal for surface mount electronic assemblies.
Designed to provide precise voltage regulation, this diode exhibits a tight 2% tolerance and a typical voltage temperature coefficient of 4.6 mV/K, enabling excellent stability under temperature variations. Its compact dimensions of 2.7 mm length and 1.1 mm height make it suitable for miniaturized electronic circuits.
With a maximum operating temperature of 150°C and compliance to AEC-Q101 automotive standards, this diode is a reliable choice for automotive and industrial applications requiring durable voltage regulation components.
The device features a test current of 5 mA, maximum Zener impedance of 10 Ω, and minimal reverse leakage current of 500 nA, which helps maintain circuit integrity and efficiency. Its surface mount design ensures easy PCB assembly for modern electronics manufacturing. The component meets EU and CN RoHS standards, ensuring environmental compliance.
This diode delivers a nominal Zener voltage of 8 volts with ±2% tolerance. Maximum power dissipation rated at 400 milliwatts ensures effective voltage regulation. Compact SOD-323 surface mount package eases PCB integration.
Max operating temperature 150°C suitable for harsh environments. Low reverse leakage current enhances circuit performance. AEC-Q101 qualified, automotive grade component. Voltage temperature coefficient enables stable regulation.
This Nexperia Zener Diode PDZ8.2B,115 is widely used in industrial, automotive, power supply, and consumer electronics circuits requiring regulated voltage levels and protection against voltage spikes.
