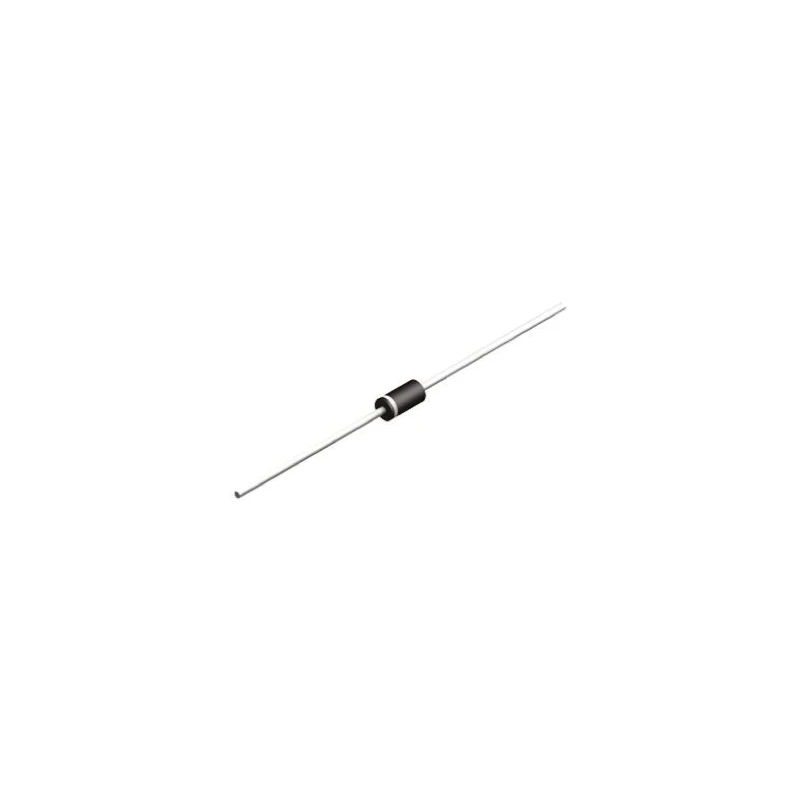

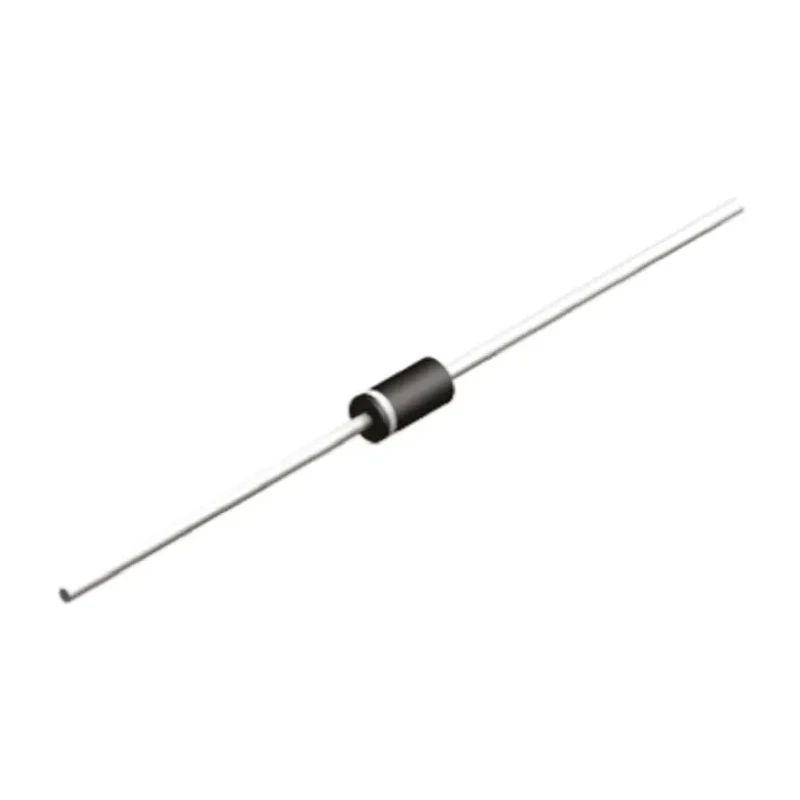

onsemi General Purpose 6.8 V Zener Diode Single 1 W Through Hole 2-Pin DO-41 1N4736ATR

onsemi 1N4736ATR is a high-quality general purpose Zener diode designed for voltage regulation and protection in electronic circuits. It features a nominal Zener voltage of 6.8 V with a tolerance of ±5%, ensuring consistent voltage reference in a wide range of power management applications.

This diode is housed in a DO-41 through hole package with 2 pins, allowing easy integration on printed circuit boards via traditional mounting methods. Its maximum power dissipation of 1 watt makes it suitable for moderate power applications, while the maximum operating temperature of 200°C ensures robust performance in demanding environments.

The device exhibits a low maximum reverse leakage current of 10 microamperes, which helps minimize power loss and improve circuit efficiency. It operates reliably with a test current of 37 mA and maintains a maximum Zener impedance of 3.5 ohms, providing stable voltage regulation under varying load conditions.

Compact physical dimensions including a length of 5.2 mm and height of 2.72 mm allow this diode to fit into many compact electronic assemblies and commercial semiconductor designs.

Typical applications include industrial electronics, power supplies, and signal conditioning circuits where voltage clamping and reference are required. onsemi's 1N4736ATR diode is well suited for use in industrial, commercial, and laboratory electronic setups.

Single diode configuration suitable for voltage regulation applications. Nominal Zener voltage of 6.8 V with a tolerance of ±5%. Maximum power dissipation rating of 1 watt for reliable performance. Constructed with a 2-pin DO-41 through hole package for easy PCB mounting.

Maximum operating temperature of 200°C ensures suitability for industrial environments. Low maximum reverse leakage current of 10 μA contributes to efficiency. Test current at 37 mA ensures stable Zener voltage under load.

Maximum Zener impedance of 3.5 ohms supports precision voltage regulation. Compact dimensions with length 5.2 mm and height 2.72 mm. Explore more onsemi semiconductor products in EnvMart's Electronics & Electricals category for high-quality power management solutions.
