| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 3mm |
| Model | BZX84-B5V1,235 |
| Mount Type | Surface |
| Series | BZX84 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 10mA |
| Maximum Reverse Leakage Current | 2μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 60Ω |
| Typical Voltage Temperature Coefficient | -0.8mV/K |

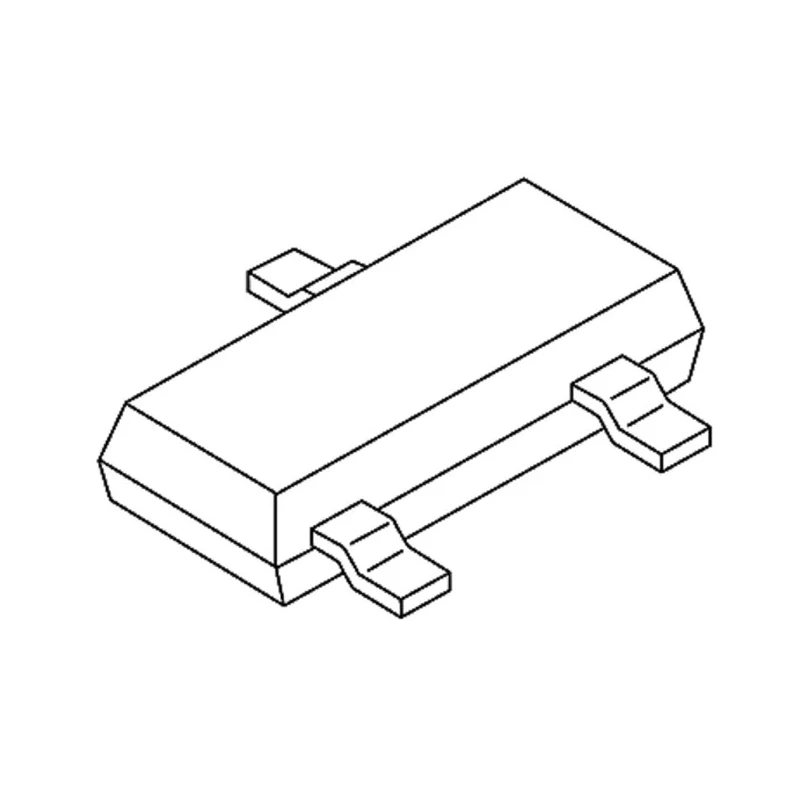

Nexperia BZX84-B5V1,235 is a 5.1 V Zener diode designed as a voltage regulator with a single diode configuration and a surface mount 3-pin SOT-23 package. It provides a maximum power dissipation of 250 mW with a tight voltage tolerance of ±2%, making it ideal for voltage regulation applications in industrial, automotive, and electronic circuit protection systems.
This diode operates over a wide temperature range from -65°C to 150°C, supporting robust performance even in harsh environments. The low typical voltage temperature coefficient of -0.8 mV/K enhances voltage stability in varying thermal conditions. Its compact SOT-23 package makes it suitable for space-constrained PCB applications.
The diode features a maximum Zener impedance of 60 Ω, ensuring consistent regulation, along with minimal reverse leakage current (2 μA) contributing to efficient operation. The device is tested at a current of 10 mA, optimizing for typical regulation scenarios. Additionally, compliance with the AEC-Q101 automotive standard ensures this diode’s reliability in automotive electronic modules.
Designed for precise 5.1 V voltage regulation with ±2% tolerance. Single Zener diode configuration in SOT-23 surface mount package. Maximum power dissipation of 250 mW for reliable operation. Wide operating temperature range from -65°C to 150°C.
Typical voltage temperature coefficient of -0.8 mV/K ensures voltage stability. Low maximum reverse leakage current of 2 μA minimizes power loss. Meets rigorous AEC-Q101 automotive quality standards. Compact size (1.1 mm height, 3 mm length) suitable for PCB assembly.
This Zener diode is ideal for voltage stabilization and protection circuits in industrial, automotive, electronic design, and manufacturing environments. It offers dependable voltage regulation in compact, surface mount form, facilitating advanced electronic device design with effective thermal and electrical reliability.
