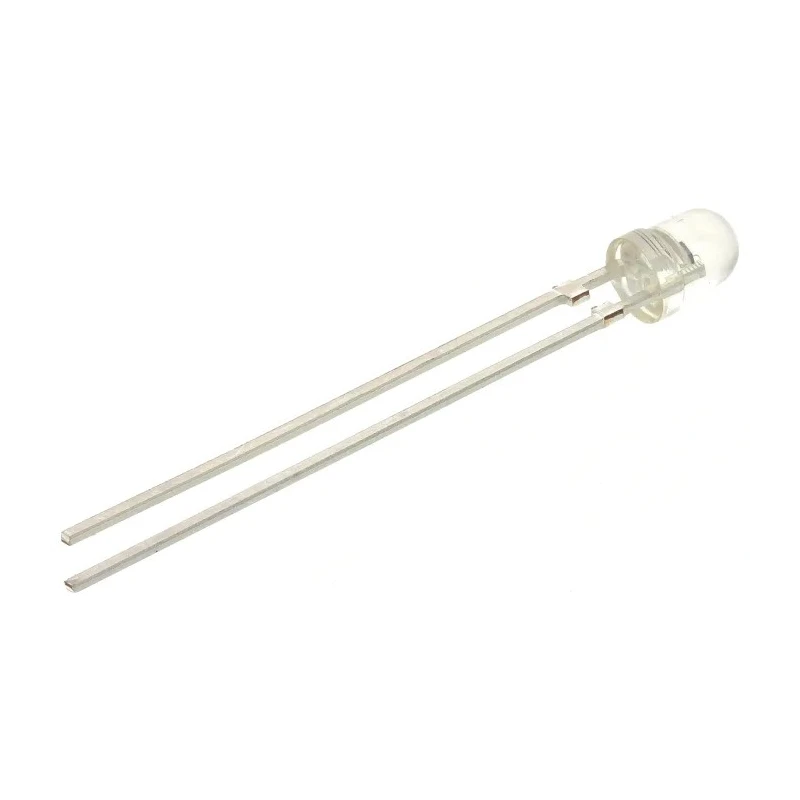

Vishay ±25 ° Infrared, Visible Light Phototransistor Through Hole 2-Pin 3 mm (T-1) Package BPW85
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3mm |
| Brand | Vishay |
| Operating Temperature | -40 to +100 °C |
| Height | 4.5mm |
| Length | 30.3mm |
| Model | BPW85 |
| Packaging | Bulk |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 100°C |
| Package Type | 3 mm (T-1) |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Rise Time | 2μs |
| Typical Fall Time | 2.3μs |
| Peak Wavelength | 850nm |
| Spectrums Detected | Infrared, Visible Light |
| Angle of Half Sensitivity | ±25 ° |
| Collector Current | 50mA |
| Maximum Light Current | 8000μA |
| Maximum Dark Current | 200nA |
| Collector Emitter Voltage | 70V |
| Emitter Collector Voltage | 5V |
Key Features
- Phototransistor detects infrared and visible light with high photosensitivity.
- Operating temperature ranges from -40°C to +100°C for versatile applications.
- Fast response times with typical rise time of 2 μs and fall time of 2.3 μs.
- Features an angle of half sensitivity of ±25 degrees for precise sensing.
- Maximum light current is 8000 μA with maximum dark current of 200 nA.
- Collector current is rated up to 50 mA with collector-emitter voltage of 70 V.
- Through-hole mounting in a clear plastic 3 mm (T-1) package for easy PCB integration.
- RoHS compliant device, ideal for electronic controls and drive circuits.
Product Description
Vishay BPW85 is a high-performance silicon NPN phototransistor designed for detection of infrared and visible light. It comes in a standard 3 mm (T-1) clear plastic package with through-hole mounting using 2 pins, making it suitable for integration into a variety of electronic applications.
This phototransistor exhibits a narrow angle of half intensity of ±25°, ensuring precise and focused light detection. Its fast response times - typical rise time of 2 microseconds and fall time of 2.3 microseconds - enable effective sensing in dynamic environments. The device can operate reliably over a wide temperature range from -40°C to +100°C, which makes it suitable for harsh industrial and automotive applications.
The maximum collector current rating is 50 mA with a collector-emitter voltage of 70 V and an emitter-collector voltage of 5 V, contributing to robust performance in electronic circuit designs. The device shows a maximum light current of 8000 μA and a very low dark current of 200 nA, ensuring high sensitivity and low noise operation.
BPW85 phototransistors are commonly used in electronic control and drive circuits, optical sensors, and other applications requiring reliable light detection. Compliance with RoHS standards ensures environmental safety and quality. The packaging is bulk, allowing for convenient volume usage in production assembly.
Typical industrial use cases include laboratory instrumentation, industrial automation, electronic devices, and HVAC sensors. The compact 3 mm package facilitates integration in PCB assemblies where space is a constraint.
High photo and radiant sensitivity for accurate light detection. Standard 3 mm (T-1) through-hole package with clear lens. Wide operating temperature suitable for industrial environments. Fast switching speeds with microsecond response times.
Low dark current and high maximum light current characteristics. Robust electrical ratings supporting a range of electronic controls. RoHS compliant to meet environmental requirements. Explore Vishay Phototransistors and related optoelectronic components at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -40°C to +100°C, making it suitable for various applications in harsh environments.
The typical rise time is 2 microseconds, and the fall time is 2.3 microseconds, allowing for effective light detection in dynamic conditions.
The maximum collector current is rated at 50 mA, and the collector-emitter voltage can reach up to 70 V, supporting robust performance in electronic circuits.
It features through-hole mounting in a standard 3 mm (T-1) package, facilitating easy integration into PCB assemblies.
The angle of half sensitivity is ±25 degrees, which ensures precise light detection and focused sensing capabilities.
This phototransistor is designed to detect both infrared and visible light, making it versatile for various applications.
The maximum light current is 8000 μA, while the maximum dark current is 200 nA, ensuring high sensitivity and low noise operation.
The height of this model is 4.5 mm, and the diameter is 3 mm, which is standard for T-1 packages.
Yes, this phototransistor is RoHS compliant, ensuring it meets environmental safety standards.
It is commonly used in electronic control and drive circuits, optical sensors, and various industrial applications requiring reliable light detection.
The BPW85 is packaged in bulk, allowing for convenient volume usage in production assembly.
This model features 2 pins, which are standard for its through-hole mounting design.
