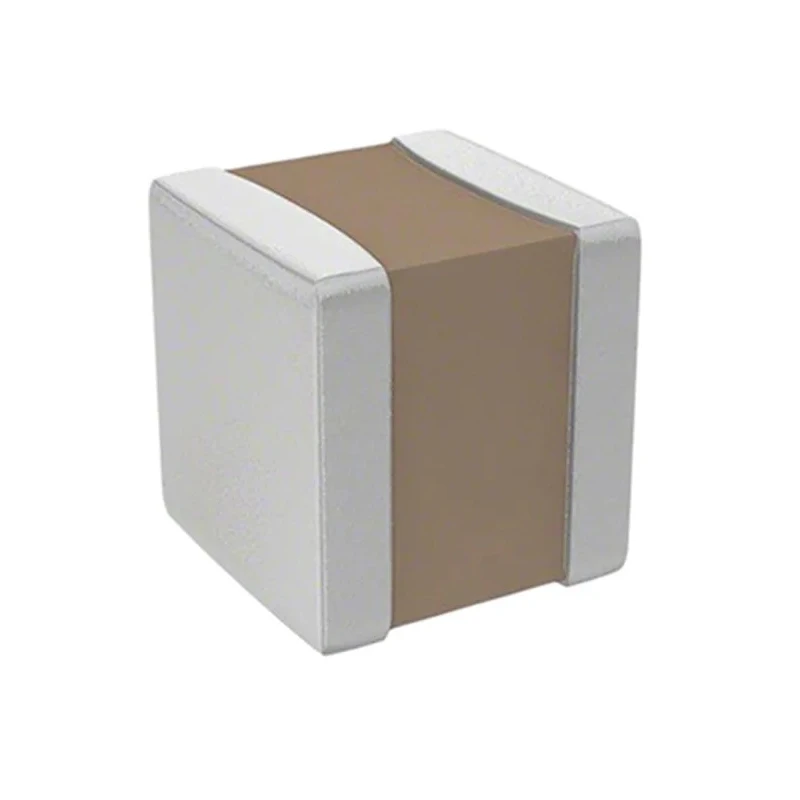

Vishay 0.5 pF Multilayer Ceramic Capacitor 1.5kV dc Surface Mount 1111 Package VJ1111D0R5VXRAJ

Vishay VJ1111D0R5VXRAJ is a high-precision multilayer ceramic capacitor designed for demanding RF power applications, medical MRI coils, and high-frequency electronic circuits. It features a 0.5 pF capacitance with a very tight tolerance of 0.05 pF, operating reliably at 1.5 kV DC voltage.

This capacitor utilises the C0G dielectric material, providing exceptional stability and low losses across a broad temperature range from -55°C to 125°C. The surface mount 1111 package measures 2.98 mm in length, 2.79 mm in width, and 2.59 mm in height, making it suitable for compact printed circuit boards.

The VJ Quad HIFREQ series employs robust Noble Metal Electrode technology and non-magnetic copper terminations, ensuring low inductance and excellent reliability especially for RF and microwave applications such as CATV, UHF amplifiers, mixers, and oscillators.

It meets international standards including RoHS, JEDEC JS709A, and IEC 61249-2-21, ensuring compliance and performance specifications suitable for automotive, industrial, and laboratory electronic systems.

Packaged on a 7-inch reel, this capacitor supports high-volume surface mount assembly processes. The lead-free termination option reflects Vishay’s commitment to environmentally responsible manufacturing.

Surface mount design suitable for compact electronic circuits. Package size 1111 providing easy PCB integration. C0G dielectric ensures ultra-stable performance in RF applications. Capacitance tolerance of 0.05 pF guarantees precision.

Operating temperature range from -55°C to 125°C for wide environmental resilience. RoHS compliant and meets JEDEC JS709A and IEC 61249-2-21 standards. High frequency series ideal for RF power applications and sensitive electronic instruments.

Non-magnetic copper termination with lead-free options available. Reliability ensured with Noble Metal Electrode system. Packaged on a 7-inch reel for efficient automated assembly.

This Vishay multilayer ceramic capacitor is ideal for diverse industrial and laboratory electronics, including telecommunications, broadcasting, medical devices, and precision instrumentation. Browse related Multilayer Ceramic Capacitors in EnvMart’s Electronics Components category for compatible and complementary parts.
