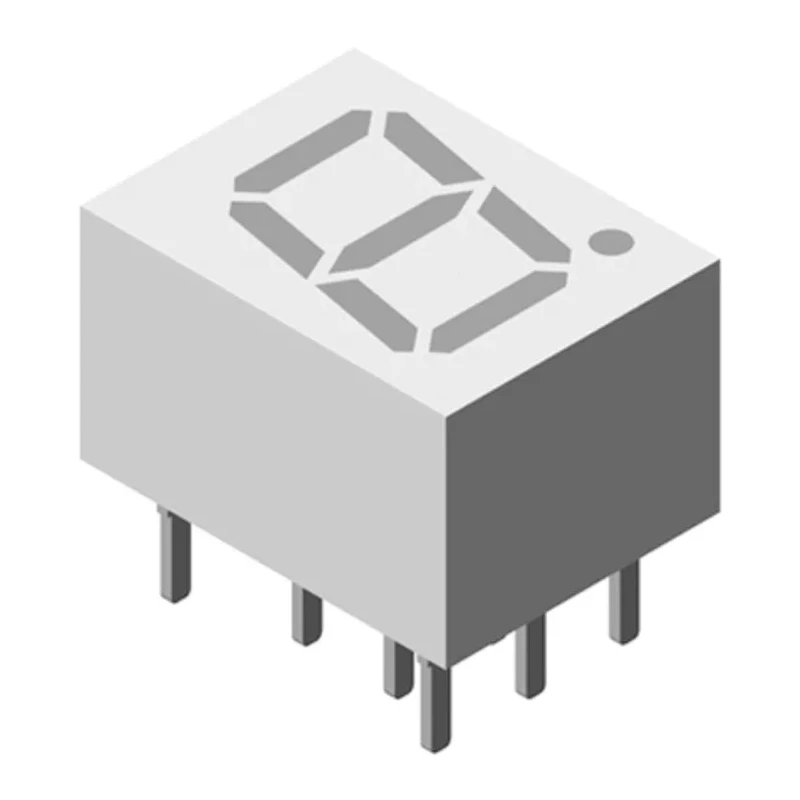

Vishay 1 7 Segment LED Display Anode Green 6mcd Right Side 7 mm TDSG1150
Specifications
| Country of Origin | India |
|---|---|
| Display Type | 7 Segment |
| Brand | Vishay |
| Model | TDSG1150 |
| Mount Type | Through Hole |
| Character height | 7mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 7.4mm |
| External Height | 6mm |
| Power Dissipation | 400mW |
| Luminous Intensity | 6mcd |
| Standards/Approvals | RoHS, IEC, EN, CE |
| LED Colour | Green |
| Dominant Wavelength | 575nm |
| Colour of Face | Grey |
| Forward Voltage | 2.4V |
| Forward Current | 17mA |
| Number of Characters | 1 |
| Character Width | 4.7mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- Single digit 7-segment display designed for easy through-hole mounting.
- Features green LED segments with dominant wavelength of 575nm.
- Character size includes 4.7mm width and 7mm height for clear visibility.
- Common anode connection ensures compatibility with standard circuits.
- Forward voltage rated at 2.4V with a forward current of 17mA.
- Capable of operating from -40°C to a maximum of 85°C ambient temperature.
- External dimensions of 6mm height and 7.4mm width for compact application fit.
- Power dissipation of 400mW allows reliable operation under appropriate conditions.
Product Description
Vishay TDSG1150 1 7 Segment LED Display Anode Green 6mcd Right Side 7 mm is a high-quality single digit display designed for electronic and industrial applications requiring clear numeric visualization. This through-hole mounted component features a green LED display with a luminous intensity of 6 millicandela, which ensures excellent visibility even under challenging lighting conditions.
The display consists of seven segments with a dominant wavelength of 575nm, producing a consistent and vibrant green color output. Each character measures 4.7mm in width and 7mm in height, suitable for compact panel designs or instrumentation readouts. With common anode configuration, it integrates seamlessly into various driving circuits used in electronic devices.
Designed for durability, the TDSG1150 supports operating temperatures from -40°C to 85°C, making it suitable for a range of environments including industrial, manufacturing, and laboratory settings. Its external dimensions of 6mm height and 7.4mm width allow installation in tight spaces where space optimization is critical.
The forward voltage of 2.4V and forward current of 17mA balance power consumption with brightness, while the 400mW power dissipation rating ensures reliable long-term operation. The grey-colored face enhances contrast and readability of the green segments.
Single digit 7-segment LED display for numeric data presentation. Common anode connection type facilitates straightforward integration. Robust temperature range for demanding industrial applications. Compact external size suited for tight panel mounting.
Compliant with RoHS, IEC, EN, and CE standards for safety and environment.
This Vishay LED display module is ideal for electronic equipment, instrumentation panels, measurement devices, and other applications requiring precise numerical display. It supports industrial automation, laboratory instrumentation, and commercial electronic devices where reliable and visible numeric output is essential.
For related LED Display and optoelectronic components, browse EnvMart's extensive catalog featuring Vishay and other leading brands to find compatible modules and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TDSG1150 has a luminous intensity of 6 millicandela, ensuring visibility even in challenging lighting conditions.
This model operates at a forward voltage of 2.4V and a forward current of 17mA.
It can operate in temperatures ranging from -40°C to a maximum of 85°C, making it suitable for various environments.
The TDSG1150 features a common anode connection, which allows for straightforward integration into standard circuits.
The external dimensions are 6mm in height and 7.4mm in width, making it compact for installation in tight spaces.
Each character on the display measures 4.7mm in width and 7mm in height, providing clear visibility for numeric data.
The TDSG1150 is designed for through-hole mounting, suitable for various electronic applications.
The green LED segments have a dominant wavelength of 575nm, producing a vibrant green color output.
This model is compliant with RoHS, IEC, EN, and CE standards, ensuring safety and environmental considerations are met.
The power dissipation rating for the TDSG1150 is 400mW, allowing reliable operation under appropriate conditions.
This display consists of 7 segments, allowing for the presentation of single-digit numeric data.
It is suitable for electronic equipment, instrumentation panels, measurement devices, and other applications requiring clear numeric visualization.
