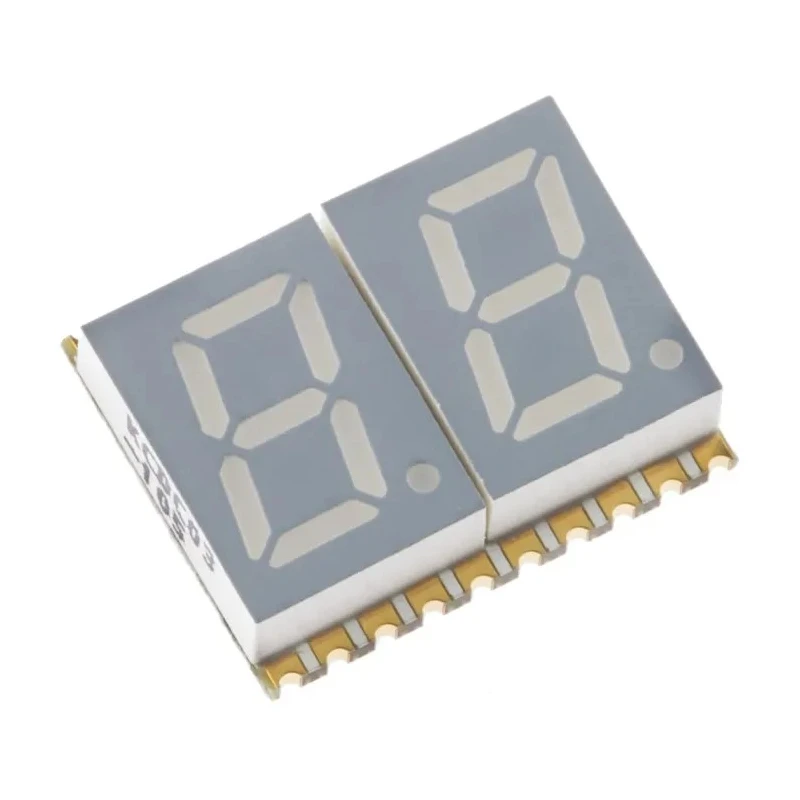

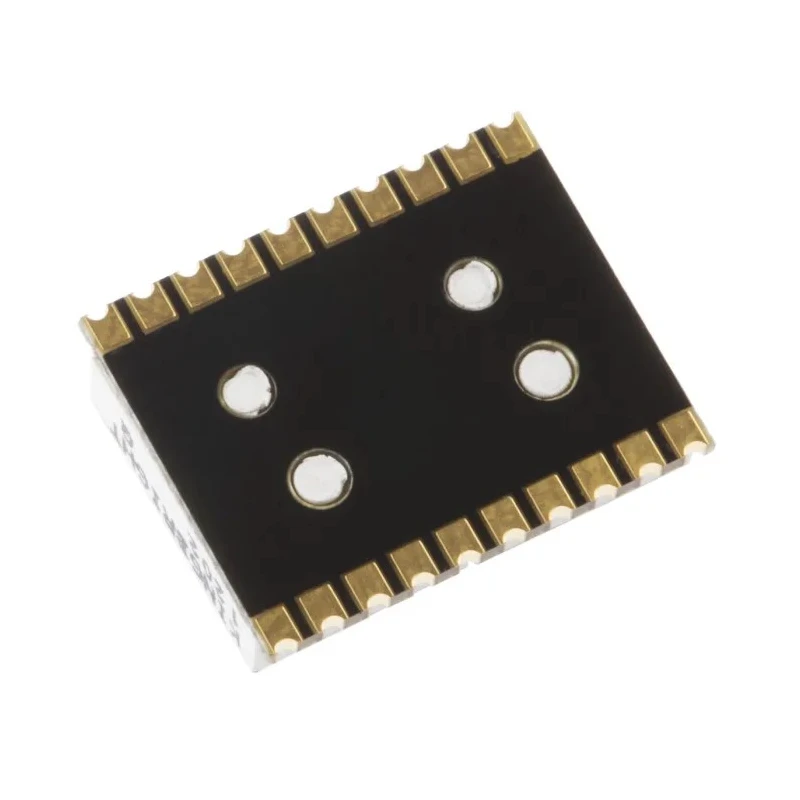

Kingbright Dual Digit LED Display, 2 Digit, 7 Segment, Red, Cathode, 27mcd, Surface Mount, 7.6 mm Character Height KCDC03-105

The Kingbright KCDC03-105 is a high-performance dual-digit 7-segment LED display engineered for electronic, industrial, laboratory, and instrumentation applications requiring clear, reliable numeric presentation. With two digits and a 7-segment format, this display allows precise representation of numbers and characters in compact systems such as meters, counters, panel indicators, and digital readouts.

Featuring a vivid red LED emission with a dominant wavelength of 630 nm and a luminous intensity of 27mcd, the KCDC03-105 delivers exceptional visibility even in demanding environments. Its character height of 7.6 mm and width of 4.2 mm ensure legibility in both desktop and field device settings, while the grey face with white segments enhances contrast for easy reading.

The display operates using a common cathode configuration and is designed for surface mounting, facilitating straightforward assembly on printed circuit boards in production lines or custom electronics. Its right side decimal orientation, along with mechanical ruggedness, offers flexibility for diverse engineering requirements.

Operating within a wide ambient temperature range from -40°C to 85°C, the KCDC03-105 is suited for harsh industrial and laboratory conditions. It achieves low power dissipation of 75mW and supports a forward current up to 30mA, making it compatible with standard driver ICs and microcontrollers.

Typical use cases include industrial control panels, laboratory instruments, digital timers, measuring equipment, HVAC displays, process monitoring, and embedded system user interfaces. Its RoHS compliance ensures safety in environmentally conscious applications.

Key features such as easy mounting onto PC boards or sockets, categorized luminous intensity, and robust construction further highlight its utility for electronic system builders and integrators. This display is supplied in standard packaging ready for production assembly; no additional accessories are required.

Dual digit 7-segment red LED display with common cathode configuration. Designed for surface mount installation on electronic circuit boards. Provides excellent visibility and reliable numeric readout in industrial, laboratory, and commercial applications.

Wide temperature tolerance and RoHS compliance for global and environmentally sensitive projects. Mechanical durability, efficient power usage, and easy PCB integration. Browse more LED Display solutions and precision electronic display modules from Kingbright and EnvMart's comprehensive Electronics Components catalog.
