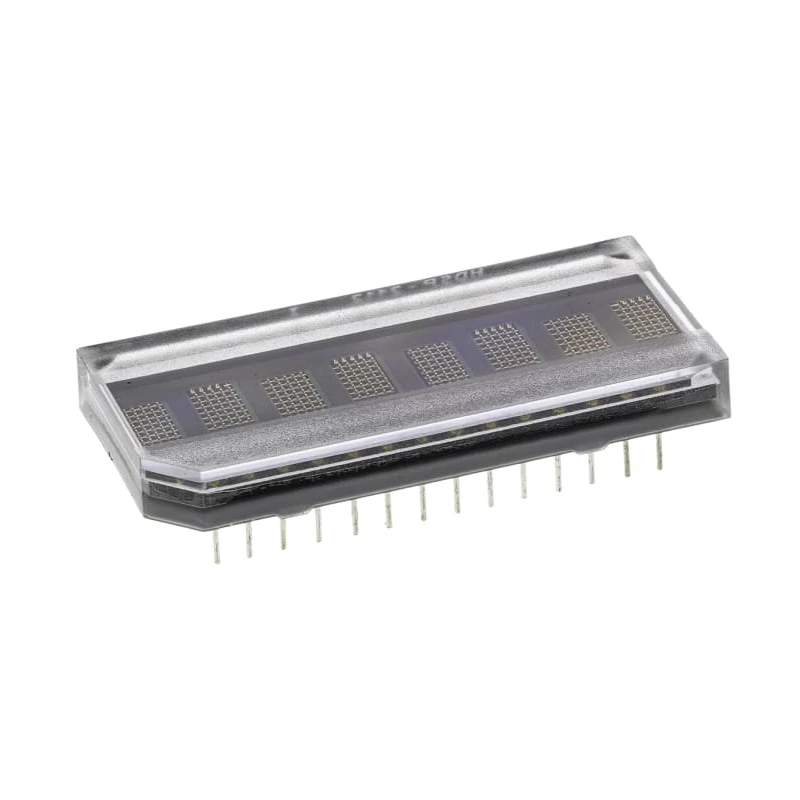

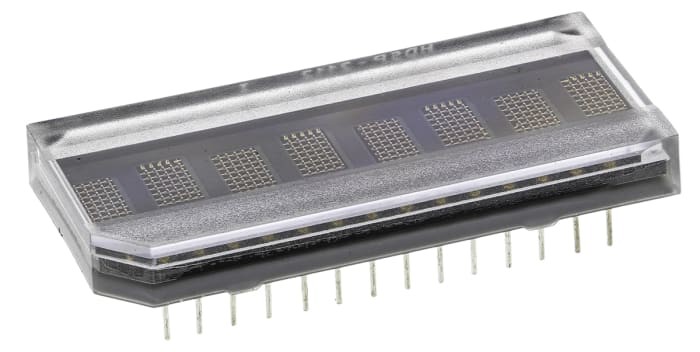

Broadcom 8-Digit Dot Matrix LED Display, Red 7.5mcd, 4.8mm Character Height, Through-Hole HDSP-2112

The Broadcom HDSP-2112 is an advanced 8-digit dot matrix LED display designed for precise alphanumeric output in demanding electronic and industrial environments. Engineered with a 5x7 matrix configuration per digit, it allows for programmable presentation of numbers, letters, and symbols across robust industrial systems.

Offering bright red LED outputs with a luminous intensity of 7.5mcd and a dominant wavelength of 626nm, the display delivers exceptional visibility and consistent performance. Each character features a 4.8mm height and 2.7mm width, making it suitable for space-conscious panels and portable devices. The black face panel helps reduce reflections and ambient glare, enhancing readability under various lighting conditions.

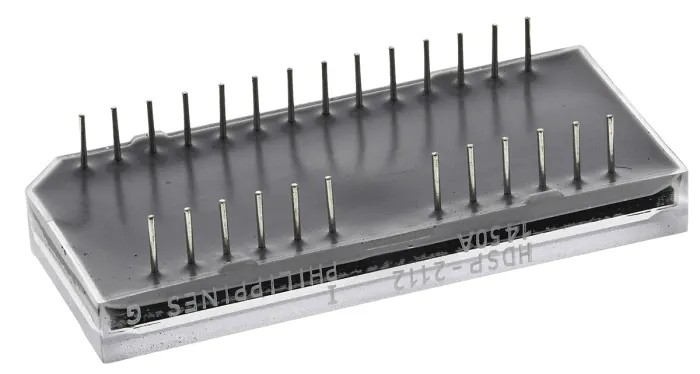

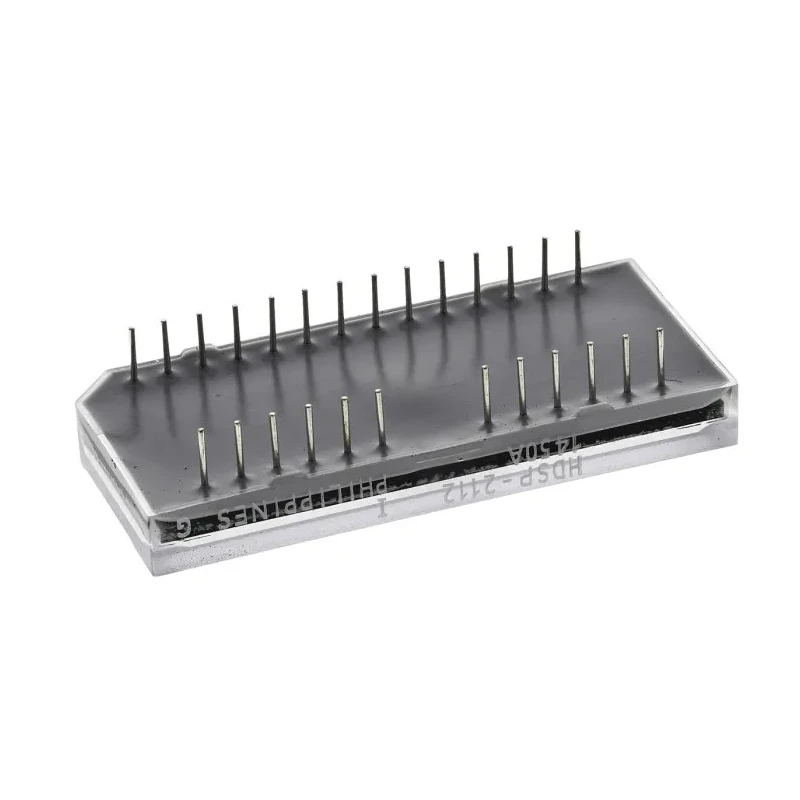

Designed for standard through-hole PCB mounting, the display incorporates a 28-pin dual-in-line package, ensuring quick integration into new or existing systems. Its programmable interface supports the full 128 ASCII character set along with 16 user-definable characters. Multi-level dimming and blanking functions offer flexibility for visual ergonomics, enabling users to adjust output to suit environment and application needs, while the microprocessor bus interface supports efficient control and updates.

Operating reliably across a wide temperature range from -45°C to 85°C, the HDSP-2112 is suitable for environments such as industrial instrumentation, test equipment, telecommunications, computer peripherals, and portable data entry devices. The robust electrical characteristics include a forward voltage of 5.5V and a forward current up to 300mA, further ensuring stable performance throughout the device’s operational lifespan.

The display’s construction meets RoHS, CSA, UL 1577, IEC/EN/DIN EN 60747-5-5 standards, emphasizing safety and compliance for regulated installations. The HDSP-2112 is X-stackable for scalable display layouts and supports multi-unit and custom applications.

Practical use cases extend across industrial instrumentation panels, laboratory analyzers, test and measurement systems, telecommunications interfaces, commercial digital signage, and portable data collection tools. Its versatile format, reliability, and programmability make it a preferred solution for engineers and integrators seeking high-performance dot matrix LED displays.
