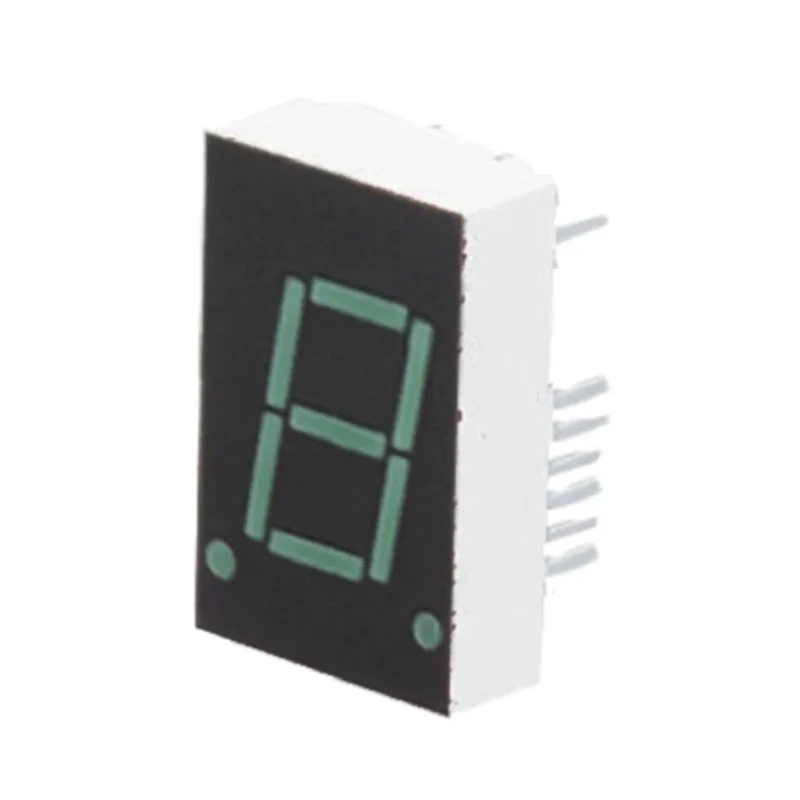

Broadcom 1 7 Segment LED Display Anode Green 1.96mcd Right Side 20.3mm HDSP-8601

Broadcom HDSP-8601 is a single-digit 7-segment LED display designed with a green LED color and an anode common connection configuration. It features a character height of 20.3mm and a character width of 11.1mm, ideal for clear numeric display in various electronic devices. The display’s luminous intensity of 1.96mcd combined with its grey face color provides excellent visibility and contrast for industrial, commercial, and laboratory applications.

This 7-segment display uses a through-hole mounting type making it suitable for circuit boards requiring robust mechanical fixing. The device operates efficiently with a forward voltage of 2.6V and a forward current of 30mA, withstanding minimum and maximum operating temperatures of -40°C and 100°C respectively, ensuring reliability even in harsh conditions.

The external dimensions are compact with a width of 20mm, height of 27.7mm, and depth of 8.4mm, making it well-suited for embedded electronic systems and display modules in automation, control systems, and instrumentation. The right side decimal orientation facilitates displaying measurements and numeric data with decimal points.

Single-digit 7-segment Green LED display. Common anode with through-hole mount for stable installation. Character dimensions: 11.1mm width and 20.3mm height. Operating temperature range of -40°C to 100°C suited for industrial environments.

Luminous intensity of 1.96mcd ensures clear visibility. Operates at 2.6V forward voltage and 30mA forward current. Compact external size: 20mm x 27.7mm x 8.4mm. Grey face color offers good contrast with green illuminated segments.

Decimal point orientation on right side.

This Broadcom LED display is ideal for use in electronic components, display modules, measurement devices, and any application requiring clear numeric segment display. It complies with RoHS standards ensuring environmental safety. For more choices, browse the LED Display category at EnvMart.
