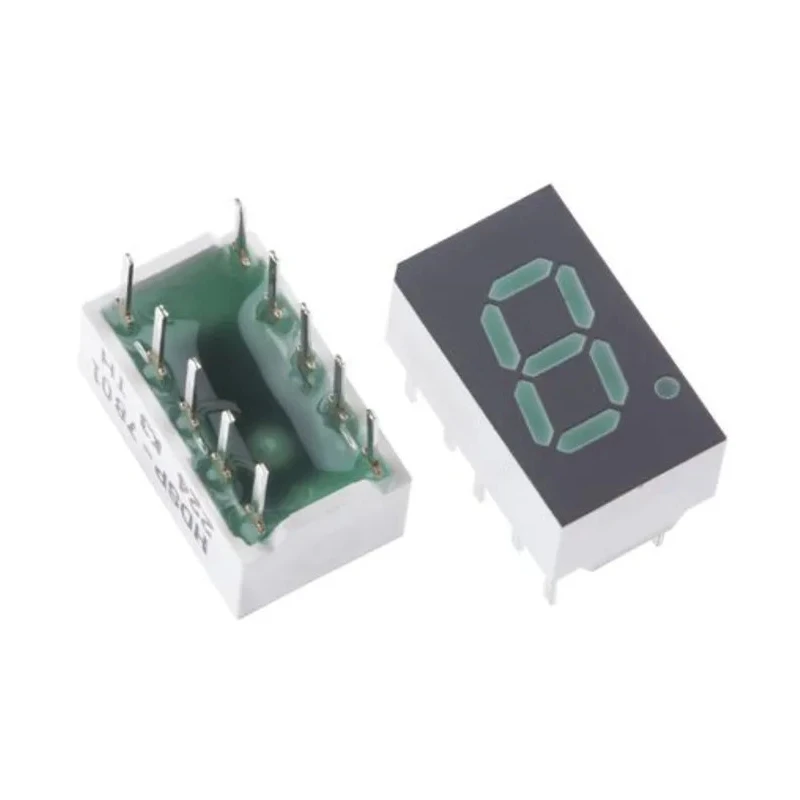

Broadcom 1 Character 7 Segment Green LED Display 7 Segments Anode Surface Mount Right Side Decimal Orientation HDSP-A901

Broadcom HDSP-A901 is a high-quality 1 character 7 segment LED display designed for precise visual numeric indication in electronic circuits and industrial applications. Featuring a green LED with a luminous intensity of 475μcd and a dominant wavelength of 571 nm, this display ensures excellent visibility even in varied lighting conditions.

This surface-mounted device employs an anode common connection and includes seven distinct segments for flexible numeric display with right side decimal point orientation. The character size is engineered for compact installations, offering a width of 4.2 mm and a height of 7.6 mm, fitting within an external package size of 7.6 mm width, 12.7 mm height, and 6.1 mm depth.

Operating temperature ranges from -40°C up to 100°C, allowing dependable performance in harsh and varying industrial environments. Power dissipation is minimized with a forward voltage of 1.9 V and forward current of 4 mA, translating to low energy consumption of 64 mW.

The display features a grey faceplate for enhanced contrast and is certified compliant with RoHS directives, ensuring environmentally safe components. It is ideal for integration into electronic assembly lines, instrumentation, laboratory equipment, control panels, and embedded systems requiring numerical display with green LED illumination.

The display offers precise character visualization with a 7 segment layout and decimal orientation on the right side. Robust surface mount technology enables efficient PCB assembly and soldering. Low power and voltage specifications make it suitable for battery-powered and low-energy devices.

Wide operating temperature range supports usage in industrial, laboratory, and commercial environments. RoHS compliance guarantees environmentally responsible manufacturing standards. Compact form factor allows usage in dense circuit board configurations.

Green color LEDs provide clear and bright numeric display for easy readability.

This Broadcom HDSP-A901 LED display is a reliable component designed to meet diverse application needs in electronics manufacturing, instrumentation, and display modules. Explore EnvMart’s extensive selection of electronics components for compatible parts and accessory options to complement this LED Display unit.
